HYDRAULICS
8E-33

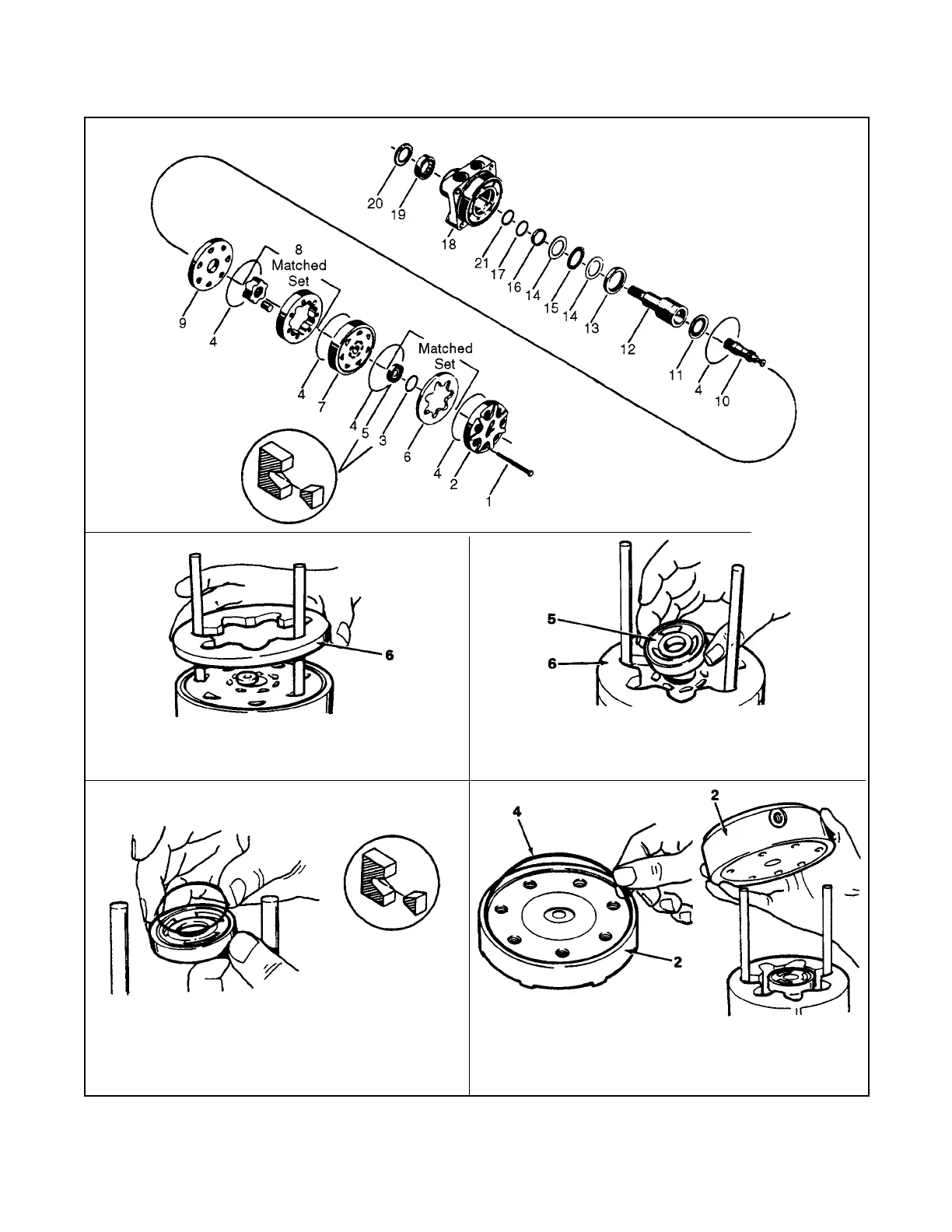

Figure 8E-16. Traction Motor Reassembly (5 of 6)
Step 16
Install commutator ring (6).
Step 17
Install new seal ring (3) to commutator (5).
Step 18
Install commutator (5) in commutator ring (6).
Step 19
Apply a small amount of grease to
seal ring (4) and install on end
cover (2). Install end cover (2).
