Textron Jacobsen 600 Series User Manual

HYDRAULICS
8E-32

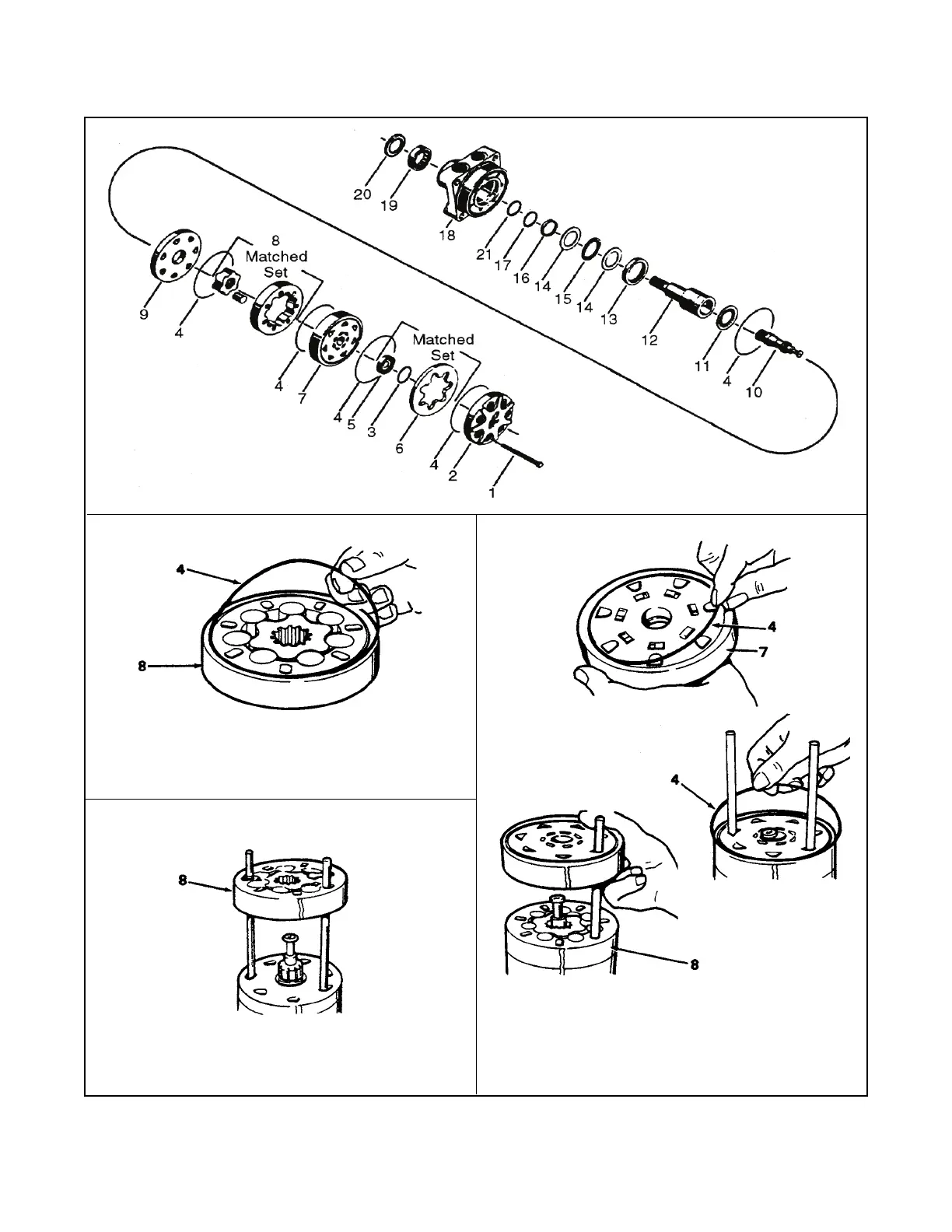

Figure 8E-15. Traction Motor Reassembly (4 of 6)
Step 13
Apply a small amount of grease to seal
ring (4) and install on rotor set (8).
Step 14
Install rotor set (8).
Step 15
Apply a small amount of grease to seal rings
(4) and install on each side of manifold (7).
Install manifold (7) to rotor set (8).
