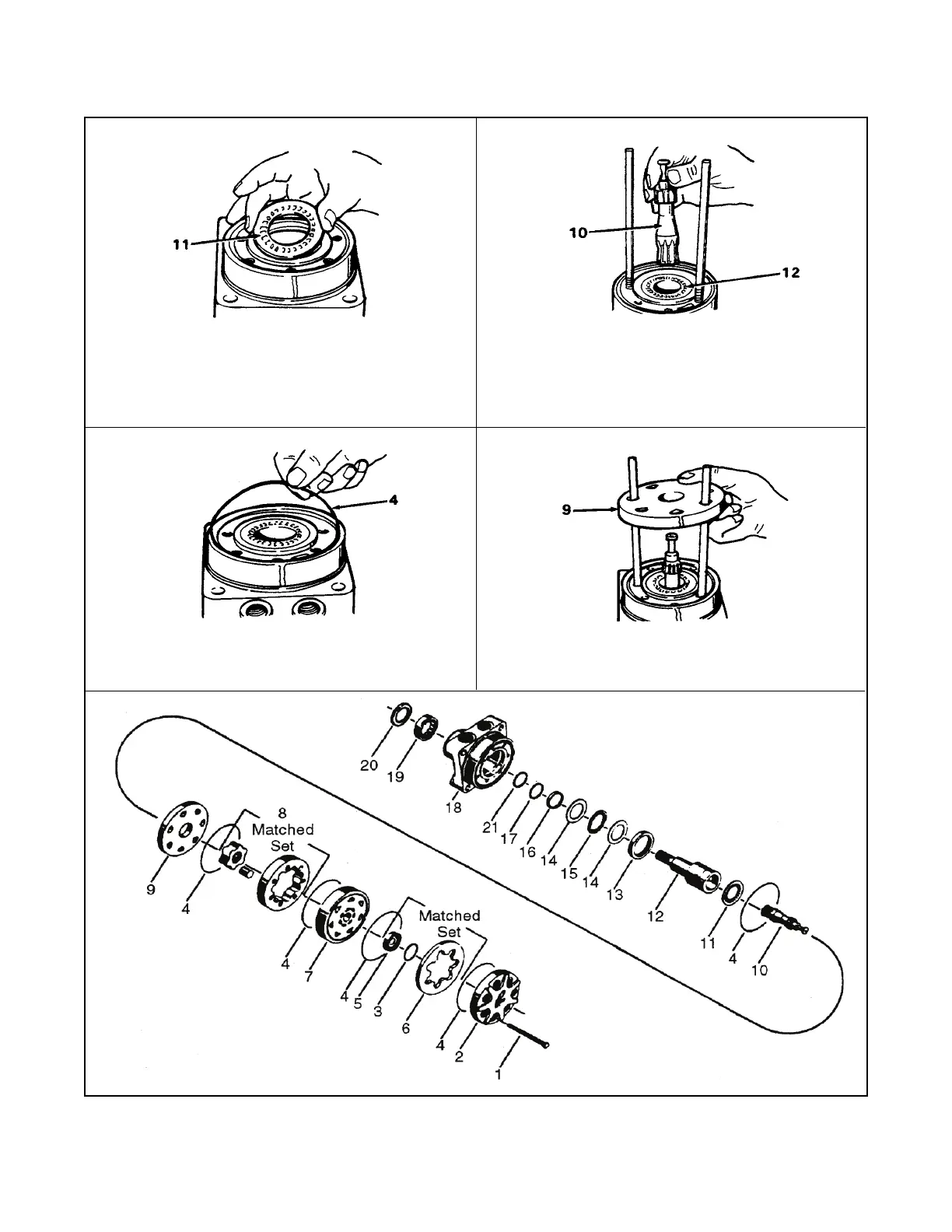

Figure 8E-14. Traction Motor Reassembly (3 of 6)
Step 9
Install thrust bearing (11).
Step 10
Lightly grease seal ring (4) and install.
Step 11
Align match marks and install drive link (10),
with long splined end down, into mesh with
coupling shaft (12).
Step 12
Install wear plate (9).
