HYDRAULICS
8E-30

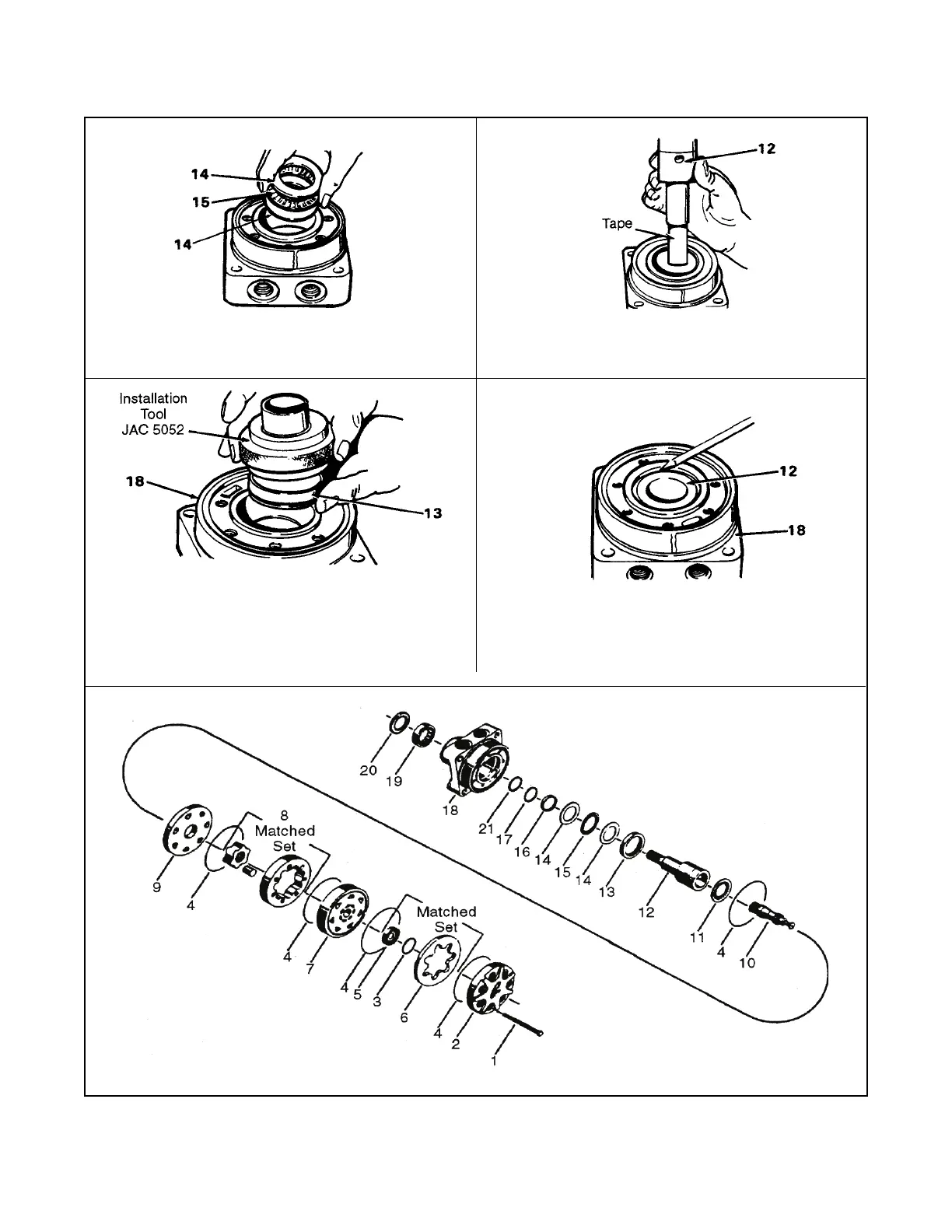

Figure 8E-13. Traction Motor Reassembly (2 of 6)
Step 5
Install new thrust washer (14) and bearing (15).
Step 6
Press bearing assembly (13) into housing (18)
using installation tool. Press to a depth of
0.105 to 0.125” (2.67 to 3.2 mm) below wear
plate contact face.
Step 7
Tape spline of coupling shaft (12) and install.
Step 8
Check to see that the coupling shaft (12) is
0.10” (2.54 mm) below housing surface (18).
