Textron Jacobsen 600 Series User Manual

HYDRAULICS
8E-29

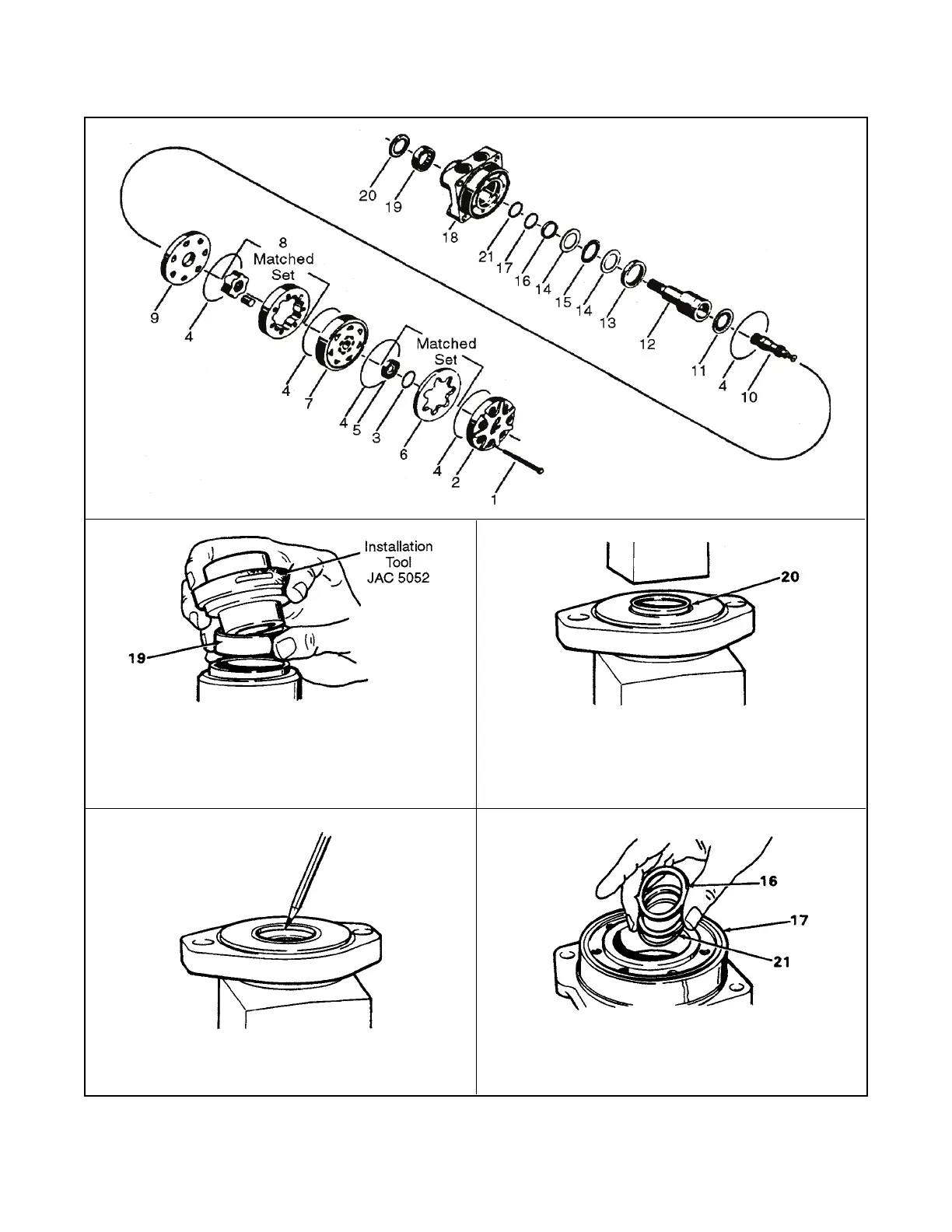

Figure 8E-12. Traction Motor Reassembly (1 of 6)
Step 1
NOTE: Pack bearing with grease.
Press bearing (19) into housing using
installation tool.
Step 2
Check bearing depth 0.290 to 0.310” (7.4 to 7.8 mm).
Step 3
Install seal (20) so it is flush with housing.
Step 4
Install backup washers (21 and 17), seal (16)
(lip facing out).
