Textron Jacobsen 600 Series User Manual

OPTIONS
13D-8

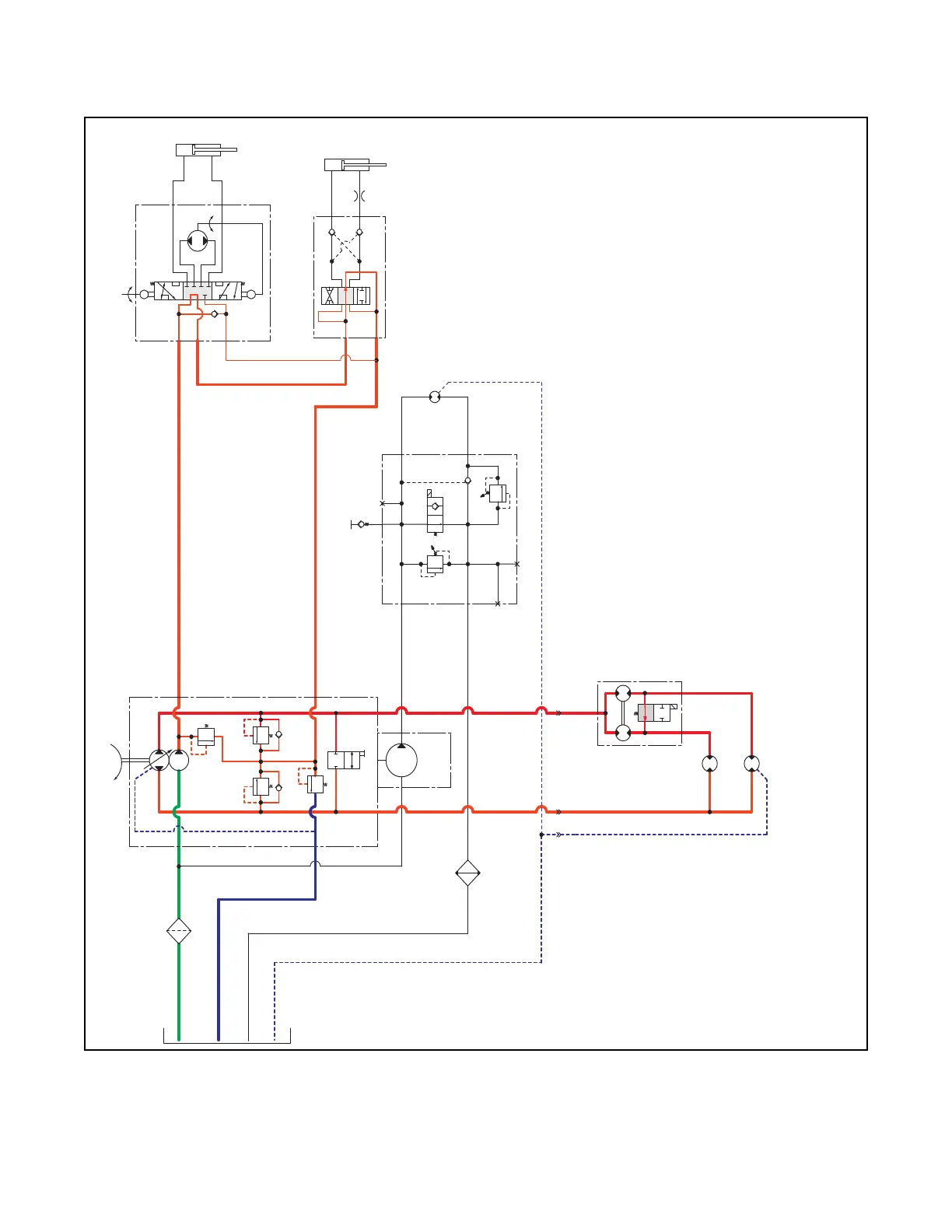

Figure 13D-2. Differential Lock Off
1.01 ci
3625 psi
3625 psi
58 psi
1.35 ci
3100
RPM
A
IN
OUT
Case Drain
B
Gear
Pump
10
Micron
Steering
Valve
In
In
AB
Aux Out
PTC
C
G
G
M1 M2
Out
RT LT
6.6 ci
.070
3200 psi
300
psi
1.27 ci
11.9 ci
11.9 ci
LF
Wheel
Motor
Flow Divider Valve
RF
Wheel
Motor
69168 2WD Units with Optional
Dierential Lock Kit - “OFF”
Deck
Valve
Lift
Valve
Lift
Cylinder
Oil
Filter
Oil
Cooler
Steering
Cylinder
915 psi
.425 ci
