ACCESSORIES AND MISCELLANEOUS REPAIR
4252490-Rev A 9-19
9
Work Light
Removal and Installation
See Figure 9-41.
NOTE
Right work light is shown; left work light is similar.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable from the
battery.

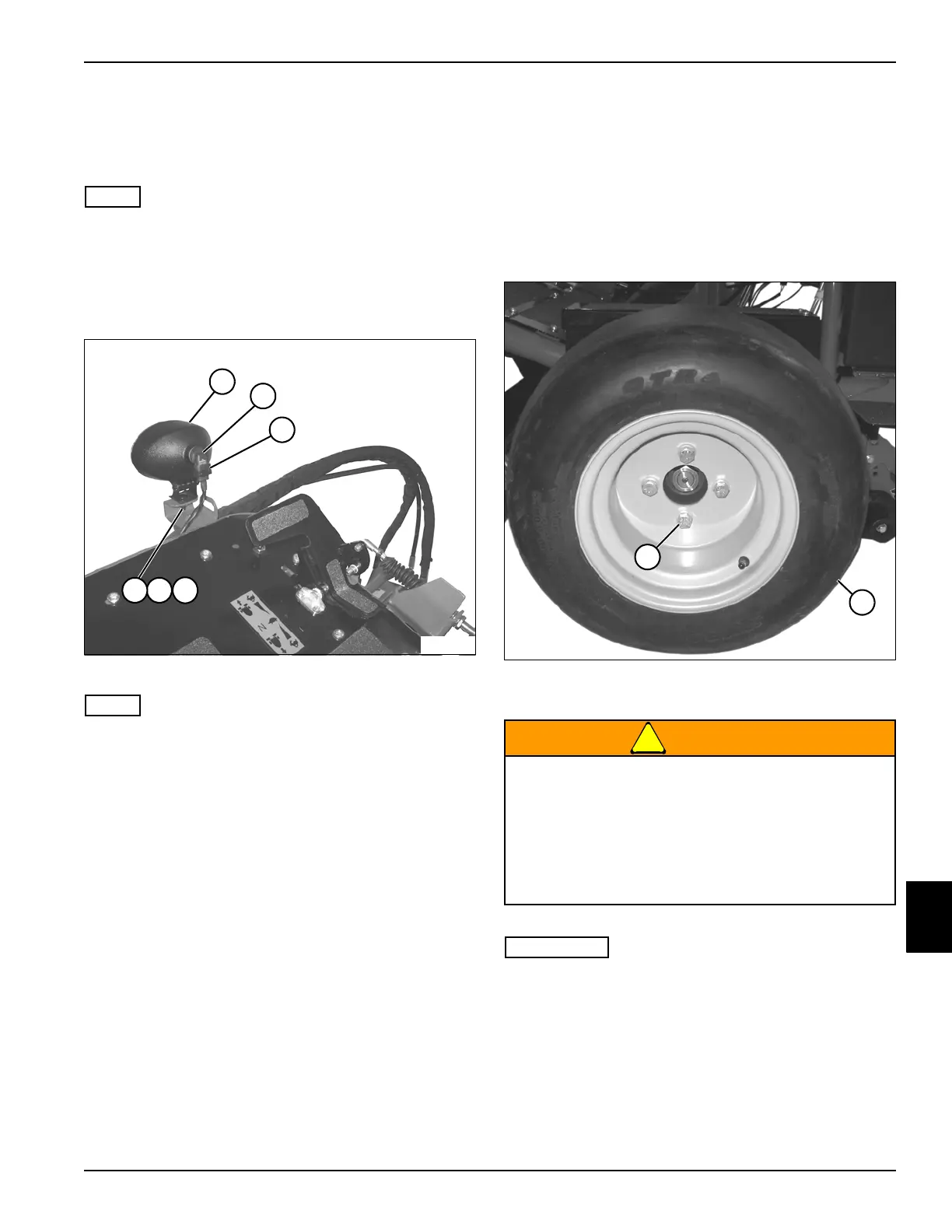

Figure 9-41
NOTE
Label all wires before disconnecting to ensure correct
installation.
3. Disconnect wire connector (3).
4. Remove nut (4), lock washer (5), and screw (6).
5. Remove work light (1).
6. To replace bulb, rotate bulb (2) counterclockwise at
wire connector end, until bulb stops. Pull bulb straight
out to remove.
Installation Notes
• Install work light bulb and work light by reversing the
order of removal.
• Apply dielectric grease (Jacobsen PN 365422) to any
wire connectors disconnected.
• Adjust work lights to project desired distance in front
of the mower.
Front Wheel
Removal and Installation
See Figure 9-42.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Block each side of rear wheel using suitable wheel
blocks.
Figure 9-42
3. Loosen, but do not remove, four mounting bolts (2).
!
WARNING
IMPORTANT
It is important to lift and support the machine, or the
machine will move.
4. Raise and support front of machine with jackstands.
5. Remove four mounting bolts (2).
6. Remove wheel (1) and inspect tread area for tears or
other damage.
7. Replace tire if damage is excessive.
3
1
54
6
2
TN3660
• Support the machine using properly rated
jackstands. Never work under a machine
supported only by a jack.
• Do not use wood or concrete blocks to
support the machine. Failure to properly
support the machine may result in death or
serious injury.
2
1
TN3721
