ELECTRICAL
4252490-Rev A 4-63
4
Fuel Shutoff Solenoid
Removal and Installation
See Figure 4-62.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Raise hydraulic oil/fuel tank. (See “Raise Hydraulic
Oil/Fuel Tank” on page 9-4.)

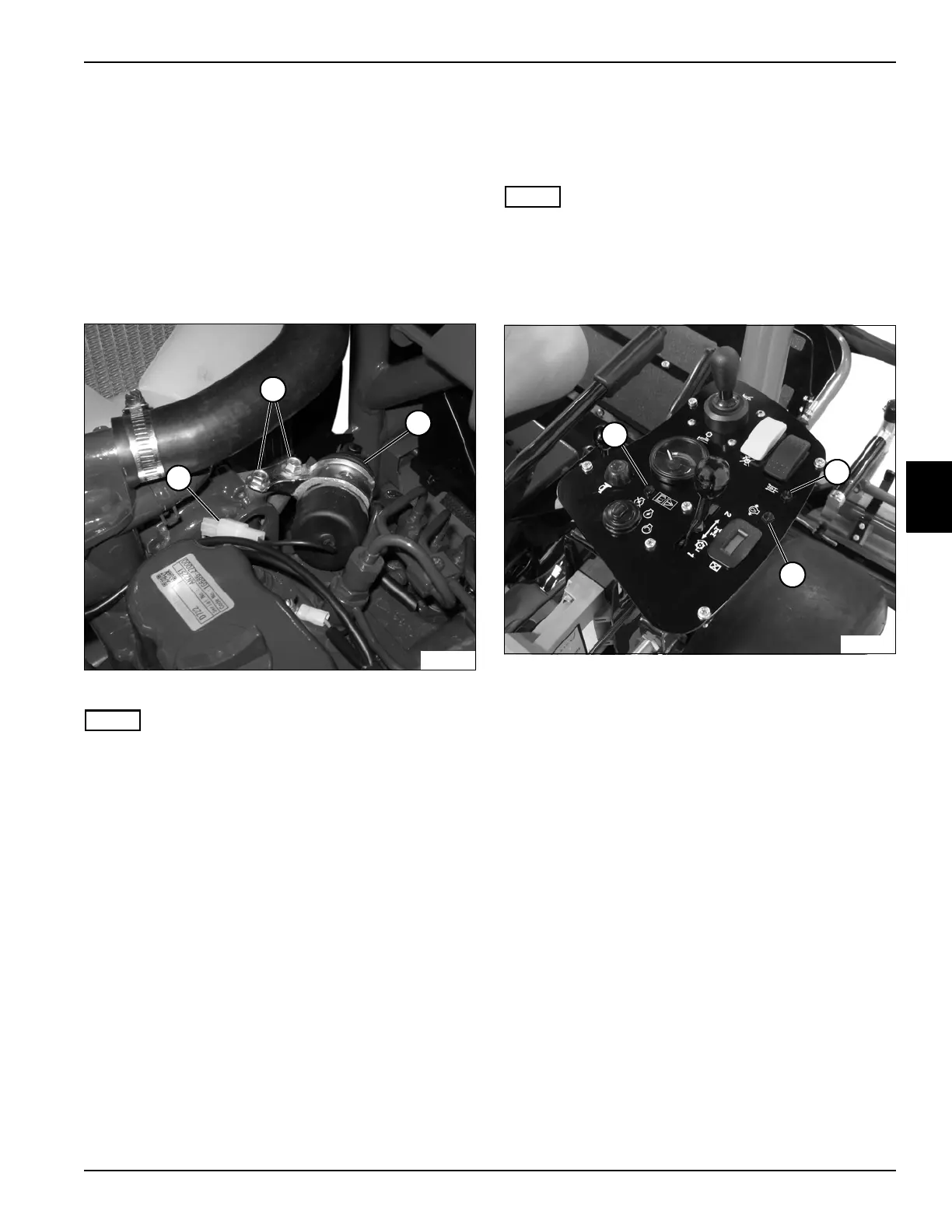

Figure 4-62
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Disconnect wire connector (1).
5. Remove two screws (2).
6. Remove fuel shutoff solenoid (3).
Installation Notes
• Apply dielectric grease (Jacobsen PN 365422) to any
wire connectors disconnected.
• Use new cable ties to secure wire connectors and
wire harness.
• Install fuel shutoff solenoid by reversing the order of
removal.
Warning Lights
Removal and Installation
See Figures 4-63 and 4-64.
NOTE
This procedure applies to the following warning lights:
• Alarm light (1)
• Engine oil pressure light (3)
• Hydraulic oil pressure light (2)
Figure 4-63
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Remove instrument panel cover. (See “Instrument
Panel Cover” on page 9-13.)
4. Remove instrument panel. (See “Instrument Panel”
on page 4-52.)
TN3872
1
2
3
TN3884
2
1
3
