9-16 4252490-Rev A
ACCESSORIES AND MISCELLANEOUS REPAIR
9

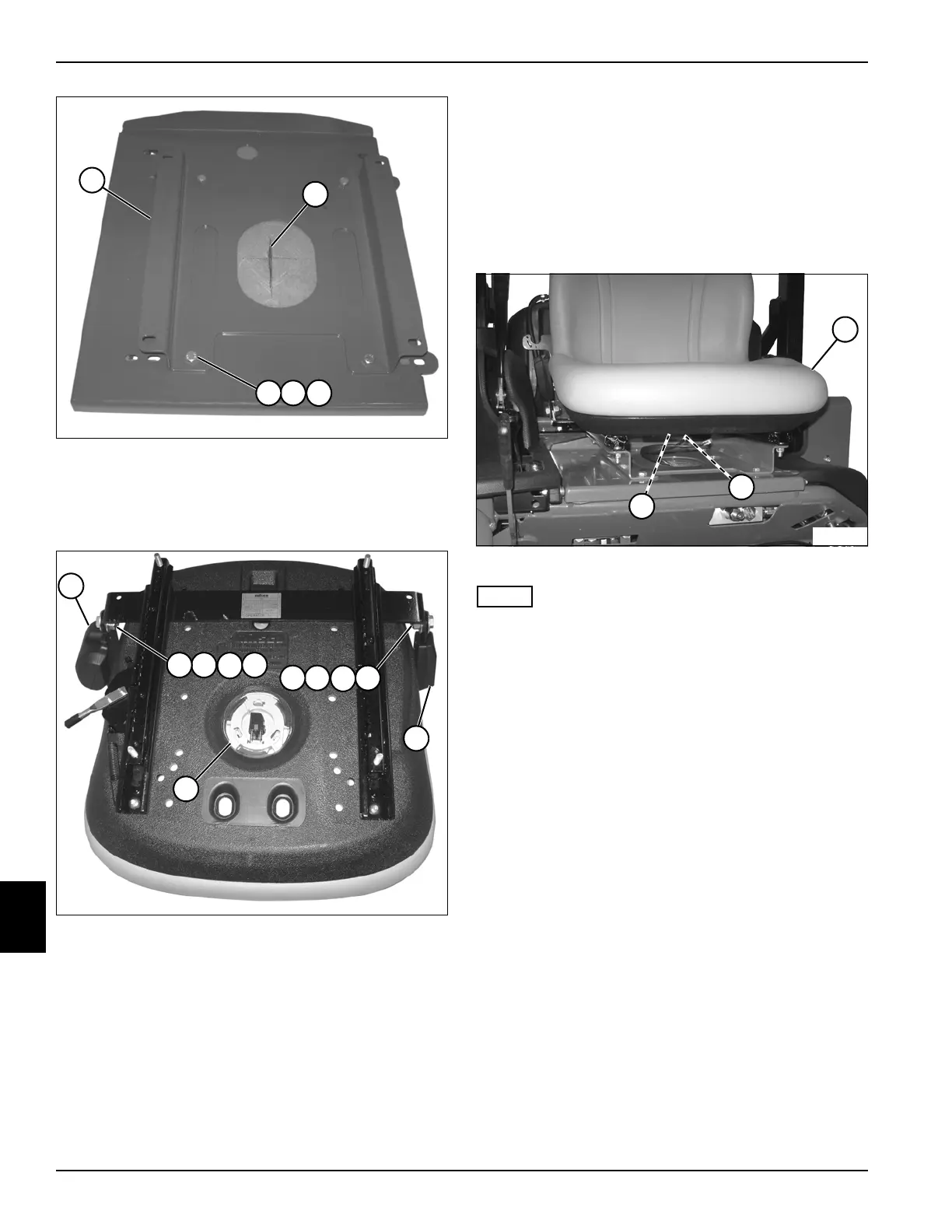

Figure 9-32
2. Remove four screws (6), flat washers (7), and nuts
(8), and remove seat mount (4).
3. Remove acoustic foam (5).
Figure 9-33
4. Remove nut (10), flat washers (11 and 12), screw
(13), and seat belt (9).
5. Remove nut (14), flat washers (15 and 16), screw
(17), and seat belt latch (18).
6. Remove seat switch (19) by turning
counterclockwise.
Assembly Note
Assemble seat and seat plate by reversing the order of
disassembly.
Seat Switch
Removal and Installation
Standard Seat
See Figure 9-34.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 9-34
NOTE
Label all wires before disconnecting to ensure correct
installation.
2. Disconnect the seat switch wire connector (2).
3. Remove seat switch (3) by turning counterclockwise.
Installation Notes
• Install seat switch by reversing the order of removal.
• Apply dielectric grease (Jacobsen PN 365422) to any
wire connectors disconnected.
4
5
76
8
TN3768
1110
12
13
1514
16
17
9
18
19
TN3770
2
1
3
TN3659
To Next Page
