ACCESSORIES AND MISCELLANEOUS REPAIR
4252490-Rev A 9-11
9

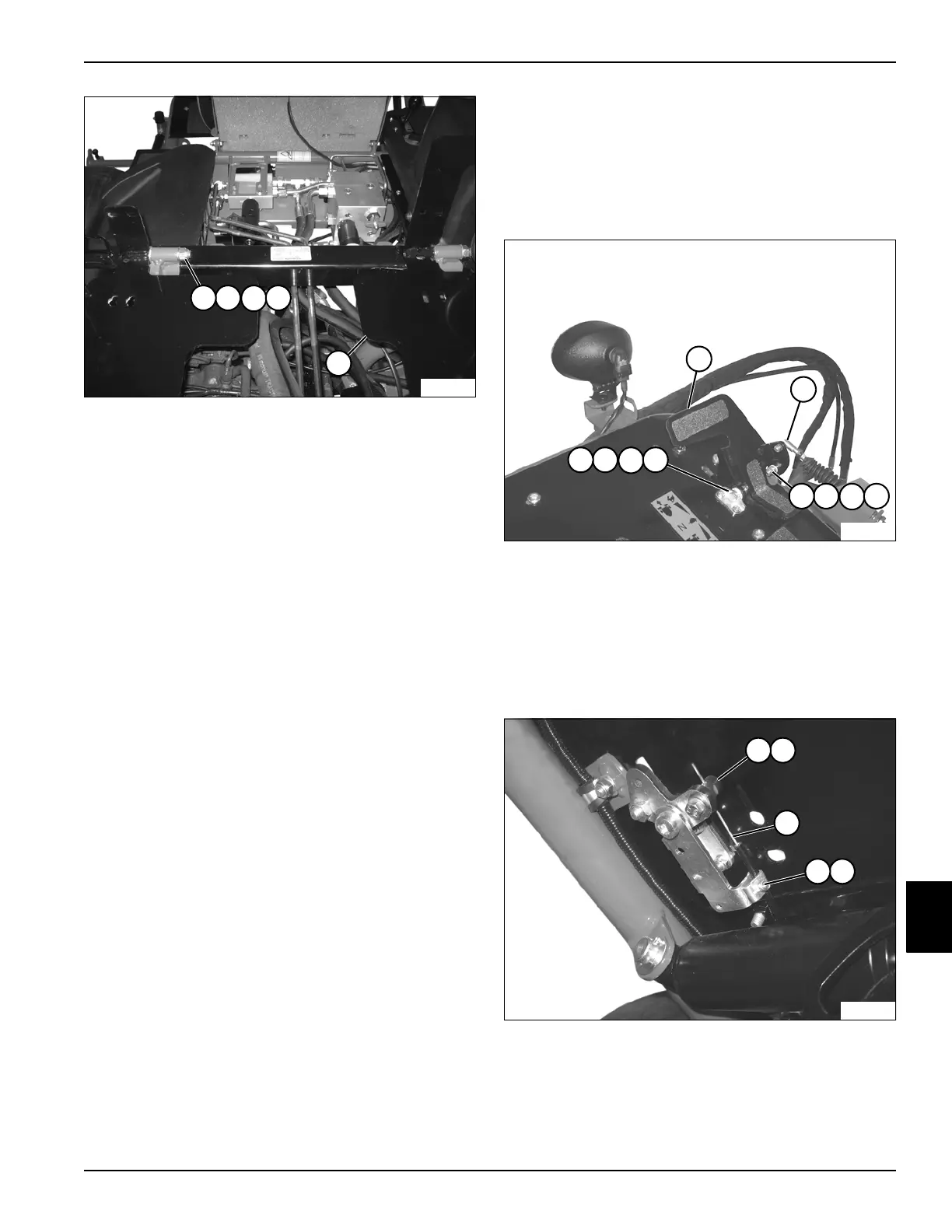

Figure 9-18
6. Remove two nuts (6), flat washers (7), flat washers
(8) and nylon bearings (9), and remove fuel tank
support pan (10).
Installation Note
Install fuel tank support pan by reversing the order of
removal.
Traction Pedal Assembly
Removal and Installation
See Figures 9-19 through 9-22.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 9-19
2. Disconnect rod (2).
3. Remove nut (3), steel bushing (4), nylon bearing (5),
and screw (6).
4. Remove screw (7), nylon bearing (8), steel bushing
(9), and nut (10).
5. Remove traction pedal (1).
Figure 9-20
6. Loosen screw (11) and cable clamp (12).
7. Loosen screw (14) and nut (15).
8. Disconnect mow speed cable (13).
10
76
8
9
TN3845
1
2
43
5
6
87
9
10
TN3660
13
1514
1211
TN3746
To Next Page
