Textron JACOBSEN GP400 Technical/Repair Manual

ACCESSORIES AND MISCELLANEOUS REPAIR
4252490-Rev A 9-17
9

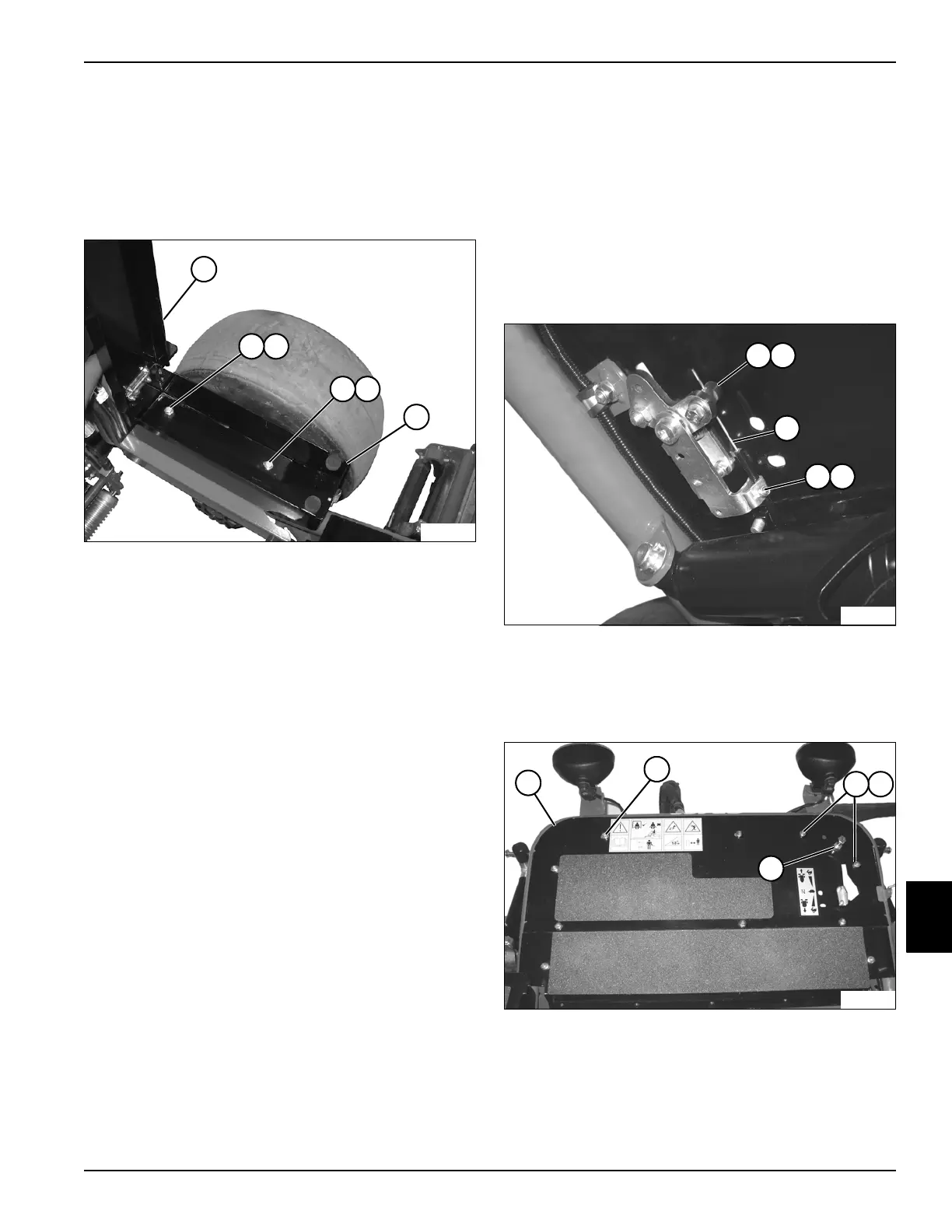

Tool Box
Removal and Installation
See Figure 9-35.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 9-35
2. Raise tool box cover (1).
3. Remove screws (2) and flat washers (3).
4. Lower tool box cover (1) and remove tool box (4).
Installation Note
Install tool box by reversing the order of removal.
Floorboard Assembly
Removal and Installation
See Figures 9-36 through 9-39.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove splash shield. (See “Splash Shield” on
page 9-18.)
3. Remove traction pedal. (See “Traction Pedal
Assembly” on page 9-11.)
Figure 9-36
4. Loosen screw (1) and cable clamp (2).
5. Loosen screw (4) and nut (5).
6. Disconnect mow speed cable (3).
Figure 9-37
7. Remove transport speed stop (10).
8. Remove screws (8) and nuts (9).
9. Remove six screws (7).
10. Remove upper floorboard (6).
32
32
1
4
TN3663
3
54
21
TN3746
6
7
98
10
TN3750
