6-58 4252490-Rev A
HYDRAULICS
6
Hydraulic Oil Tank (Gasoline)
Removal and Installation
See Figures 6-73 and 6-74.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable from the
battery.
3. Drain hydraulic oil tank. (See “Hydraulic Oil Tank—
Drain Procedure” on page 6-42.)
4. Raise hydraulic oil/fuel tank. (See “Raise Hydraulic
Oil/Fuel Tank” on page 9-4.)

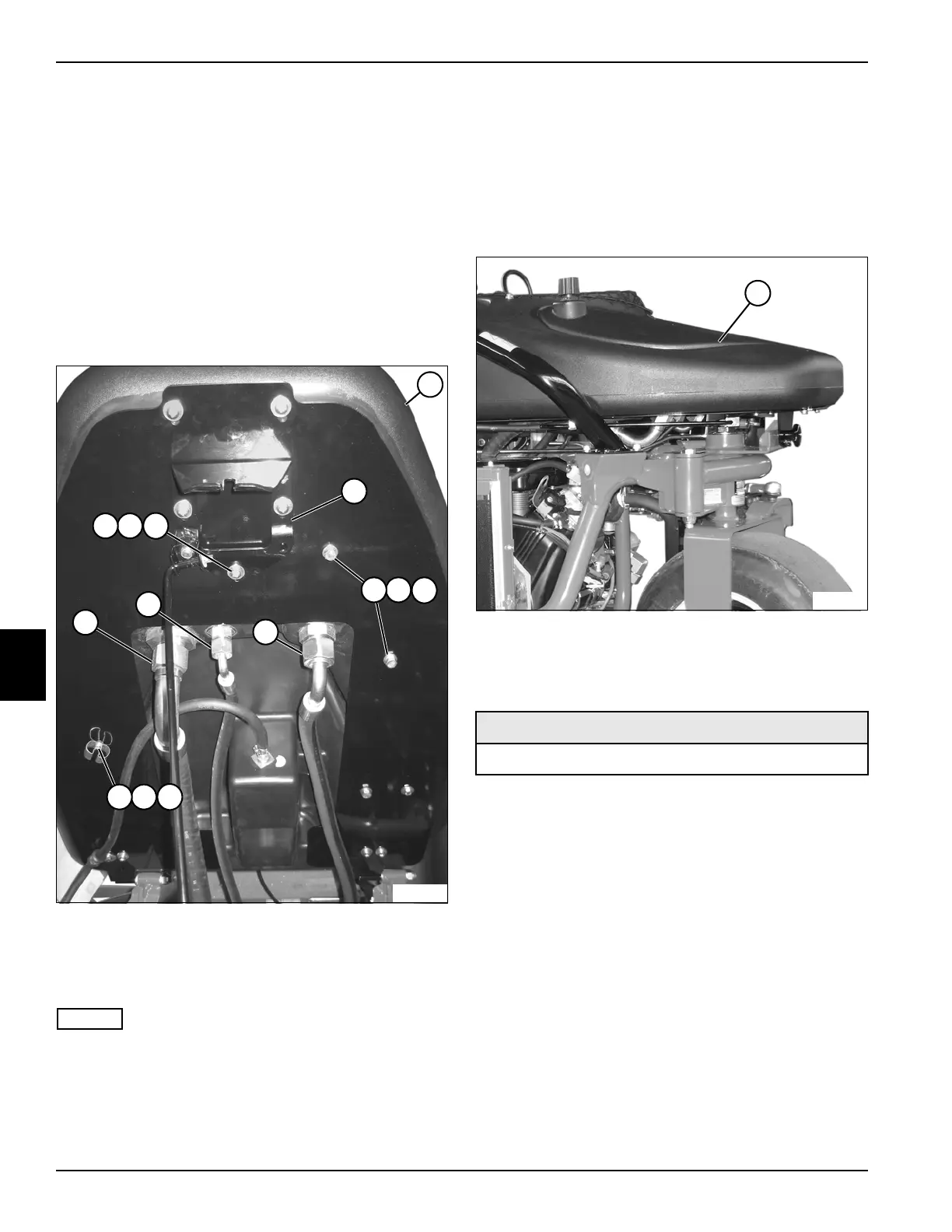

Figure 6-73
5. Remove screws (9), lock washers (10), and flat
washers (11).
6. Remove screw (12), lock washer (13), and clip (14).
NOTES
• Label all hydraulic hoses and tubes before
disconnecting to ensure correct installation.
• Close all openings with caps or plugs to prevent
contamination.
7. Disconnect hoses (1, 5, and 6) from hydraulic oil
tank.
8. Support hydraulic oil/fuel tank (8) using a suitable
lifting device.
9. Remove three screws (2), lock washers (3), flat
washers (4), and bracket assembly (7).
10. Lower hydraulic oil/fuel tank (8) to operating position.
Figure 6-74
11. Remove hydraulic oil tank (15).
Installation Notes
• Install hydraulic oil tank by reversing the order of
removal.
TN3983
5
1
6
109
11
7
32
4
1312
14
8
Required Materials
Anti-Seize Compound
TN3984
15
