Textron JACOBSEN GP400 - Lower Circuit Schematic

HYDRAULICS
4252490-Rev A 6-23
6

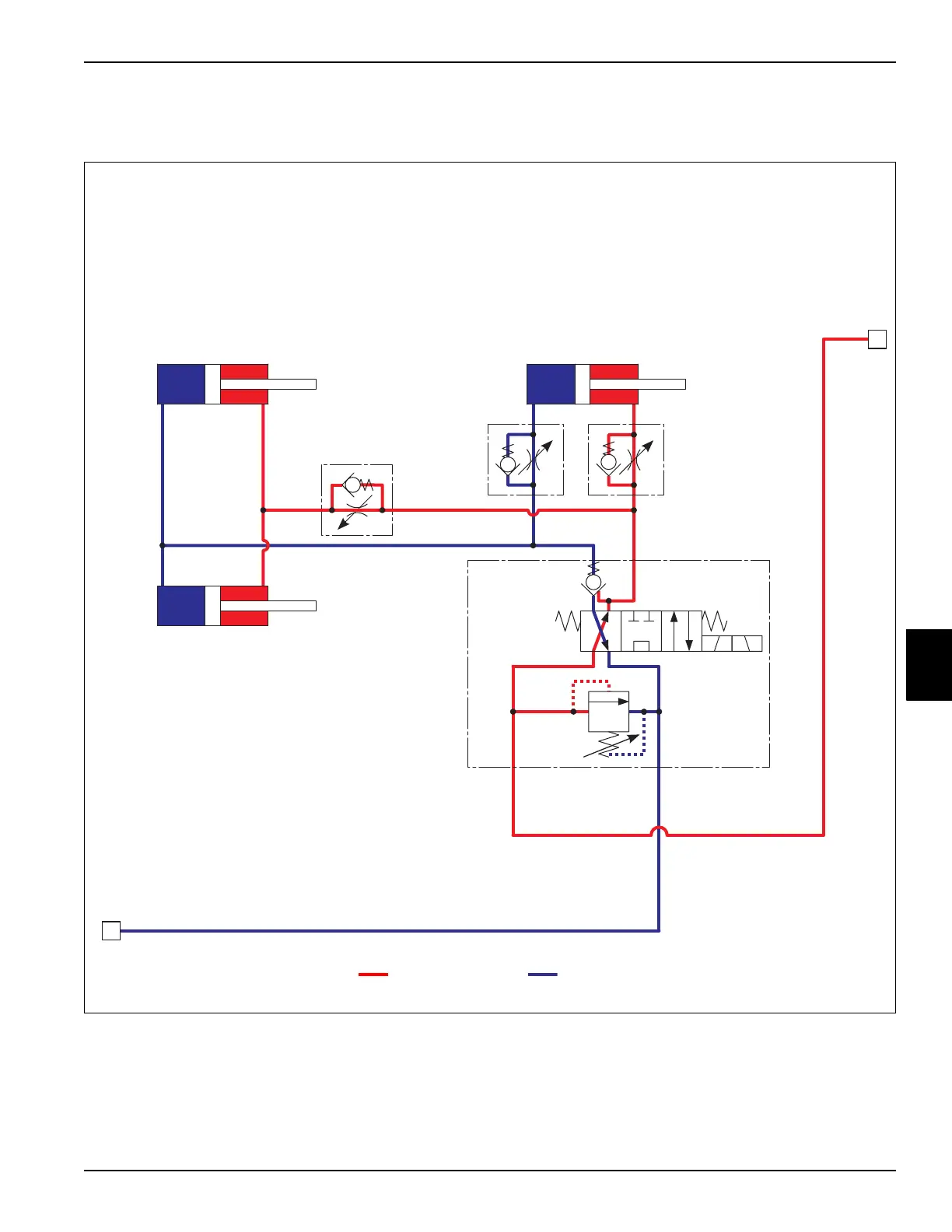

Lower Circuit Schematic
See Figure 6-15.
Figure 6-15
1 Return Oil to Oil Cooler and Hydraulic Tank 2 Operating Pressure Oil from Reel Valve Unit (Port T)
Lift Valve
Right Lift Cylinder
Relief Valve
1250 psi
1
2
Left Lift Cylinder
Center Lift Cylinder
PT
Solenoid Valve
Check
Valve
AB
BA
BB
AA
Top
Sequence
Soft Drop
Valve
Bottom Sequence
Delay Valve
TN3071
Operating Pressure Oil
Return Oil
