Textron JACOBSEN GP400 - Instrument Panel Cover; Traction Lever Assembly

ACCESSORIES AND MISCELLANEOUS REPAIR
4252490-Rev A 9-13
9
Instrument Panel Cover
Removal and Installation
See Figure 9-24.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)

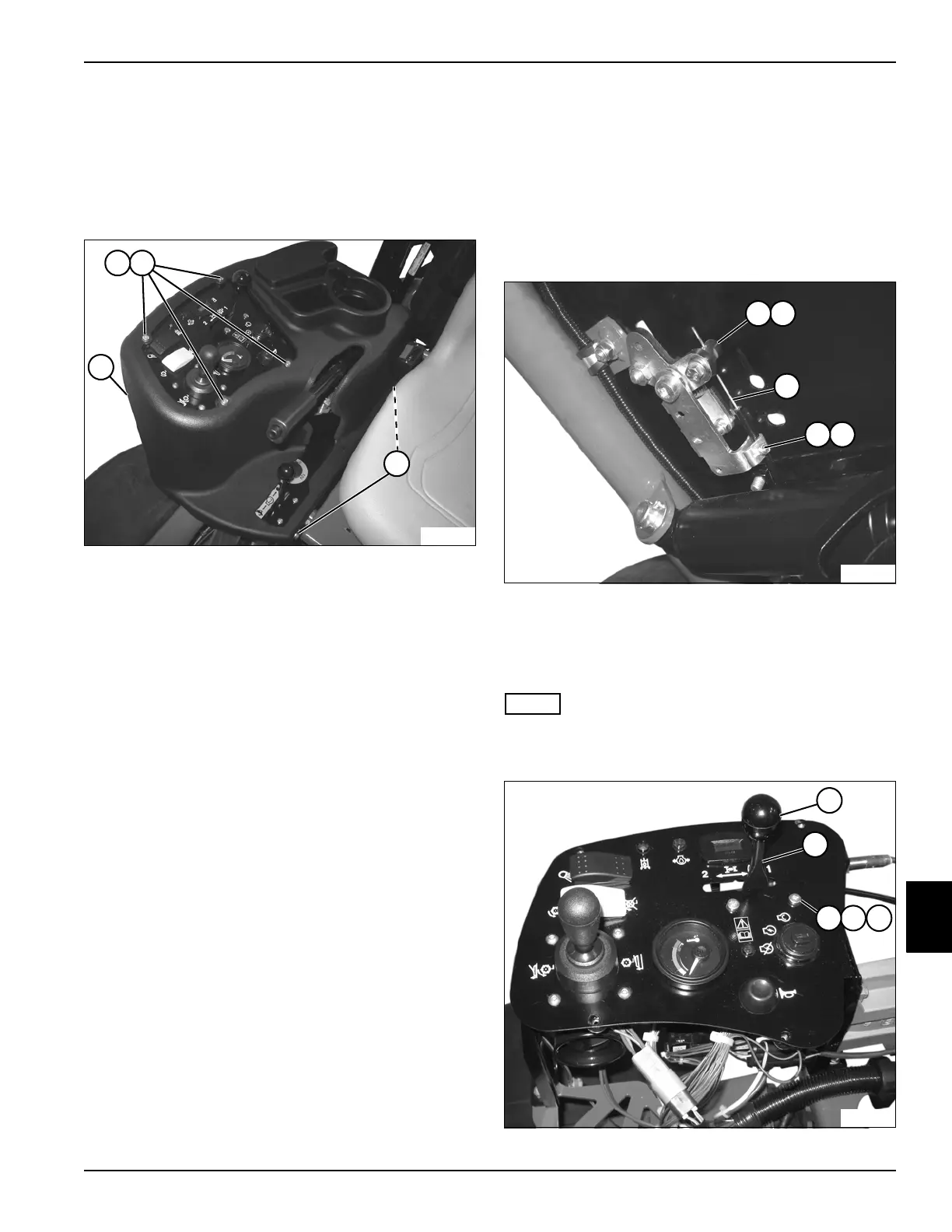

Figure 9-24
2. Loosen, but do not remove, screws (3).
3. Remove screws (1) and flat washers (2).
4. Remove instrument panel cover (4).
Installation Note
Install instrument panel cover by reversing the order of
removal.
Traction Lever Assembly
Removal and Installation
See Figures 9-25 and 9-26.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove instrument panel cover. (See “Instrument
Panel Cover” on page 9-13.)
Figure 9-25
3. Loosen screw (1) and cable clamp (2).
4. Loosen screw (4) and nut (5).
5. Disconnect mow speed cable (3).
NOTE
Note mow speed cable routing to ensure correct
installation.
Figure 9-26
