4-62 4252490-Rev A
ELECTRICAL
4
Installation Notes
• Apply dielectric grease (Jacobsen PN 365422) to any
wire connectors disconnected.
• Use new cable ties to secure wire connectors and
wire harness.
• Install lower solenoid by reversing the order of
removal.
• Tighten nut (3) to 7 lb-ft. (10 N·m).
Raise Solenoid
Removal and Installation
See Figure 4-60.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Remove lower solenoid. (See “Lower Solenoid” on
page 4-61.)

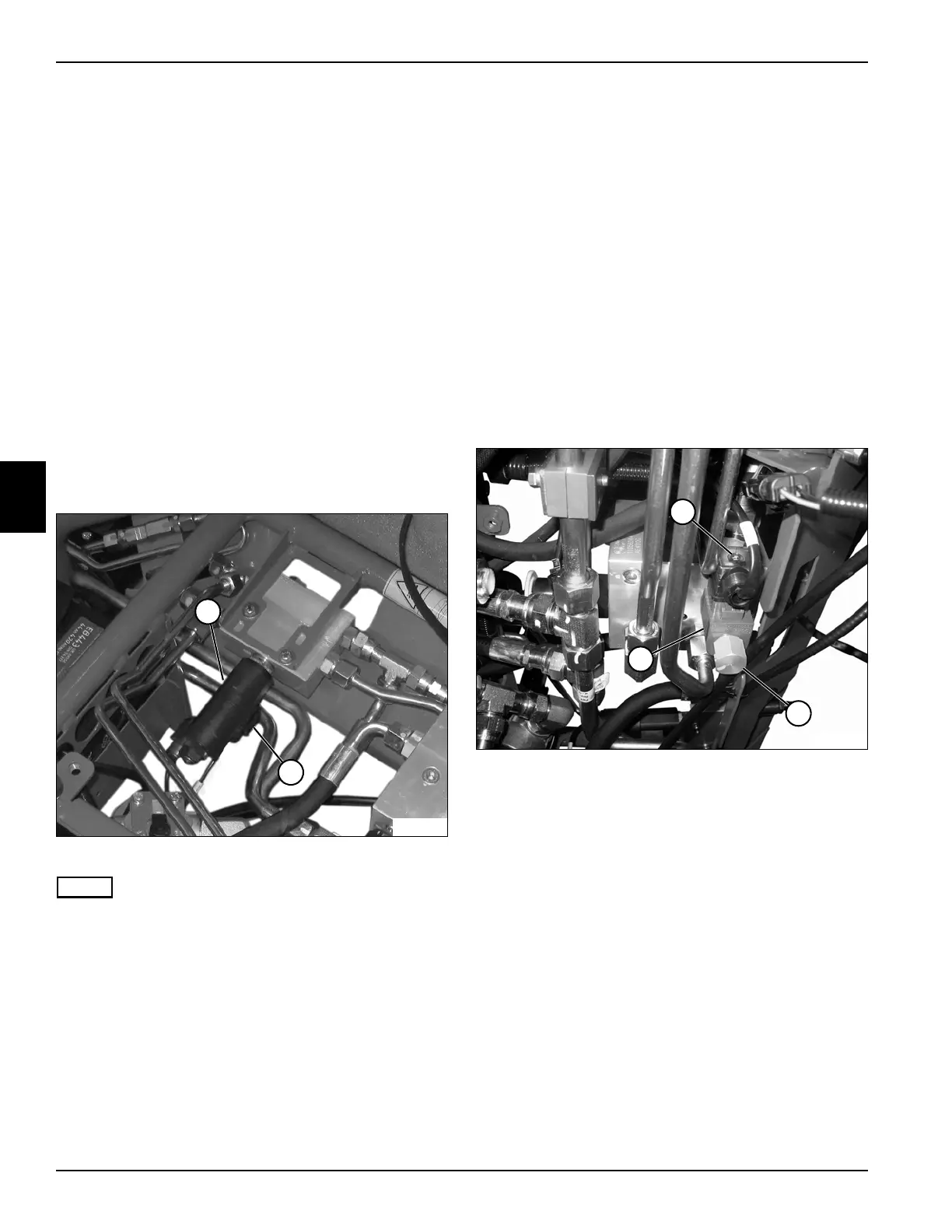

Figure 4-60
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Loosen connector hold-down screw and disconnect
wire connector (2).
5. Remove raise solenoid (1).
Installation Notes
• Apply dielectric grease (Jacobsen PN 365422) to any
wire connectors disconnected.
• Use new cable ties to secure wire connectors and
wire harness.
• Install raise solenoid by reversing the order of
removal.
Mow Solenoid
Removal and Installation
See Figure 4-61.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Disconnect the negative (–) battery cable at the
battery.
Figure 4-61
3. Loosen connector hold-down screw and disconnect
wire connector (1).
4. Remove nut (2).
5. Remove mow solenoid (3).
Installation Notes
• Apply dielectric grease (Jacobsen PN 365422) to any
wire connectors disconnected.
• Use new cable ties to secure wire connectors and
wire harness.
• Install mow solenoid by reversing the order of
removal.
• Tighten nut (2) to 65–75 lb-in. (7–8 N·m).
TN3899
2
1
TN3903
2
1
3
