Mow Speed Stop Adjustment

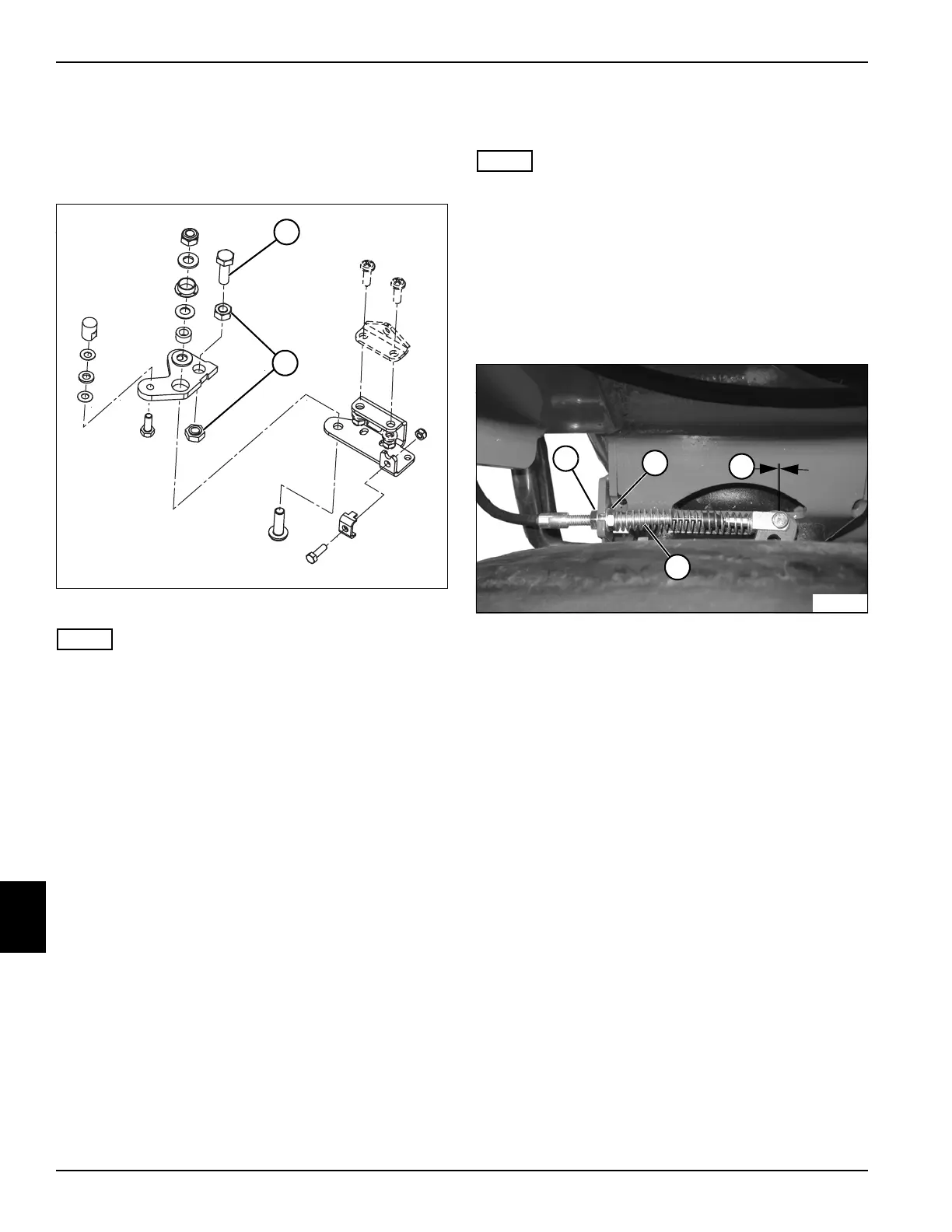

See Figure 9-6.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 9-6
NOTE
Adjusting mow speed stop clockwise increases mow
speed. Adjusting mow speed stop counterclockwise
decreases mow speed.
1. Loosen lock nuts (2).
2. Adjust mow speed stop (1).
3. Tighten lock nuts (2).
Park Brake Adjustment
See Figure 9-7.
NOTE
Right park brake shown; left park brake is similar. To
access left park brake, remove tool box. (See “Tool Box”
on page 9-17.)
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Block each side of rear wheel using suitable wheel
blocks.
3. Disengage park brake.
Figure 9-7
4. Loosen lock nuts (1).
5. Adjust park brake cable (3) until caliper lever
movement (2) is 0.04 in. (1 mm).
6. Tighten lock nuts (1).
7. Repeat steps 1 through 4 for other park brake.
1
2
TN3755
1
1
3
2
TN3866
