HYDROSTATIC POWER TRAIN
4252490-Rev A 5-57
5
Wheel Motors
Removal and Installation
Front Wheel Motor

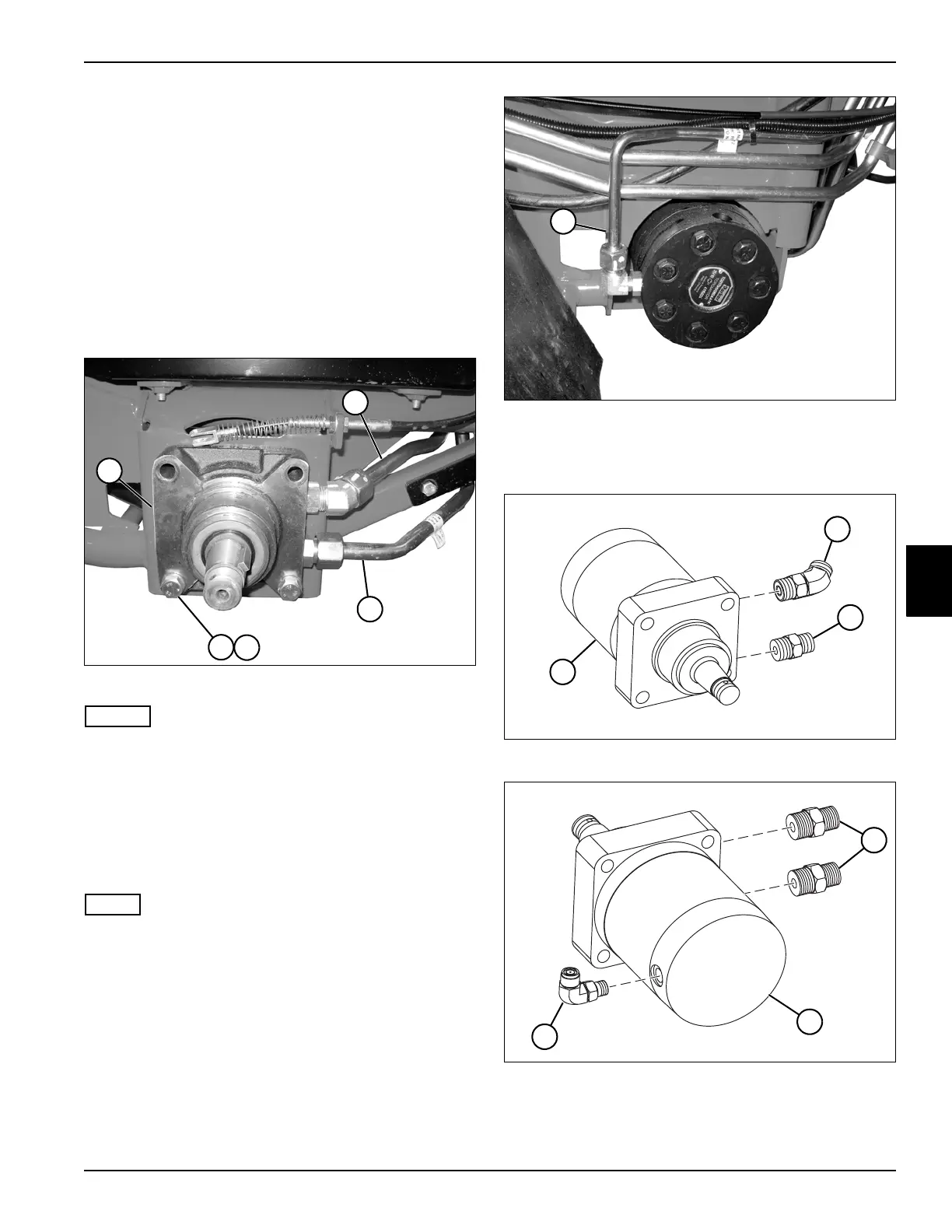

See Figures 5-57 through 5-60.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove front wheel. (See “Front Wheel” on
page 9-19.)
3. Remove front wheel hub. (See “Front Wheel Hub” on
page 9-22.)
Figure 5-57
NOTES
• Label all hydraulic tubes before disconnecting to
ensure correct installation.
• Close all openings with caps or plugs to prevent
contamination.
4. Disconnect tubes (1 and 2).
5. Support front wheel motor (5) and remove four
mounting screws (3) and lock washers (4).
NOTE
Perform step 6 only if removing the right side motor,
otherwise proceed to step 8.
Figure 5-58
6. For 2WD models, disconnect tube (6).
7. Remove front wheel motor (5).
Figure 5-59: Left Front Wheel Motor
Figure 5-60: Right Front Wheel Motor
TN3880
1
2
5
4
3
TN3881
~
6
TN3883
7
8
9
TN3882
10
12
11
To Next Page
