Textron JACOBSEN GP400 Technical/Repair Manual

9-4 4252490-Rev A
ACCESSORIES AND MISCELLANEOUS REPAIR
9
Checks and Adjustments
Rotate Seat Forward
See Figure 9-2.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)

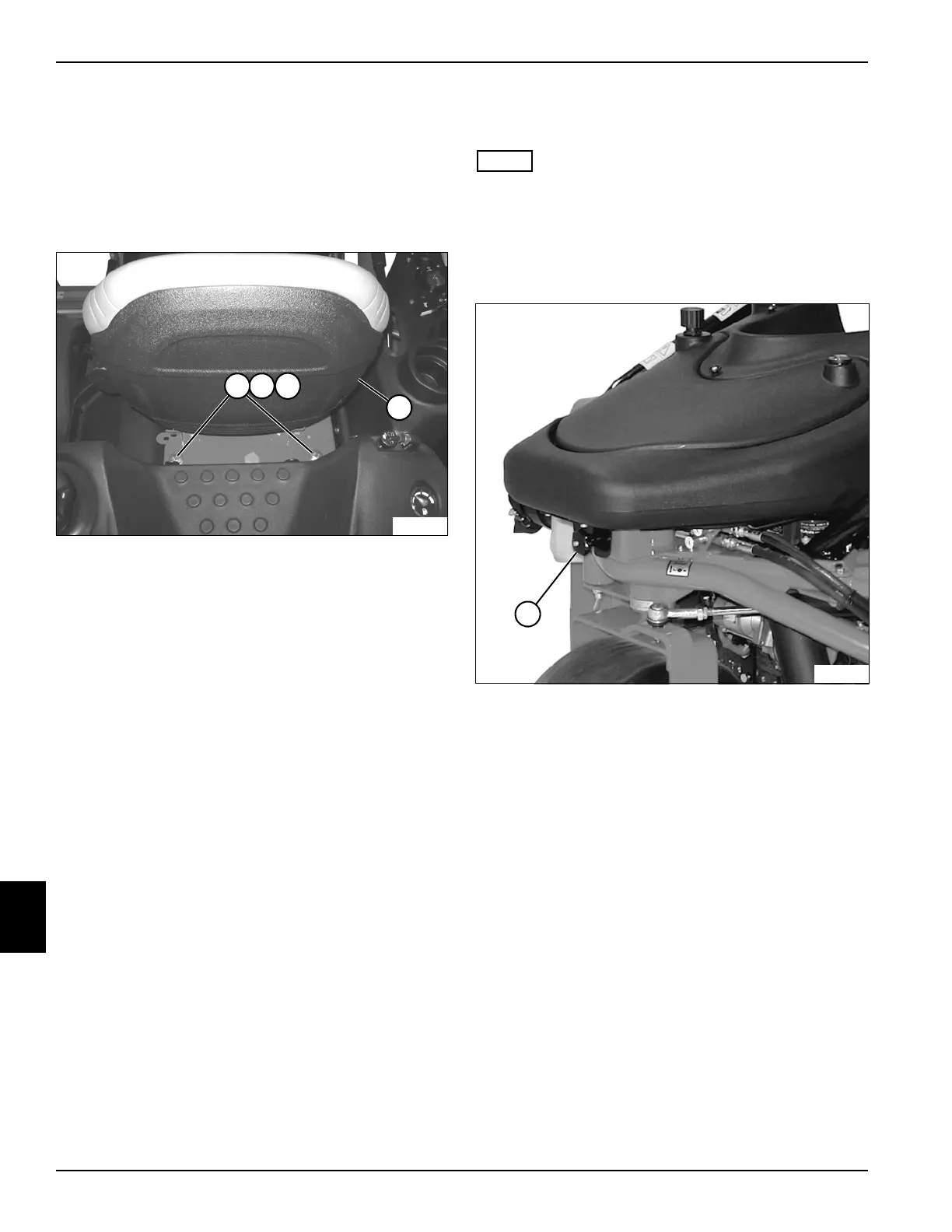

Figure 9-2
2. Remove screws (1), lock washers (2), and flat
washers (3).
3. Rotate seat (4) forward.
Raise Hydraulic Oil/Fuel Tank
See Figures 9-3 and 9-4.
NOTE
Diesel model is shown; gasoline model is similar.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Rotate seat forward. (See “Rotate Seat Forward” on
page 9-4.)
Figure 9-3
3. Loosen knob (2).
21
3
4
TN3675
2
TN3790
