ACCESSORIES AND MISCELLANEOUS REPAIR
4252490-Rev A 9-5
9

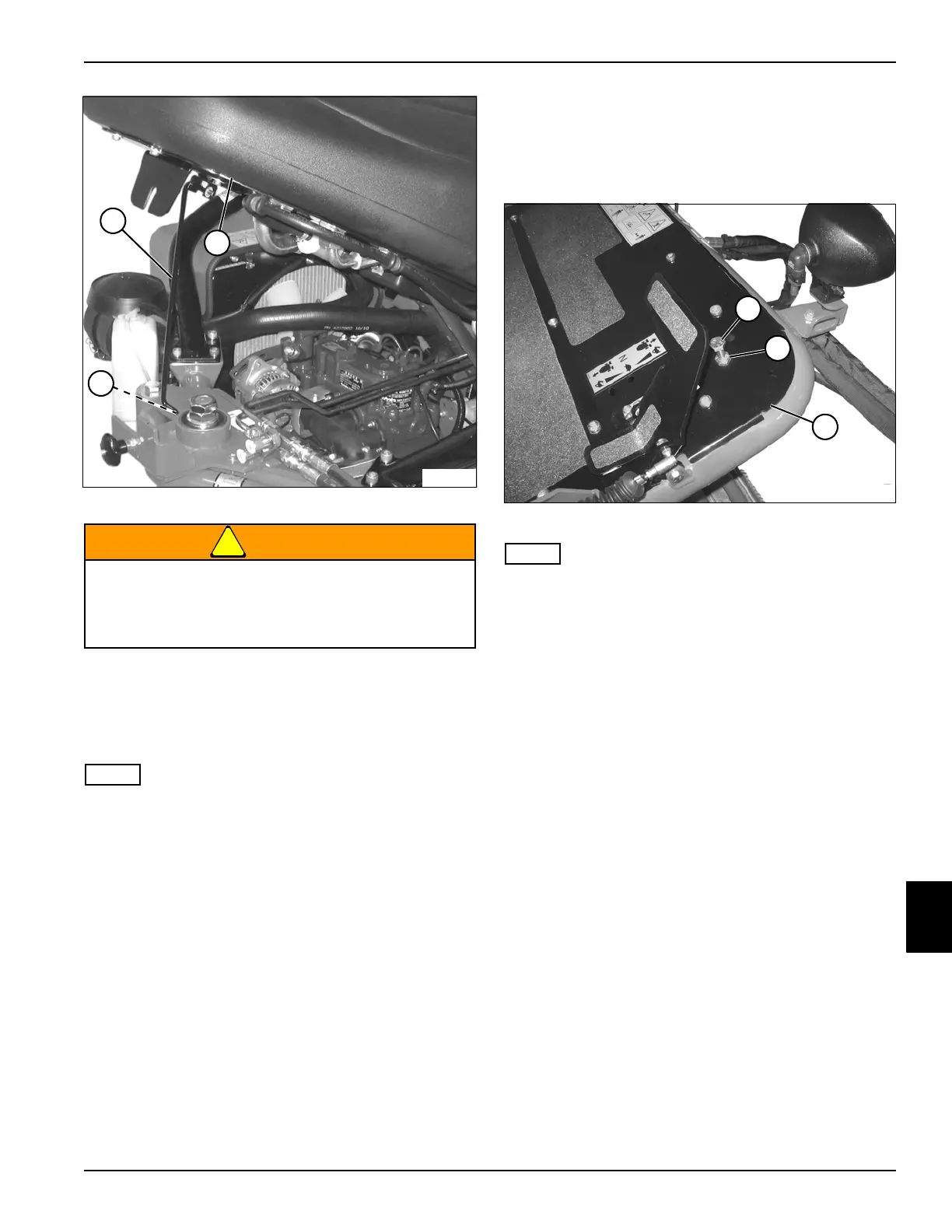

Figure 9-4
!
WARNING
4. Raise hydraulic oil/fuel tank (4).
5. Support hydraulic oil/fuel tank by pivoting support rod
(3) under the hydraulic oil/fuel tank into support rod
hole (5).
NOTE
Lower hydraulic oil/fuel tank by reversing the order of
raising.
Transport Speed Stop Adjustment
See Figure 9-5.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 9-5
NOTE
Adjusting transport speed stop clockwise increases
transport speed. Adjusting transport speed stop
counterclockwise decreases transport speed.
2. Loosen lock nut (2) on each side of upper floorboard
(3).
3. Adjust transport speed stop (1).
4. Tighten lock nut (2) on each side of upper floorboard
(3).
DO NOT remove the fuel tank cap while the
hydraulic oil/fuel tank is in the raised position.
Removing fuel tank cap may cause diesel fuel to
spill from tank.
4
3
5
TN3793
1
2
3
TN3799
