Textron JACOBSEN GP400 - Throttle Cable (Diesel)

ENGINE
4252490-Rev A 3-9
3

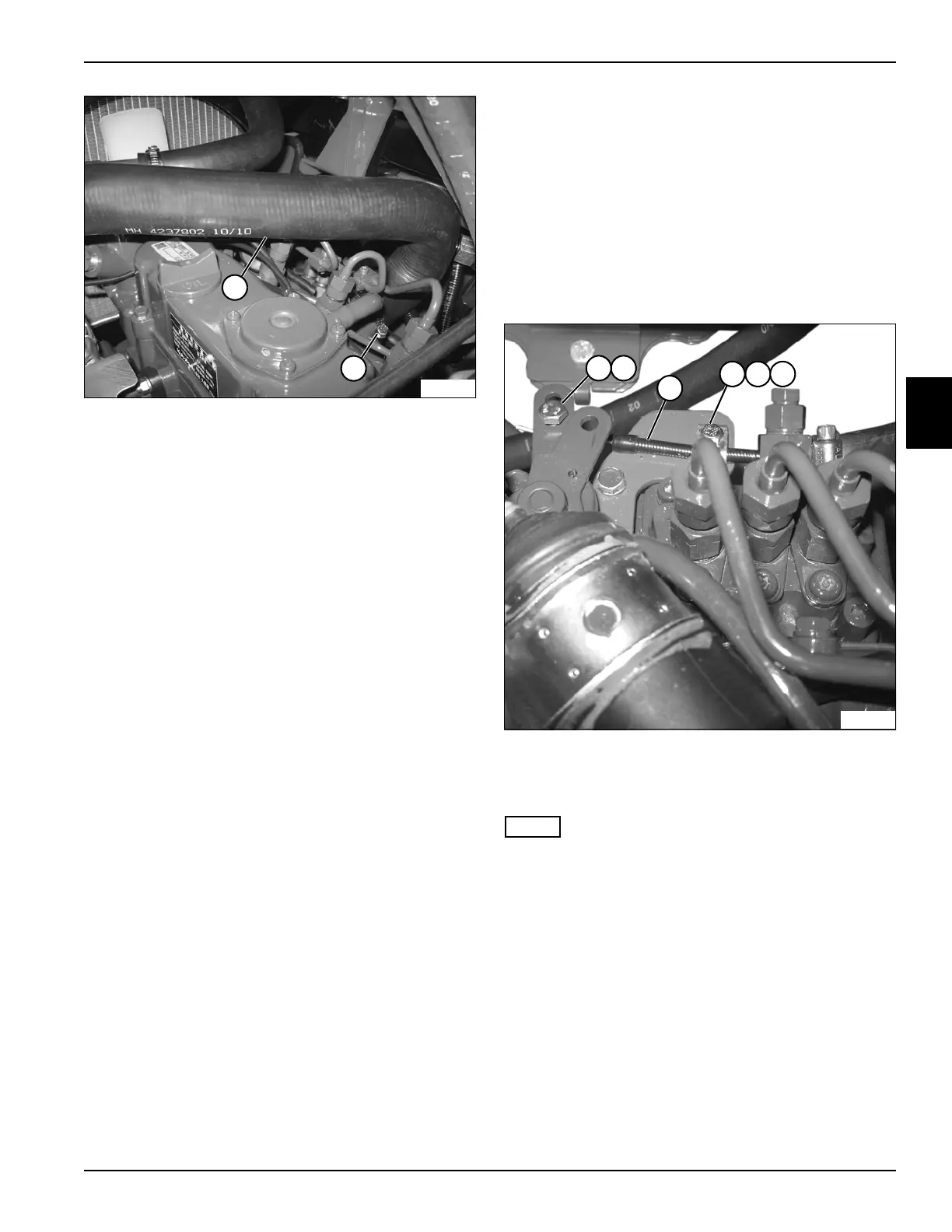

Figure 3-11
7. Loosen hose clamp (9) and remove air filter
assembly and hose (8).
Installation Note
Install air filter assembly by reversing the order of
removal.
Throttle Cable (Diesel)
Removal and Installation
See Figure 3-12.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hydraulic oil/fuel tank. (See “Raise
Hydraulic Oil/Fuel Tank” on page 9-4.)
3. Remove throttle lever. (See “Throttle Lever” on
page 9-14.)
Figure 3-12
4. Loosen screw (1) and cable clamp (2).
5. Remove screw (4), nut (5), and clamp (6).
NOTE
Note routing of throttle cable (3) before removing to
ensure correct installation.
6. Remove throttle cable (3).
Installation Note
Install throttle cable by reversing the order of removal.
TN3977
9
8
TN3902
1 2
4 5 6
3
