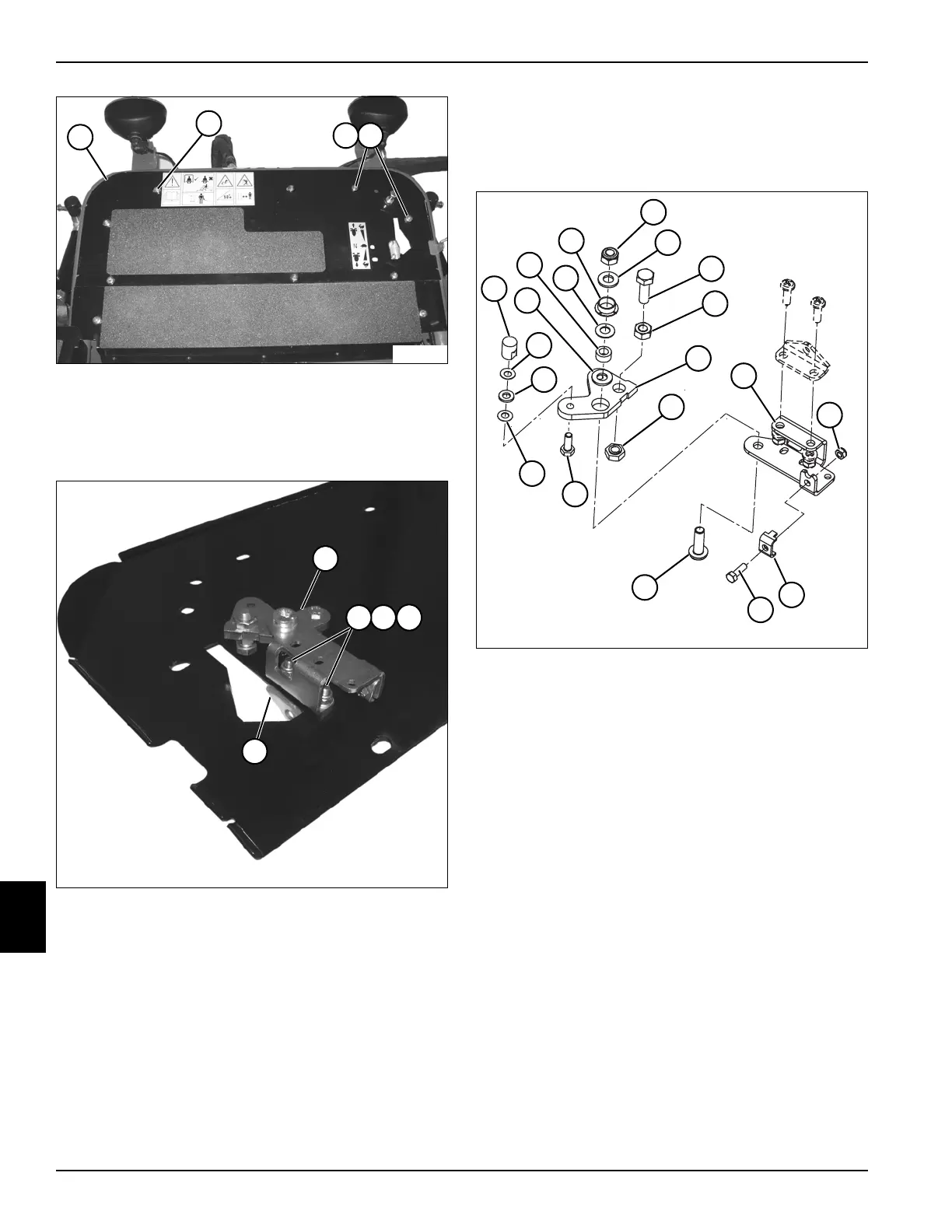

Figure 9-21
9. Remove screws (18) and nuts (19).
10. Remove six screws (17).
11. Remove upper floorboard (16).
Figure 9-22
12. Remove nuts (21), flat washers (22), screws (23),
mow speed stop bracket (20), and traction pedal
bracket (24).
Installation Notes
• Install traction pedal assembly by reversing the order
of removal.
• Adjust transport speed stop. (See “Transport Speed
Stop Adjustment” on page 9-5.)
• Adjust mow speed stop. (See “Mow Speed Stop
Adjustment” on page 9-6.)
Disassembly and Assembly
Mow Speed Stop Bracket Assembly
See Figure 9-23.
Figure 9-23
Disassembly Note
Clean and inspect all moving parts, checking for wear,
damage, and binding.
Assembly Notes
• Assemble mow speed stop bracket in reverse order
of disassembly.
• Adjust mow speed stop. (See “Mow Speed Stop
Adjustment” on page 9-6.)
16
17
1918
TN3750
24
20
2221
23
TN3776
