Smart-Vue Module Overview and Installation
Thermo Scientific Smart-Vue
®
Wireless Monitoring Solution Administrator Guide v 2.2 9

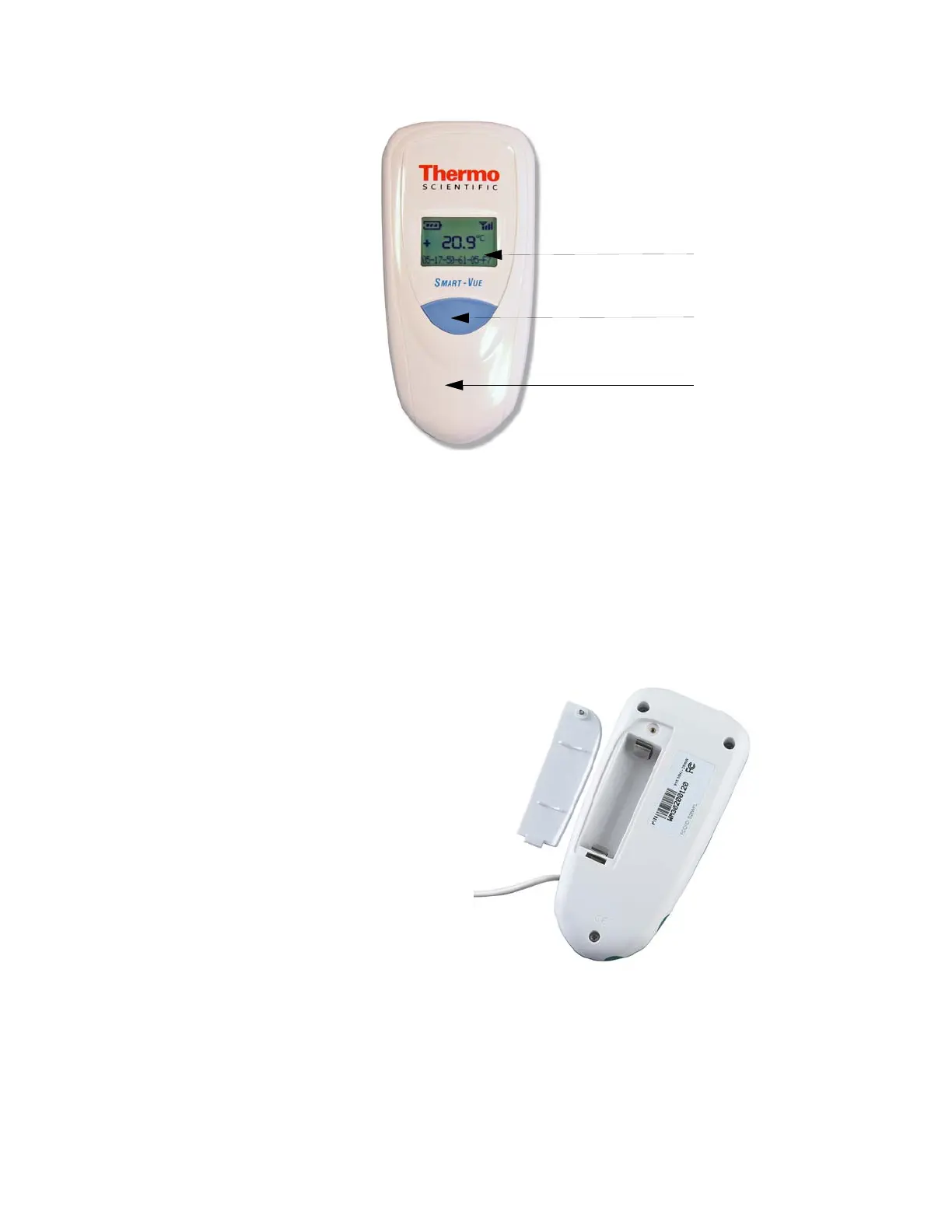

Figure 1. Smart-Vue module (shown without external sensors)
1.4 Inserting the Module
Battery
The Smart-Vue temperature monitor is a standalone device that runs on
battery power. To activate your Smart-Vue module and add it automatically
to your wireless monitoring network, do the following:
Insert the provided battery, if not already installed, making sure to respect
the polarity (see image printed inside battery slot). We recommend that you
use a manual screwdriver, being careful not to over-tighten the screws.
Figure 2. Remove back cover and insert battery (respect +/- polarity)
Note As shown in the above image, the Smart-Vue module has a protection
index of IP65, including the battery compartment. An optional external casing
is available to provide IP67 protection.
LCD display with
temperature, signal
and battery
Push-button
Mounting holder
