Differential Pressure Module (with Internal Sensor)
34 Administrator Guide v 2.2 Thermo Scientific Smart-Vue
®
Wireless Monitoring Solution

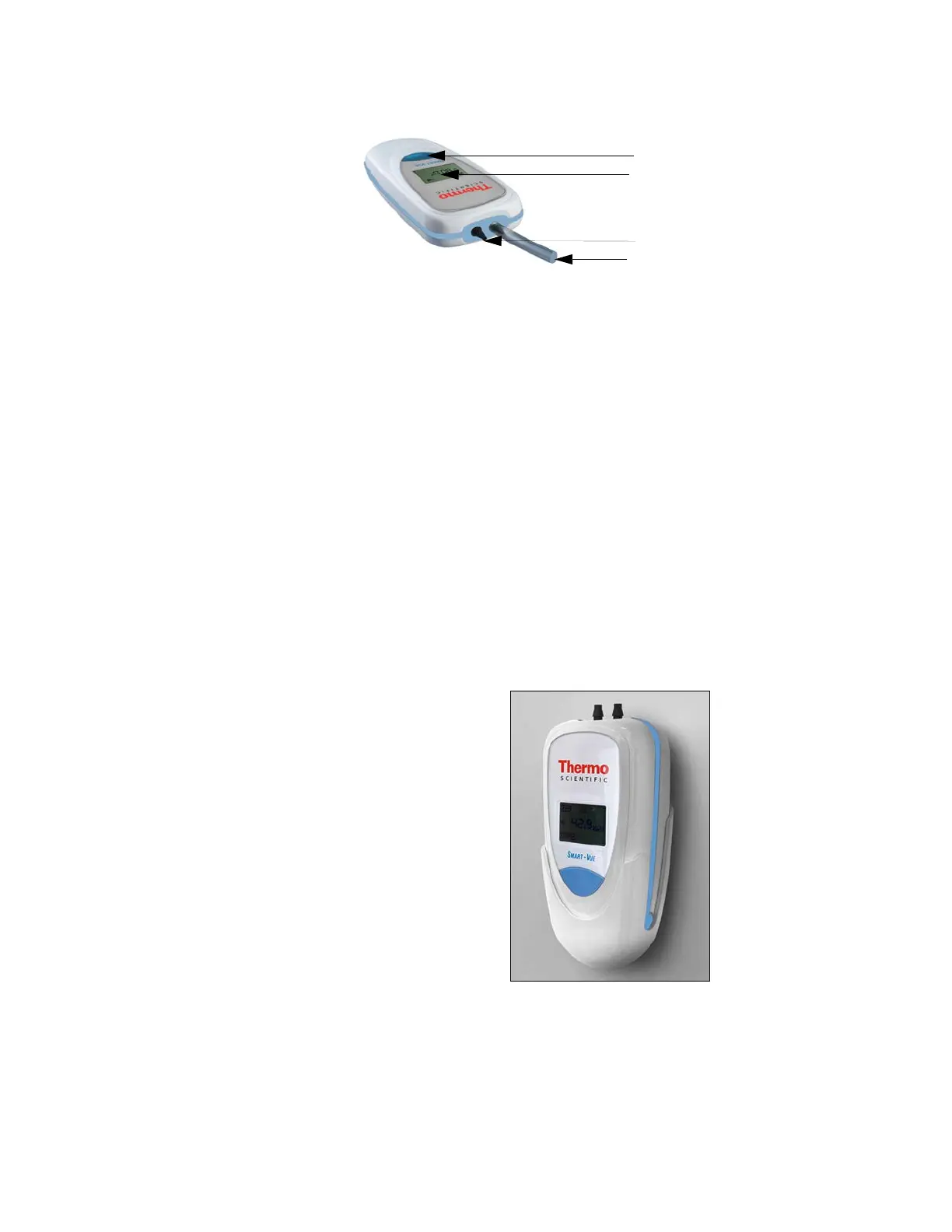

Figure 24. Differential pressure module with tube on under-pressure
input
6.3 Placing the
Differential Pressure
Module
1. Place the Smart-Vue differential pressure module in the appropriate
location for your needs.
2. Connect one end of the tube in the room to be monitored, and connect
the other end to the appropriate connector on the Smart-Vue module
(refer Figure 23).
3. Mount the Smart-Vue module using the provided plastic holder, which
you may mount using a magnet or Velcro® tape. Choose the method
that is most appropriate for your situation and place the Smart-Vue
module as described earlier in “How to place your Smart-Vue module
for best performance” refer to Section 1.6).
Figure 25. Smart-Vue module mounted in plastic holder
Push-button
LCD display with pressure
difference, signal and battery
indicators
“High” input
“Low” input
