CO2 and Temperature Module (with Dual External Sensors)
30 Administrator Guide v 2.2 Thermo Scientific Smart-Vue
®
Wireless Monitoring Solution
5.4 Placing the Sensor
and Smart-Vue Module
1. Place the CO
2
/temperature sensor upright inside the chamber to be
monitored, taking care to place the flat ribbon cable flush with the door joint.

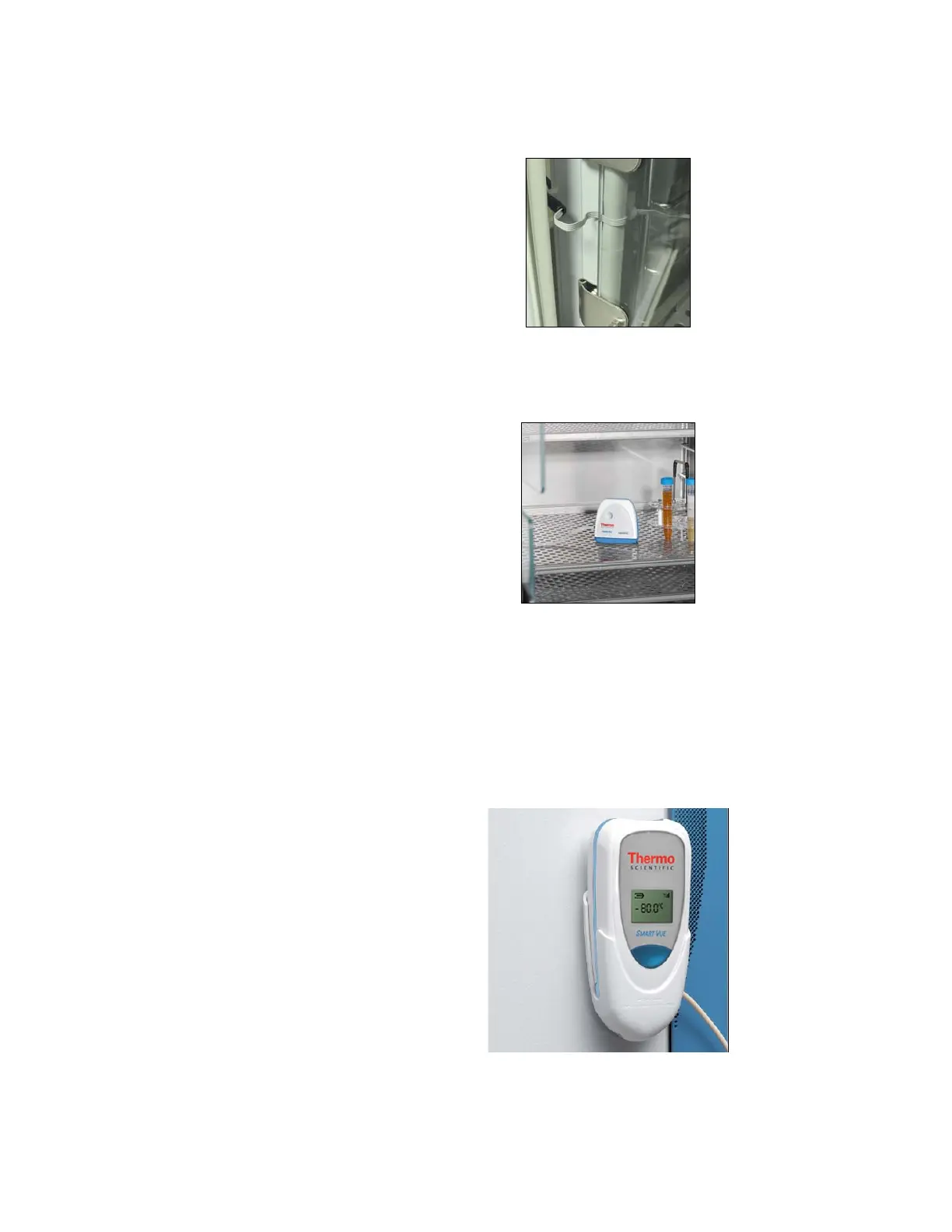

Figure 19. Ribbon cable lays flat beneath door joint
2. Make sure that the sensor unit stays in an upright position as shown here:
Figure 20. CO
2
/temperature module inside cabinet
3. Mount the Smart-Vue module on the exterior of the incubator door
using the provided plastic holder, which you may mount using a magnet
or Velcro®. Choose the method that is most appropriate for your
situation, and place the Smart-Vue module as described in How to place
your Smart-Vue module for best performance (refer to Section 1.6), for
example:
Figure 21. Smart-Vue module mounted on incubator door
