CO2 and Temperature Module (with Dual External Sensors)
Thermo Scientific Smart-Vue
®
Wireless Monitoring Solution Administrator Guide v 2.2 31
4. Connect the sensor and wireless module cables by joining the
connectors (being careful to not unscrew them).

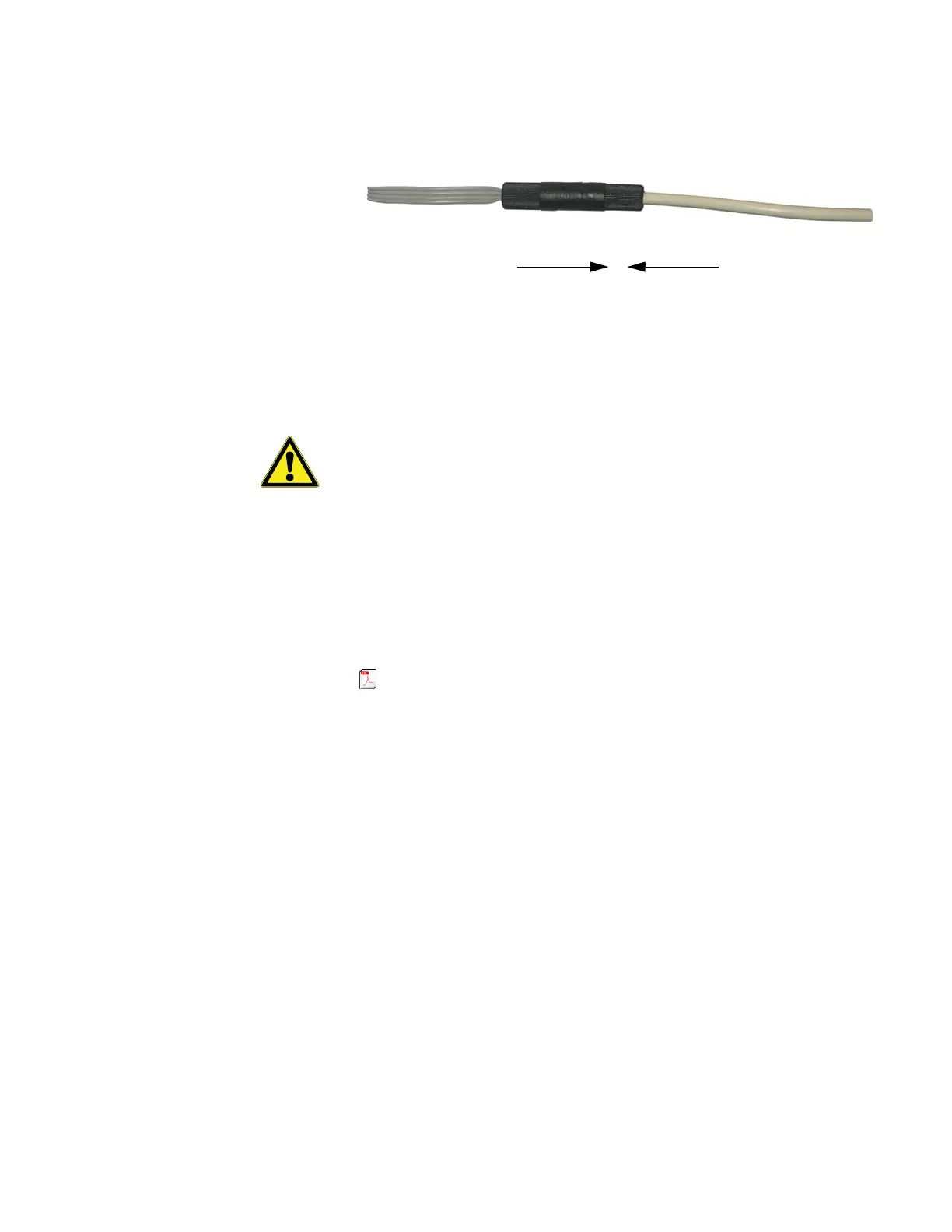

Figure 22. Join cable ends by pressing them firmly together
5. Use the provided plastic cable holders to attach or coil the excess cable
neatly.
CAUTION: When routing the cable for the Smart-Vue sensor, avoid direct
contact with or close proximity placement of the sensor cabling with any
high voltage wiring. Cabling should be placed with no less than a minimum
of 5 cm (2 inches) distance from high voltage components. Also, avoid
running the sensor cable in parallel with high voltage wiring. Feel free to
contact the manufacturer of the instrument for instructions regarding
proper placement of the sensor.
5.5 Where to Find More
Information
The Smart-Vue Software User Manual provides detailed information on
module and system configuration. You may click on Help User manual
( ) to open the software user manual directly from within the Smart-Vue
Client software.
Ribbon cable to Ribbon cable to
