17.1 Smart-Vue TCP/IP
Dry Contact device
description
Smart-Vue TCP/IP Dry Contact devices are used to trigger alerts on one or
two external dry contact devices if alarm conditions are detected in your
Smart-Vue wireless monitoring system. Alarms can be configured in the
Smart-Vue Client software for any or all of your end-point modules
and/groups.
For example, you can configure a Smart-Vue temperature monitoring
module to trigger an alarm if the temperature exceeds or drops below a
specified limit. The alarm limits and values depend on the type of
Smart-Vue module you are using. The TCP/IP Dry Contact device receives
a signal over the network when an alarm is detected by the software, and
then triggers an alarm on the connected dry contact device(s).

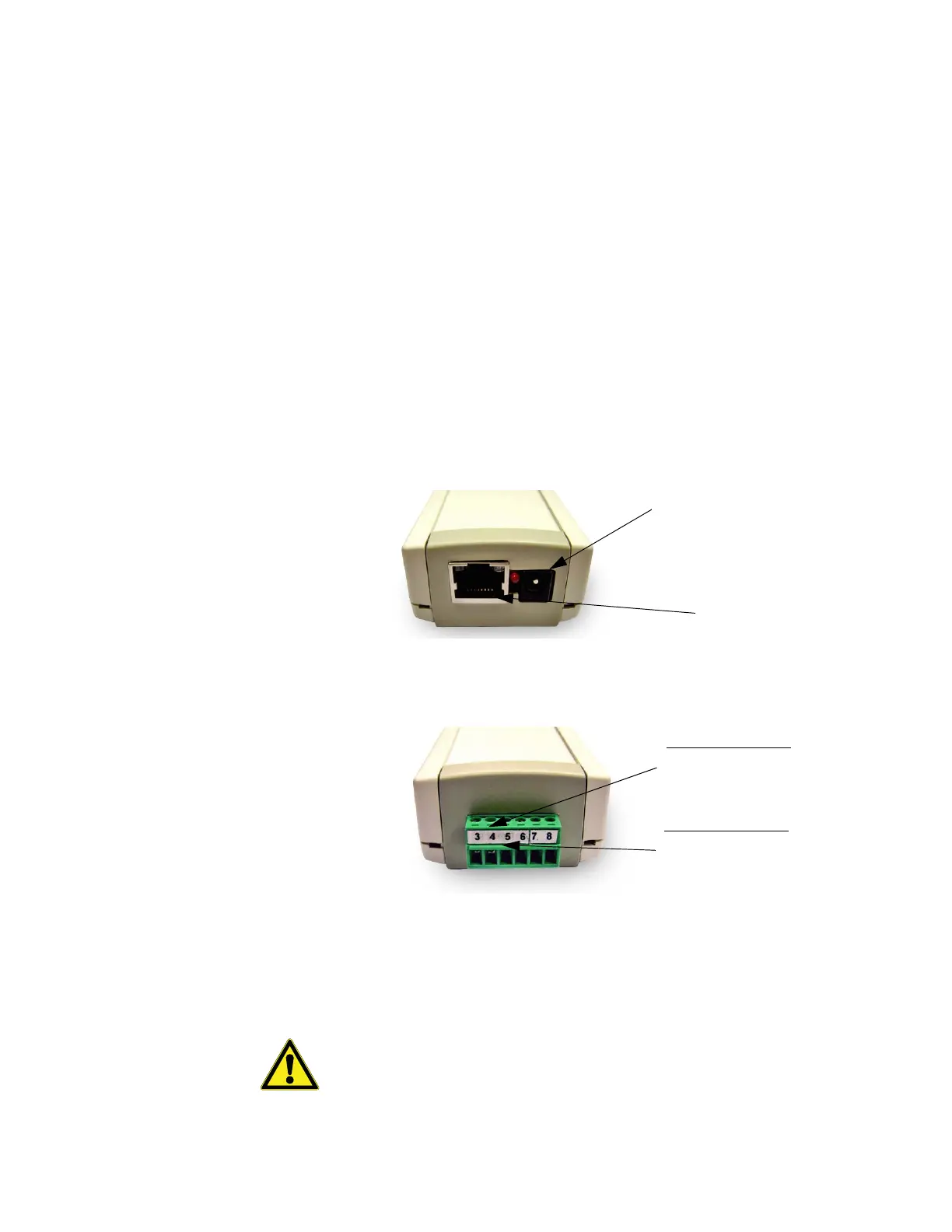

Figure 47. Bottom View
Figure 48. Top View
If your TCP/IP Dry Contact device is used to control two connected
devices, both of the devices are controlled identically at the same time.
CAUTION: The Smart-Vue server’s Alarm Management System connects
to the TCP/IP Dry Contact device on its IP port 30704. This port must
therefore be open for outbound connections on your firewall.
AC adapter plug
RJ-45 Ethernet plug
Dry Contact 3 & 4:
Normal state = Closed contact
Alarm state = Open contact
Dry Contact 4 & 5:
Normal state = Open contact
Alarm state = Closed contact
