Thermo Scientific Smart-Vue User Manual

PT100 Module (External Sensor)
Thermo Scientific Smart-Vue
®
Wireless Monitoring Solution Administrator Guide v 2.2 25
Depending on whether storing in vapor or liquid phase, place the sensor at a
depth suitable for proper temperature monitoring.

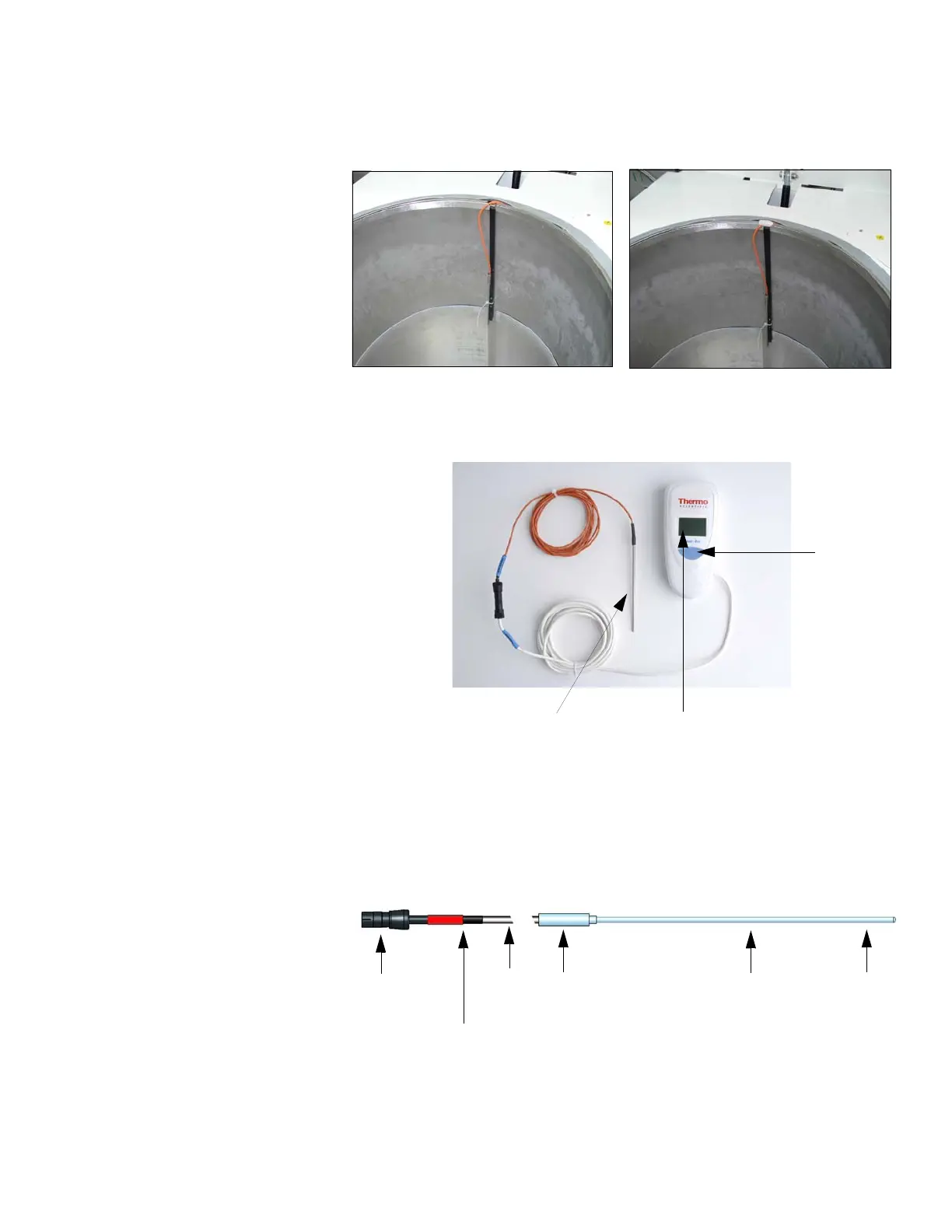

Figure 11. PT100 (-200°C to +50°C) for nitrogen/cryogenic tank
Figure 12. Smart-Vue wireless module with PT100 sensor (-100°C to +150°C)
Here is a detailed description of the parts of the various PT100 sensors (sold
separately).
Figure 13. PT100 sensor details (red band  ovens)
Push Button
LCD display with
module name,
temperature, signal
and battery indicators
PT100 sensor
Male
connector
Red
thermo-retractable band
Silk glass
Junction Pot
Steel Tube
Sensor
