15. SETTING-OUT MEASUREMENT
90

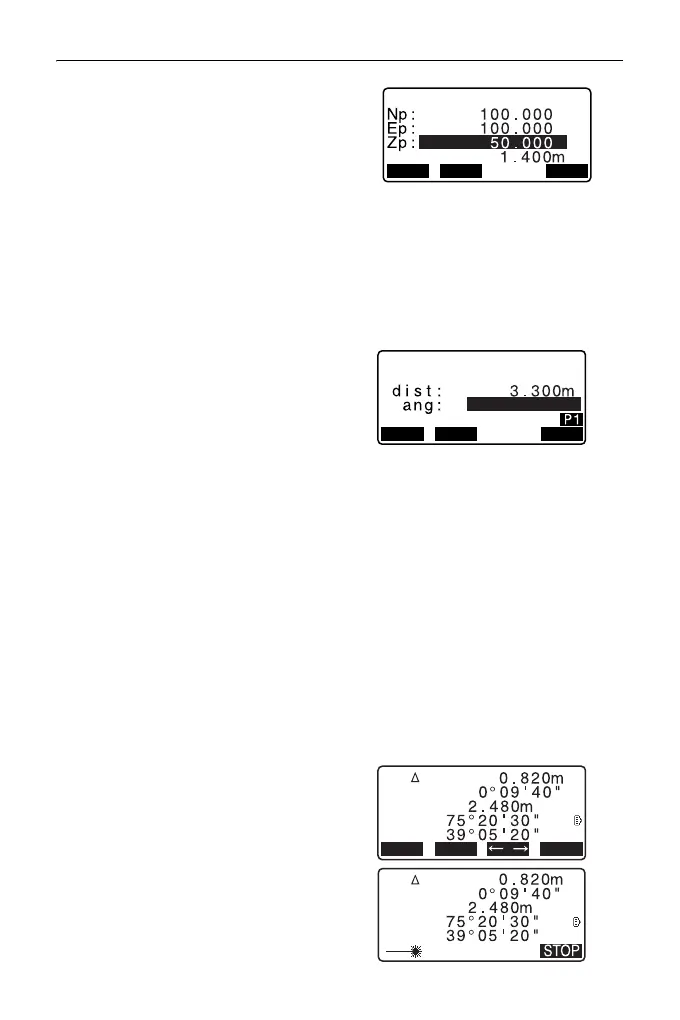

4. Enter the coordinates of the
setting-out point.
• When [LOAD] is pressed,
registered coordinates can be
recalled and used as setting-out
coordinates.
"13.1 Entering Instrument
Station Data and Azimuth
Angle PROCEDURE Reading
in Registered Coordinate
Data"
• Pressing [DISP] switches
between the distance input
modes.
5. Press [OK] to set the setting-out
data.
• The tilt screen is displayed if the
instrument is out of level.
Level the instrument.
"7.2 Levelling"
6. The difference in the distance and
angle calculated with the set
instrument station and the target
point is displayed.
Rotate the top of the instrument
until “dHA” is 0° and place the
target on the sight line.
7. Press [MEAS] to begin setting-out
measurement.
The target and the distance of the
point to be set out is displayed (S-
O
Δ HD).
HR
LOAD DISP
OK
S-O Coord
H
H
OK
40.0000
LOAD DISP
S-O HD
C
S-O HD
dHA
HD
ZA
HA-R
MEAS
DISP
REC
C
S-O HD
dHA
HD
ZA
HA-R
