149
INDIVIDUAL OPERAT
IONS
4

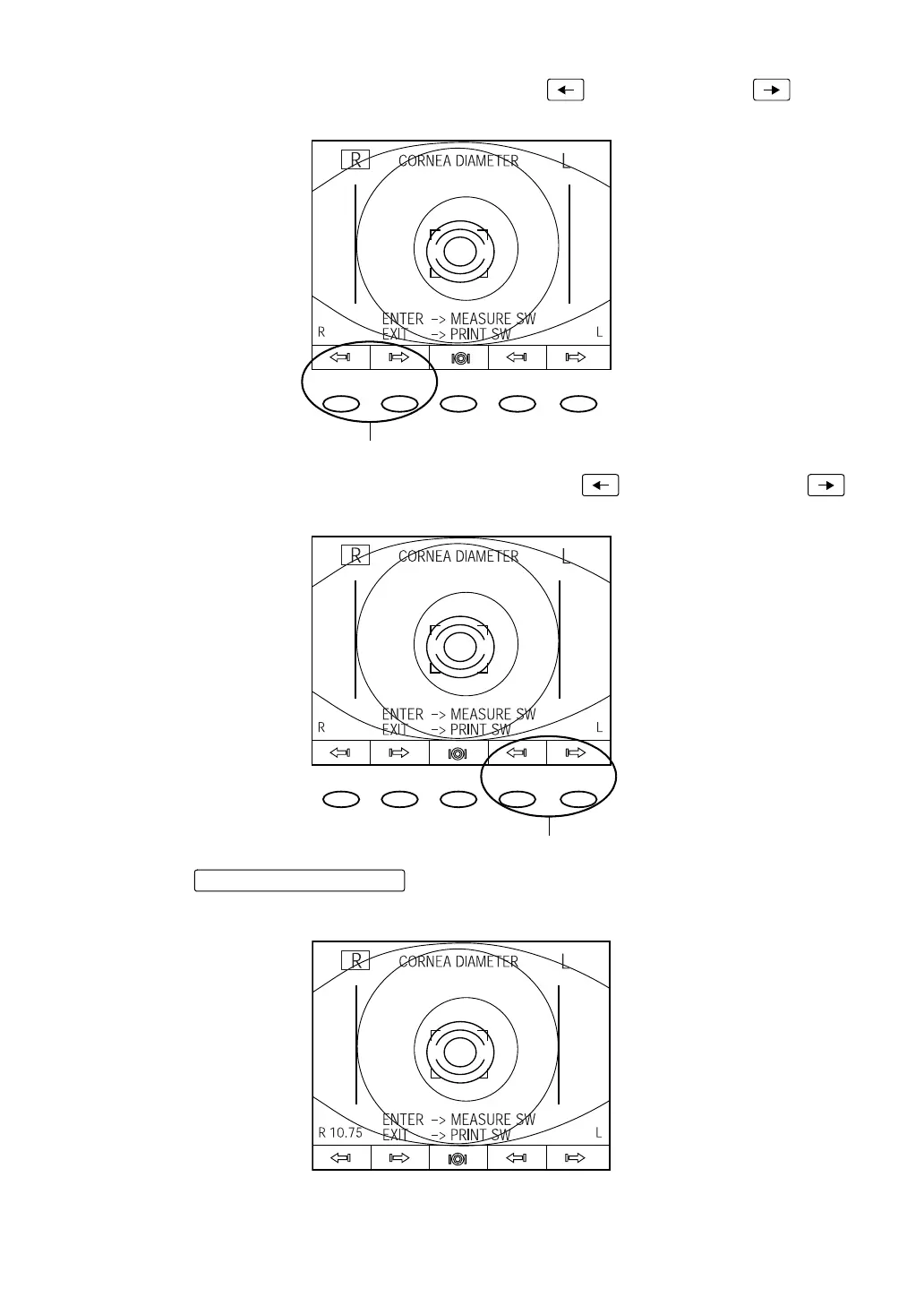

Press the MOVE LEFT POSITIONING BAR bu
tton
(move to the left
) or
(move
to the right) and bring the lef
t positioning bar to the lef
t end of iris.
5
Press the MOVE RIGHT POSI
TIONING BAR button
(move to the left) or
(move to the right) and brin
g the right positioning bar to the rig
ht end of iris.
6
Press .
7
The cornea diameter is
displayed.
MOVE LEFT POSITIONING BAR button
MOVE RIGHT POSITIONING BAR button
MEASUREMENT switch
149
