3. NOTE FOR OPTIONAL EQUIPMENT INSTALLATION/MAJOR UNIT REPLACEMENT EO18-33027
/MAINTENANCE
3. NOTE FOR OPTIONAL EQUIPMENT INSTALLATION/MAJOR UNIT REPLACEMENT/MAINTENANCE
3-2

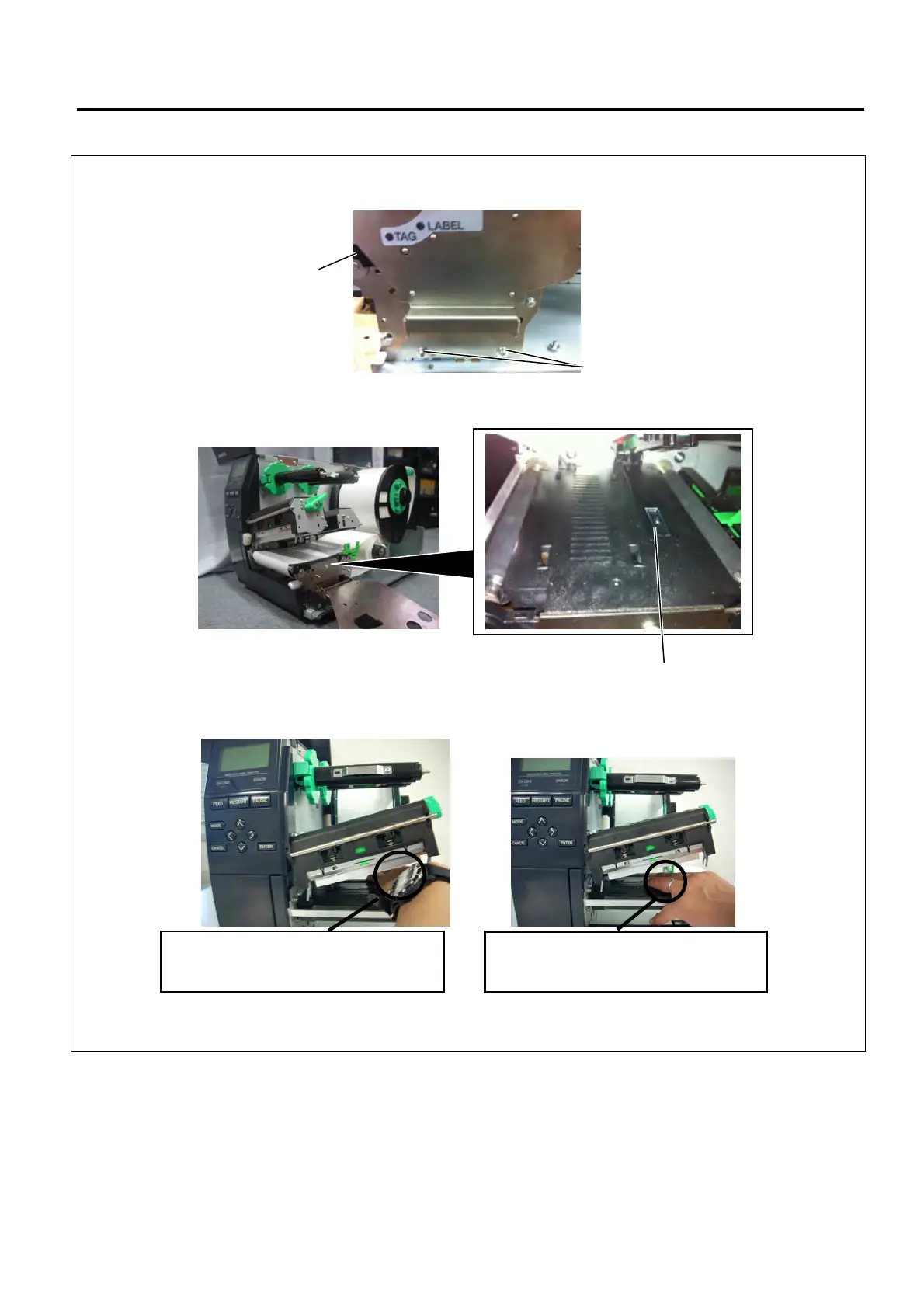

2. Do not remove the screws below. Doing so will require the printer block position adjustment with
the jig.
3. Be careful not to damage the sensor window. If so, the sensor cannot detect the feed gap or the
black mark correctly, causing improper printing.
4. When replacing parts or performing maintenance on the printer, be careful not to damage the print
head with a hard object like a watch or a ring.
Since the print head element can be easily damaged by shock, please treat it carefully by not hitting a
hard object against it.
Printer Block
Screw
Sensor Window
Care must be taken not to allow the
metal or glass part of a watch to touch
the print head edge.
Care must be taken not to allow a
metal object like a ring to touch the
print head edge.

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
