4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.6 EXPANSION I/O INTERFACE BOARD (B-EX700-IO-QM-R)
4-36
4.6 EXPANSION I/O INTERFACE BOARD (B-EX700-IO-QM-R)

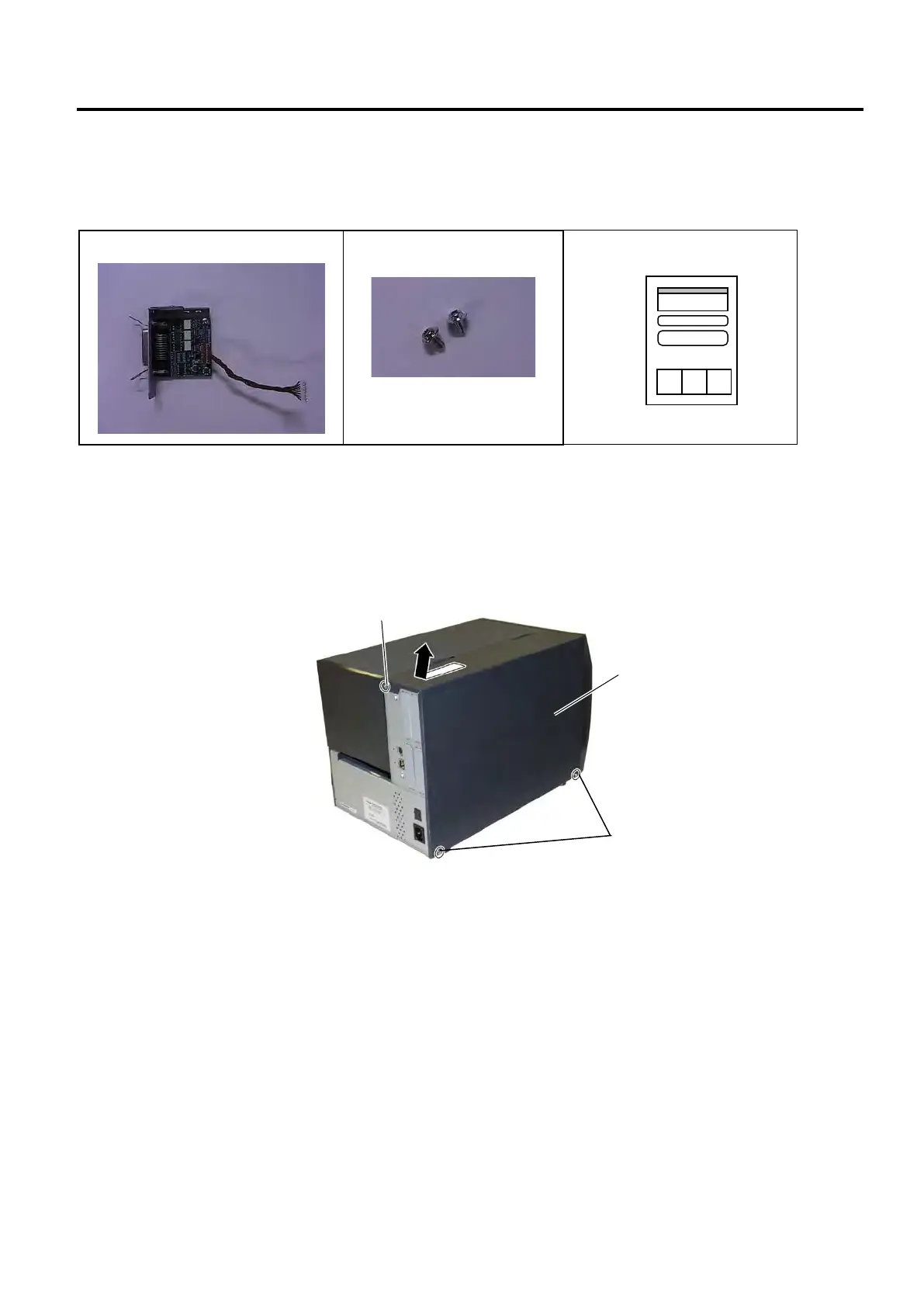

All the following parts are supplied with the kit. Make sure you have all items shown below.
Expansion I/O Board
M-3x6 Screw (2 pc.)
Installation Manual (1 copy)
1. Turn the printer power off and disconnect the Power Cord.
2. Remove the three B-4x5 screws from the Side Panel (L).
3. Slide the Side Panel (L) backward, and raise it to remove from the printer.
B-4x5 Screw
Side Panel (L)
B-4x5 Screw
