Toshiba B-EX4 SERIES Service Manual

6. ON LINE MODE EO18-33027
6. 7 RFID CALIBRATION
6-15
6.7 RFID CALIBRATION
Applicable model:
B-EX4T1-G/T-QM/CN with firmware version of C1.4 or later.
The supported RFID module and RFID tag types are as follows:
Module: B-EX700-RFID-U4-EU-R
Tag: The following tag type only (The others are unusable.)
• TSE Web (Supplier: SMARTRAC, Chip: NXP U-Code G2iL)
Tag name
Label pitch
(mm)
Label length
(mm)
Label width (mm)
Remarks
Left
Right

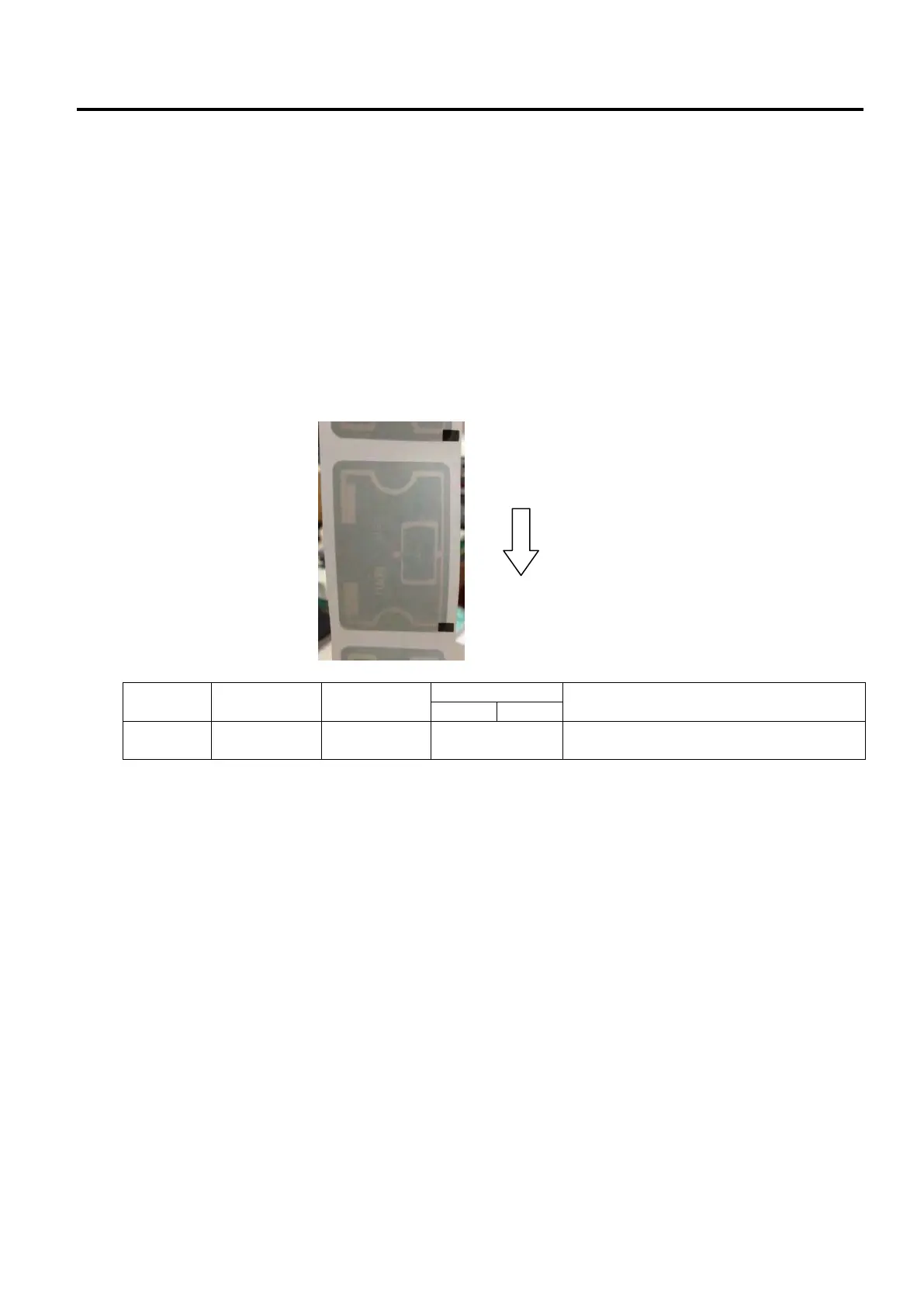

TSE Web 60 54 34
The dimensions on the left are actual
measurement values.
Feed direction

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
