Toshiba B-EX4 SERIES Service Manual

9. MAJOR UNIT REPLACEMENT EO18-33027
9.13 RIBBON END SENSOR
9-31

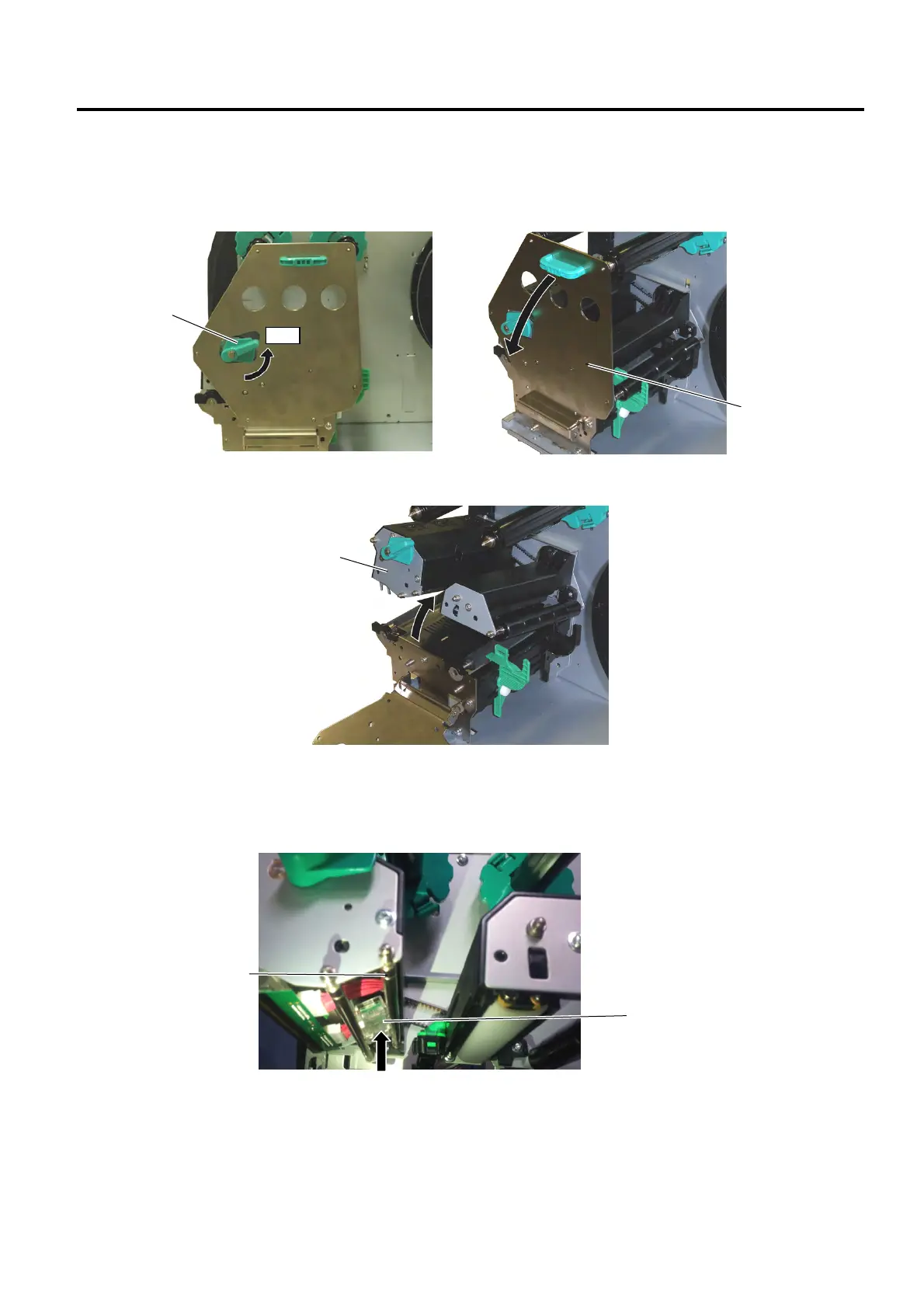

9.13 RIBBON END SENSOR
1) Open the top cover. (Refer to Section 3.1.)
2) Turn the head lock lever to Free position and open the ribbon shaft holder plate.
3) Open the print head block.
4) Push the Ribbon end sensor assembly upwards using your finger to remove it from the Ribbon
Guide Shaft.
Ribbon Shaft
Holder Plate
Head lock
Lever
Print Head Block
View from the lower ri
g
ht side
Free
Ribbon Guide Shaft
Ribbon End Sensor

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
