9. MAJOR UNIT REPLACEMENT EO18-33027
9.15 PAPER GUIDE ASSEMBLY
9-33
9.14 PAPER GUIDE ASSEMBLY

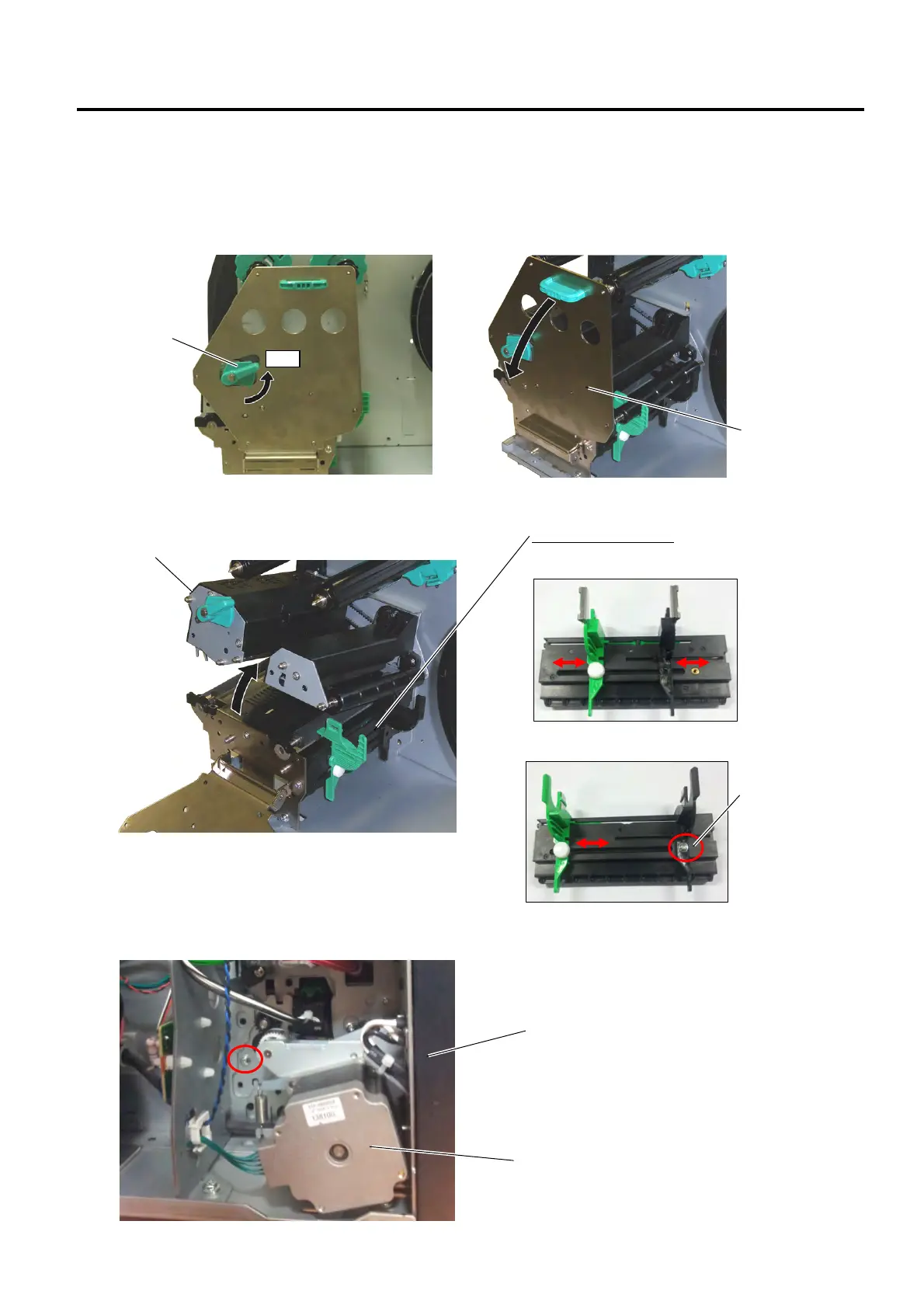

1) Remove the side panel (L). (Refer to Section 3.2.)
2) Open the top cover. (Refer to Section 3.1.)
3) Turn the head lock lever to Free position and open the ribbon shaft holder plate.
4) Open the print head block.
.
5) Go to the left side of the machine and remove the screw as indicated in the picture below.
Ribbon Shaft
Holder Plate
Head Lock
Lever
Print Head Block
Free
Paper Guide Assembly
Type 1 (Center Aligned)
Type 2 (Fixed)
Fixed (Screw)
Front panel cover
Stepping Motor Ass’y
To Next Page
