Toshiba B-EX4 SERIES Service Manual

9. MAJOR UNIT REPLACEMENT EO18-33027
(Revision date: AUG. 2016)
9.15 INTERFACE BOARD
9-35

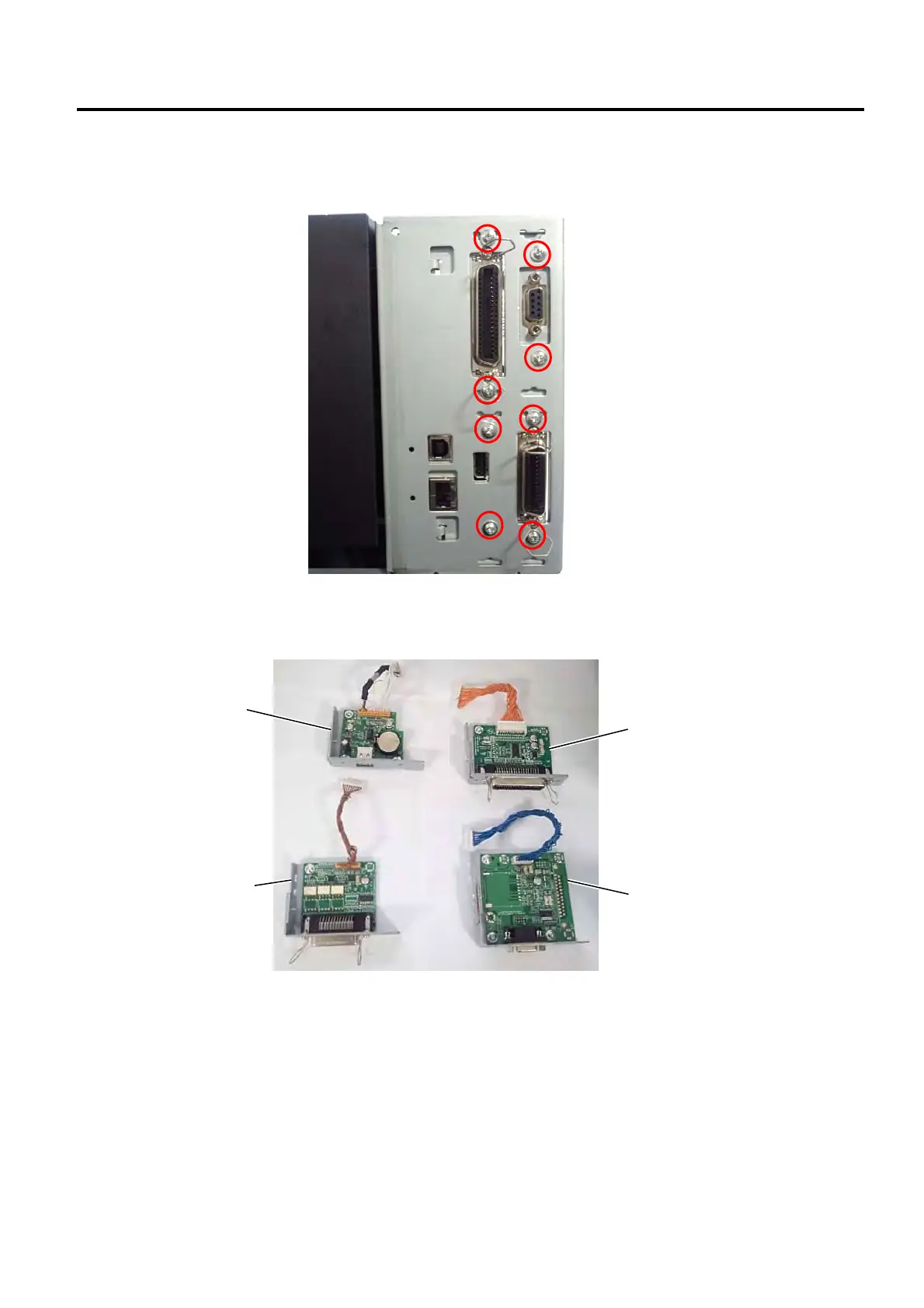

9.15 INTERFACE BOARD (For the T3 Series)
1) Remove the side panel (L). (Refer to Section 3.2.)
2) Remove the screws of the interface board to be detached.
2) Disconnect the connectors between the interface board and the Main PC board and then remove
the interface board.
NOTE: When the RTC board is replaced, change the battery life indication label attached to the back side of the
operation panel.
RTC Board
Extension I/O Board
Centronics Board
RS-232C Board

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
