Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.5 RTC/USB Host Interface Board (B-EX700-RTC-QM-R)
4-33
4.5 RTC/USB Host Interface Board (B-EX700-RTC-QM-R)

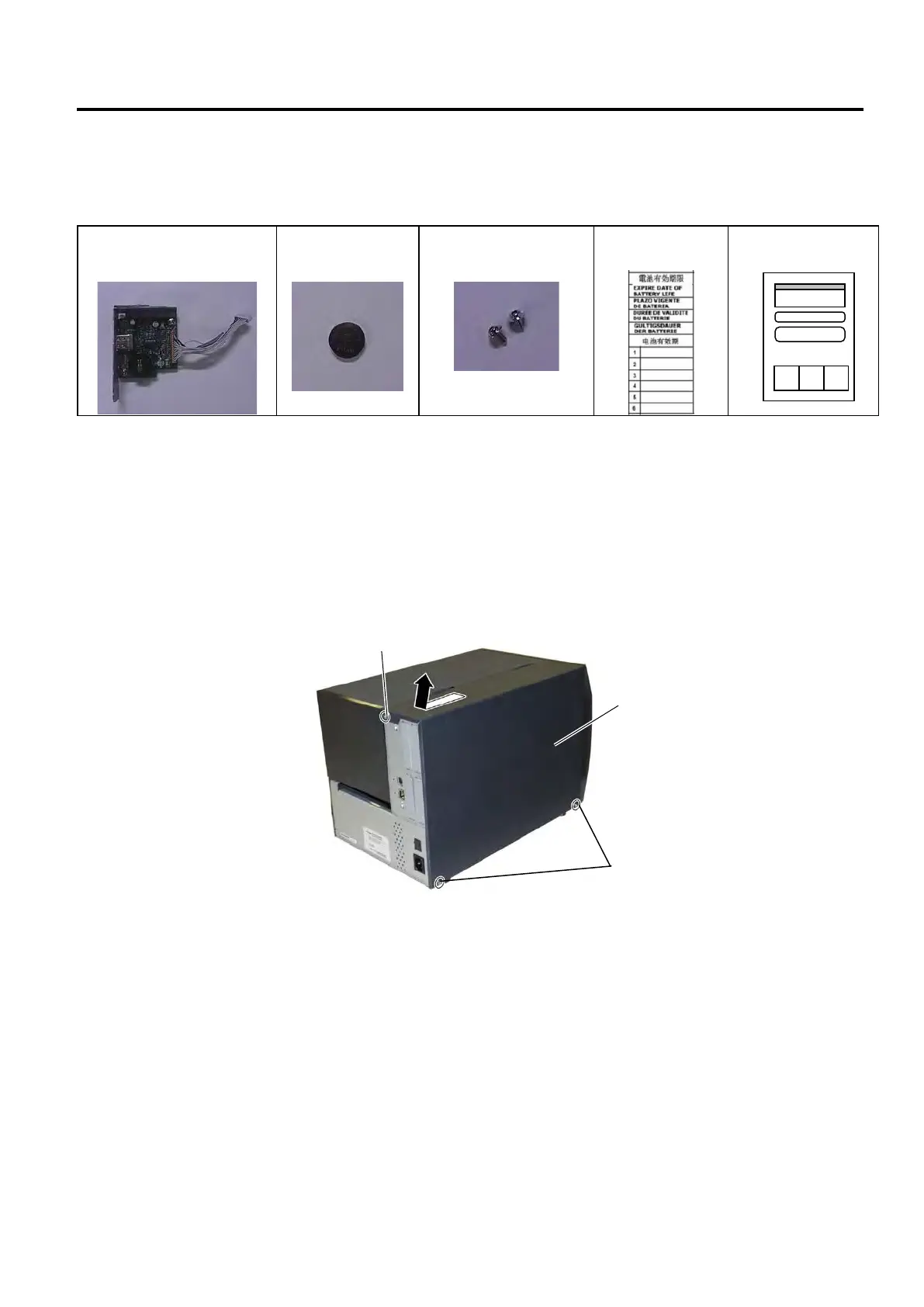

All the following parts are supplied with the kit. Make sure you have all items shown below.
RTC/USB host
interface board (1 pc.)
Battery (1 pc.)
(See Note below.)
M-3x6 Screw (2 pcs.)
Battery Label
(1 pc.)
Installation Manual
(1 copy)
NOTE: Perchlorate Material - special handling may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
--Note; This is applicable to California, U.S.A. only.
1. Turn the printer power off and disconnect the Power Cord.
2. Remove the three B-4x5 screws from the Side Panel (L).
3. Slide the Side Panel (L) backward, and raise it to remove from the printer.
B-4x5 Screw
Side Panel (L)
B-4x5 Screw

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
