Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.5 RTC/USB Host Interface Board (B-EX700-RTC-QM-R)
4-34

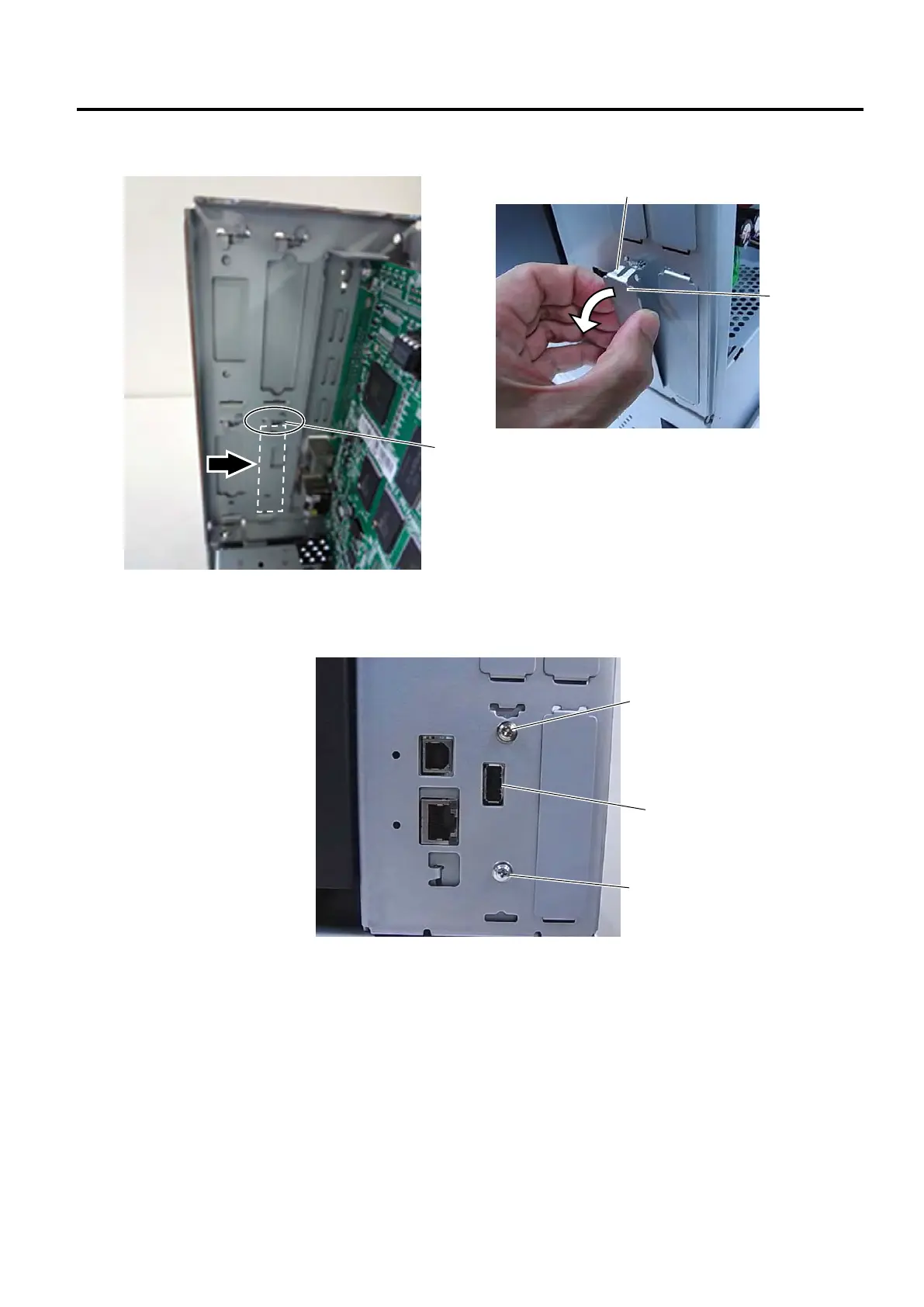

4. Unfold the upper tabs of the Blind Plate indicated by the arrow, then pull and remove the Blind Plate
from the printer back.
5. Fit the USB Host Connector of the RTC/USB Host Interface Board into the slot from the inside, and
secure it with the two M-3x6 screws from the outside, as shown below.
Blind Plate
Tab
Tab
USB Host Connector
M-3x6 Screw
M-3x6 Screw

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
