Toshiba B-EX4 SERIES Service Manual

3. NOTE FOR OPTIONAL EQUIPMENT INSTALLATION/MAJOR UNIT REPLACEMENT EO18-33027
/MAINTENANCE
3.4 REMOVING THE OPERATION PANEL
3- 5

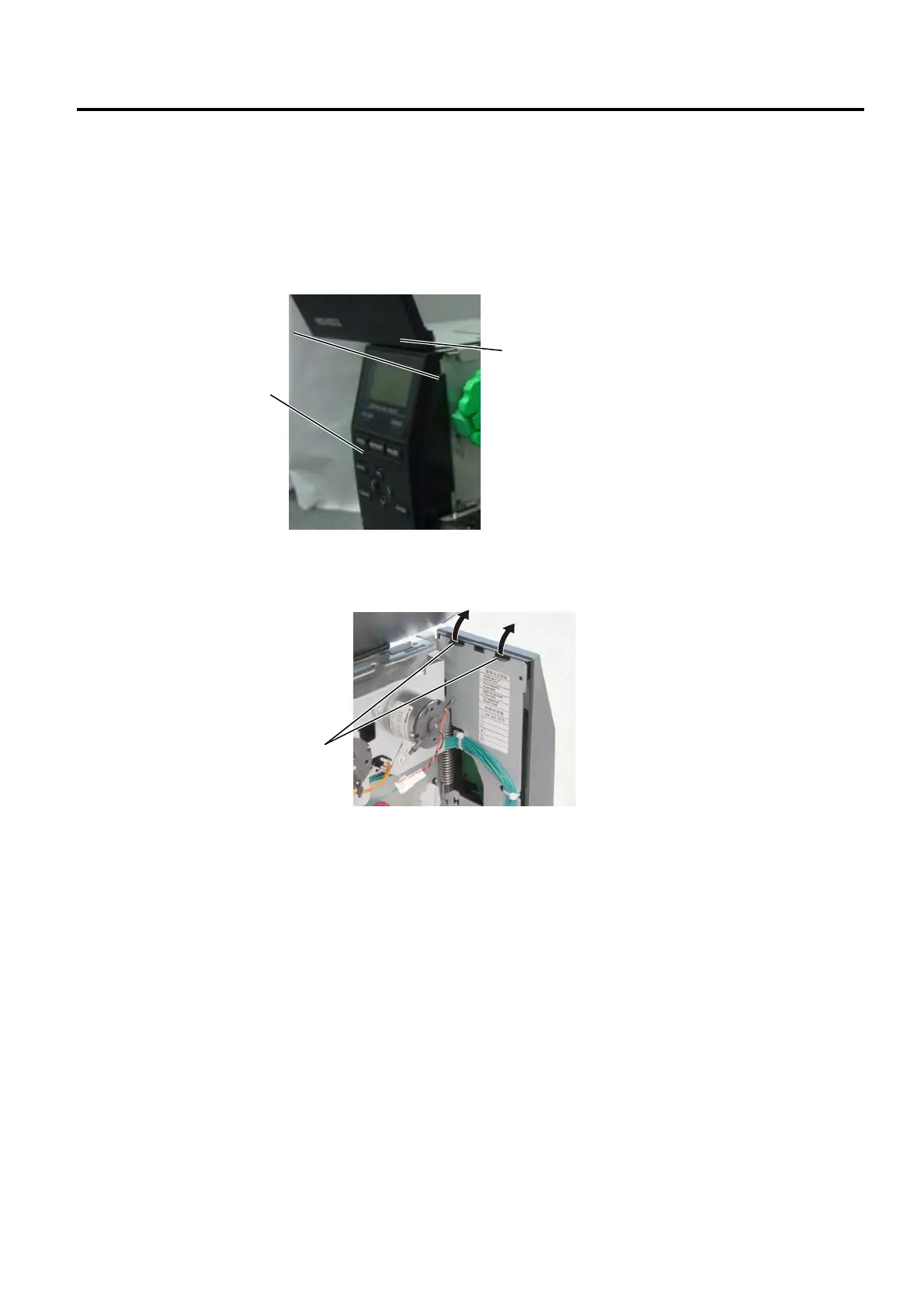

3.4 REMOVING THE OPERATION PANEL
1) Open the top cover. (Refer to section 3.1.)
2) Remove the side panel (L) from the printer. (Refer to section 3.2.)
3) Fully open the top cover, otherwise the operation panel ass’y is stuck on the tab and cannot be
removed from the printer.
4) Push the operation panel ass’y out through the top hooks direction.
Top Cover
Operation Panel Ass’y
Tab
Hooks

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
