Toshiba B-EX4 SERIES Service Manual

3. NOTE FOR OPTIONAL EQUIPMENT INSTALLATION/MAJOR UNIT REPLACEMENT EO18-33027
/MAINTENANCE
3.3 OPENING/CLOSING THE PRINTER BLOCK
3-4

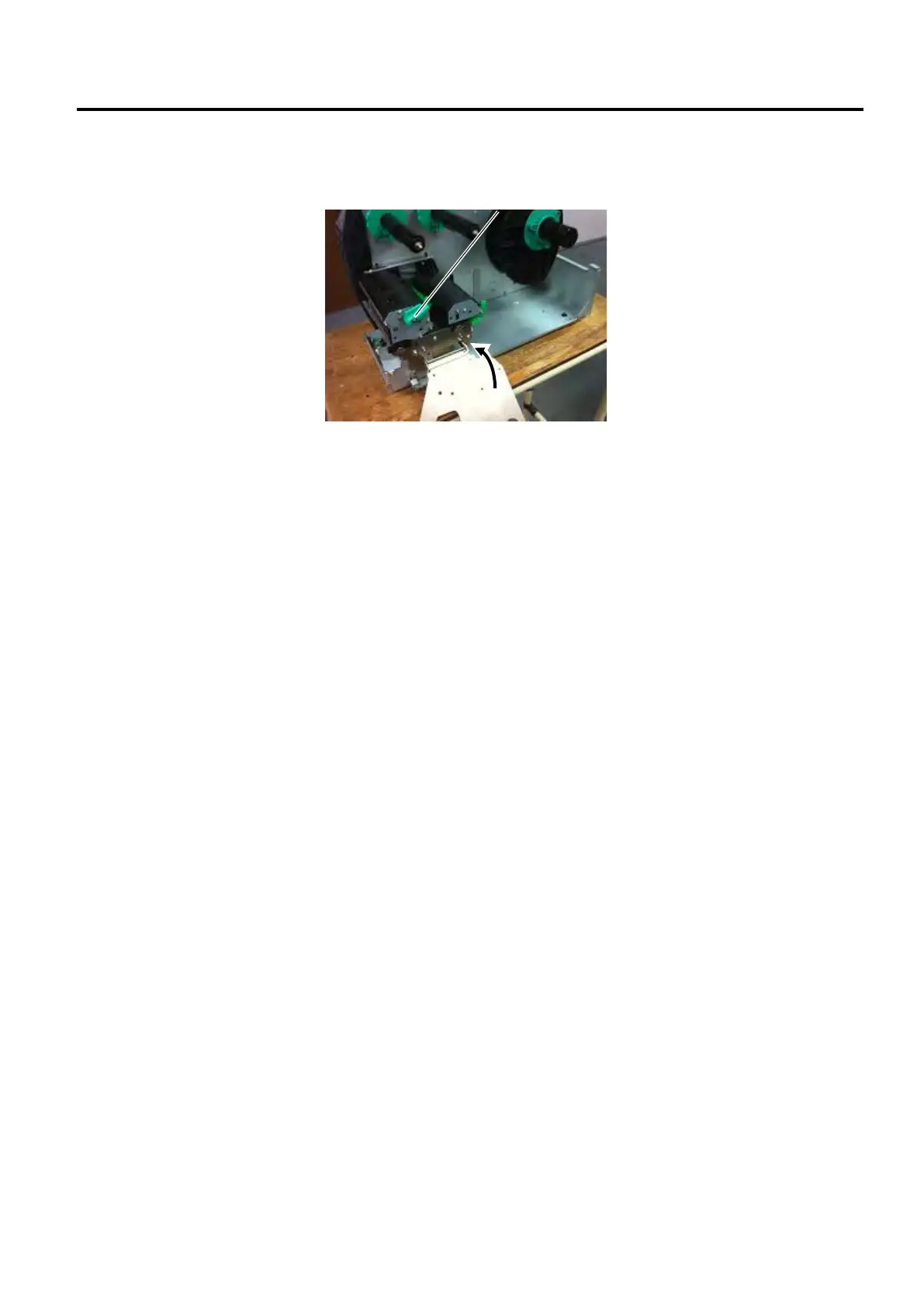

4) Raise the print head block until it stops.
NOTE: DO NOT excessively push down the print head block to close it. Dosing so may cause a
failure of the print head block or damage to the print head.
Print Head Block

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
