Toshiba B-EX4 SERIES Service Manual

9. MAJOR UNIT REPLACEMENT EO18-33027
(Revision date: AUG. 2016)
9.11 MEDIA SENSOR ASS’Y
9-27

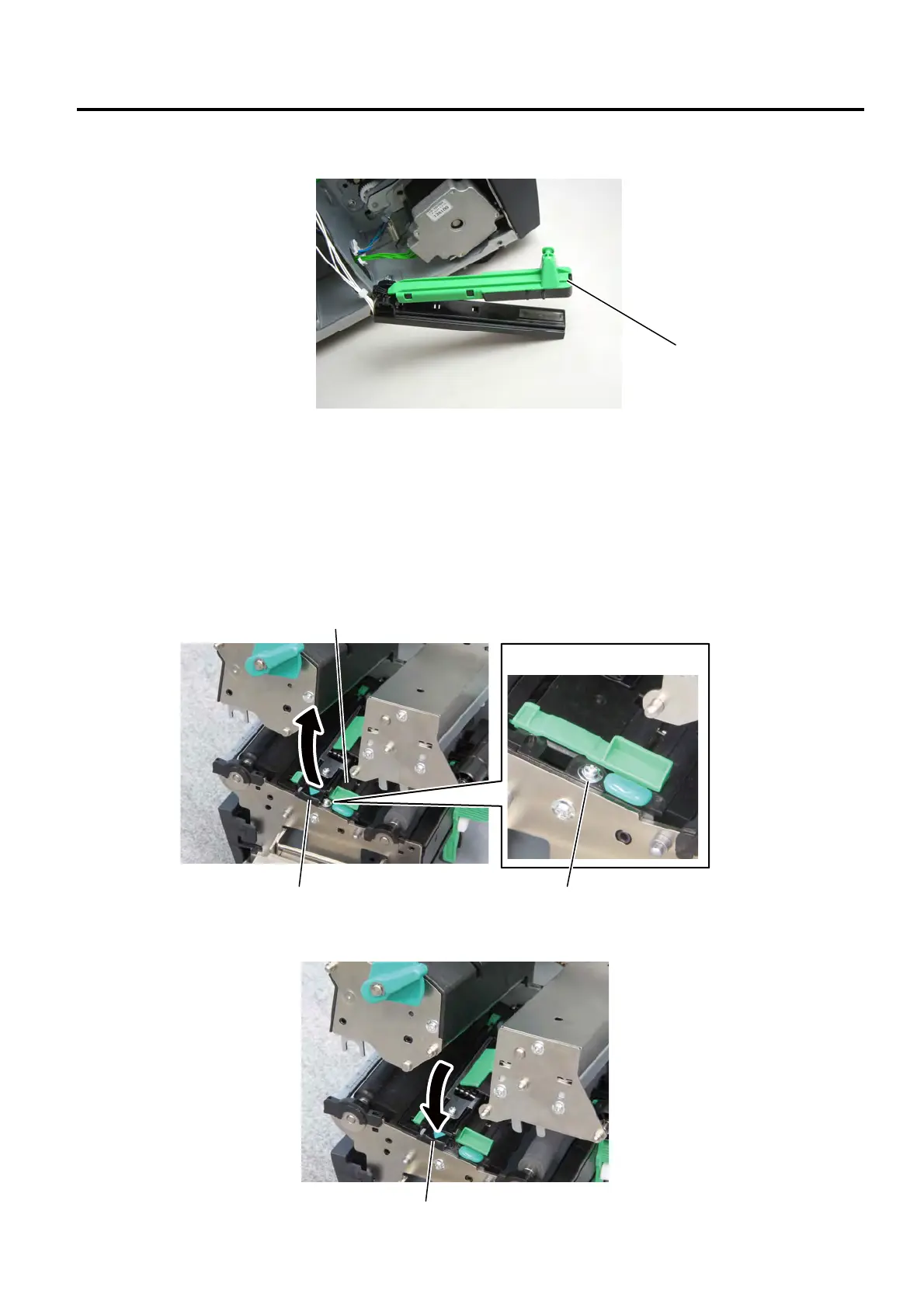

6) Replace the media sensor ass’y with a new one, then reassemble in the reverse order of removal.
NOTE: After replacing the media sensor ass’y, refer to Section 5.7 to adjust the sensor level for the media to be
used.
9.11.2 Media Sensor Ass’y (For the T3 Series)
1) Remove the side panel (L). (Refer to Section 3.2.)
2) Open the top cover. (Refer to Section 3.1.)
3) Turn the head lock lever to the Free position to open the ribbon shaft holder plate.
4) Lift the lever and then remove the screw used for fixing the media sensor (lower).
5) Return the lever to its original position.
Media Sensor Ass’y
SMW-3x8
Lever
Lever
Media Sensor (Lower)

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
