Toshiba B-EX4 SERIES Service Manual

3. NOTE FOR OPTIONAL EQUIPMENT INSTALLATION/MAJOR UNIT REPLACEMENT EO18-33027
/MAINTENANCE

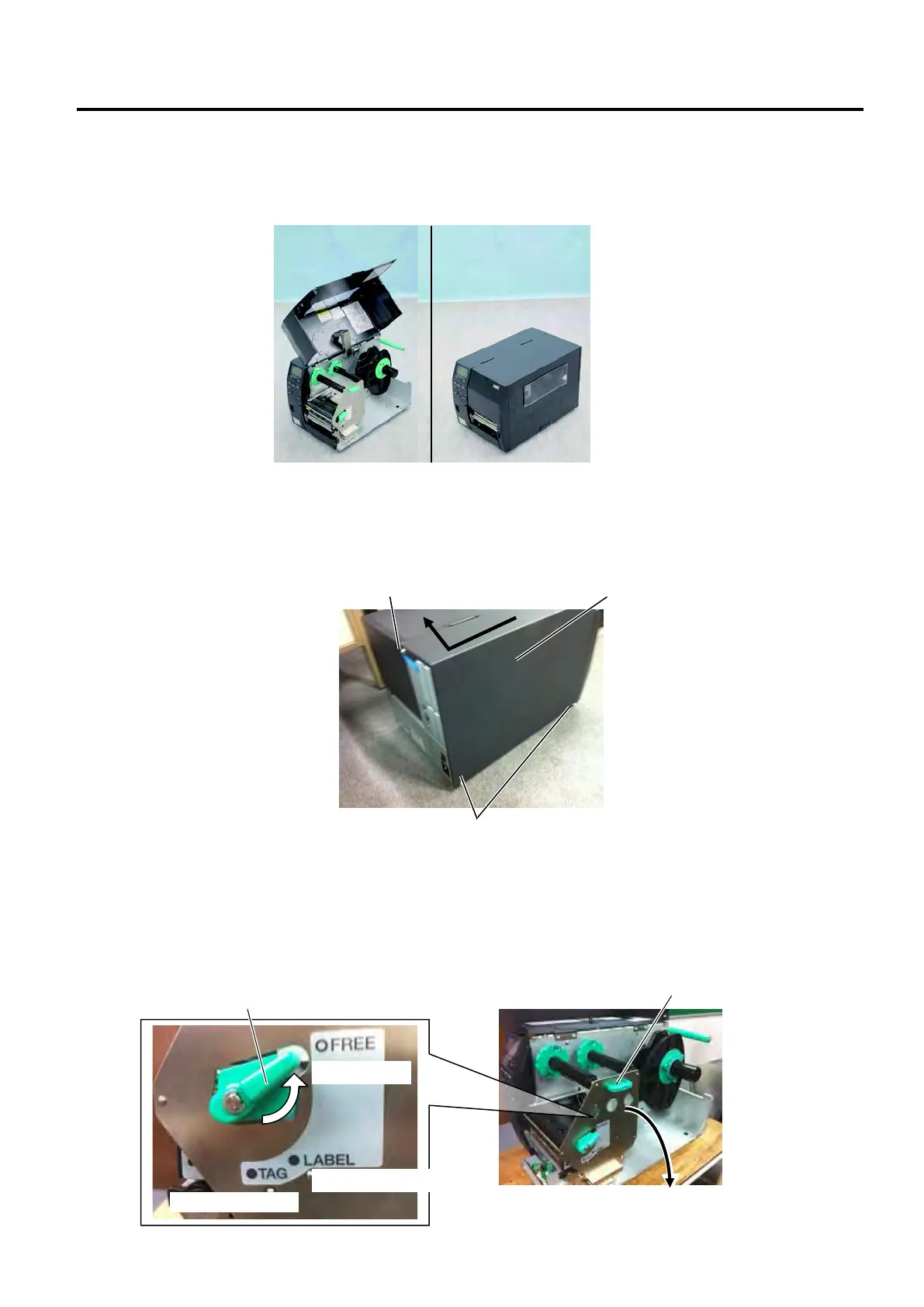

3.1 OPENING/CLOSING THE TOP COVER
3-3
3.1 OPENING/CLOSING THE TOP COVER
When opening the top cover, fully open the top cover to the open position.
When closing, softly close it to the close position.
3.2 REMOVING THE SIDE PANEL (L)
Remove the three M3x6 screws from the side panel (L). Move the side panel (L) to the back and push up it
to remove.
3.3 OPENING/CLOSING THE PRINTER BLOCK
1) Open the top cover.
2) Turn the head lever counterclockwise to Free position.
3) Open the ribbon shaft holder plate.
Open Position
Close Position
M3x6 Screw
M3x6 Screw
Side Panel (L)
Head Lever
Lock position (Label)
Lock position (Tag)
Free Position
Ribbon Shaft Holder Plate

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
