10. RFID ANALYZE TOOL EO18-33027

10.4 Operating Procedure

10- 13

10.4 Operating Procedure

1. Connect the printer to the PC with the serial interface cable or LAN cable.

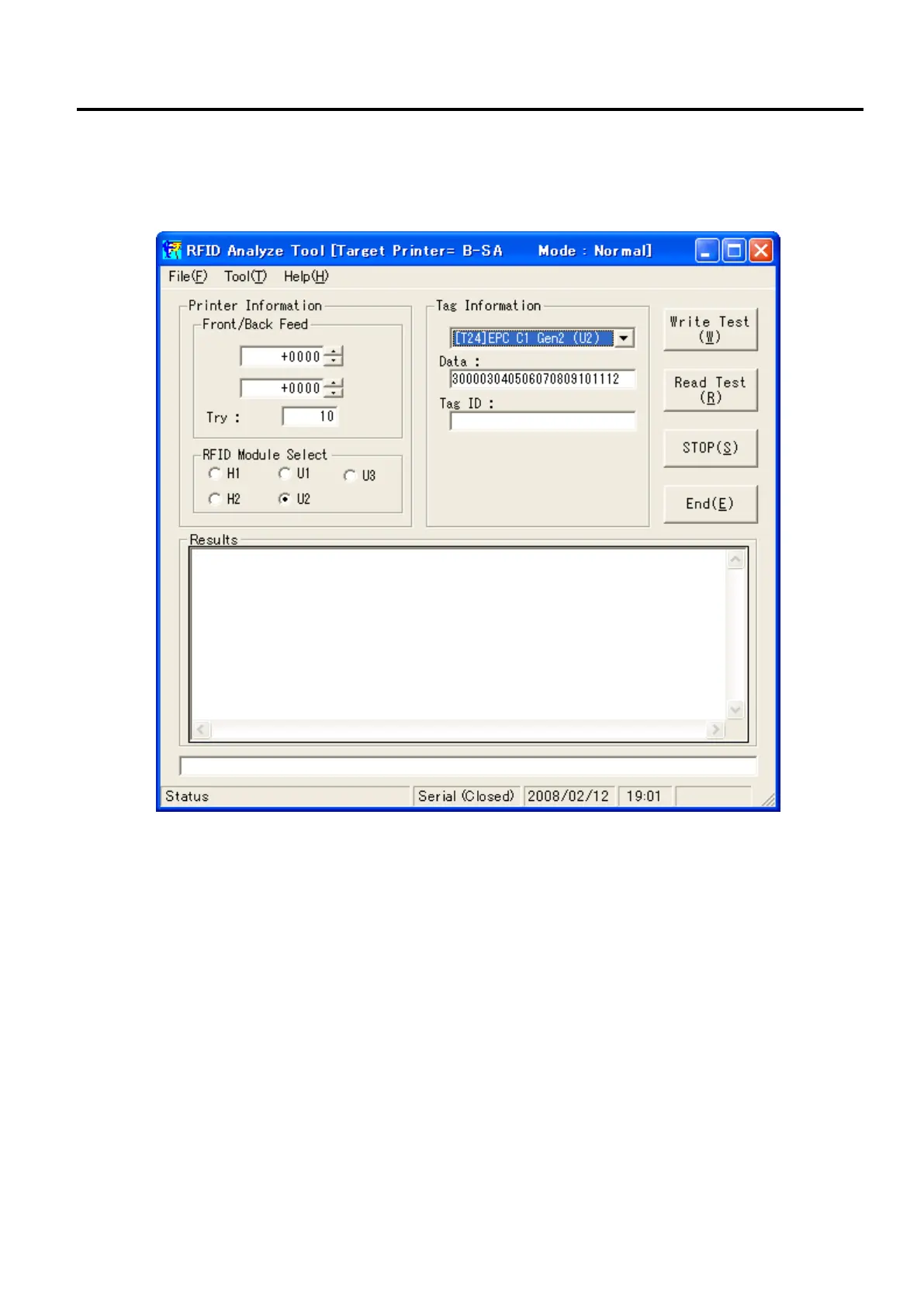

2. Start the “B-SX RFID Analyze Tool” application.
