Toshiba B-EX4 SERIES Service Manual

9. MAJOR UNIT REPLACEMENT EO18-33027
9.8 PLATEN
9-18

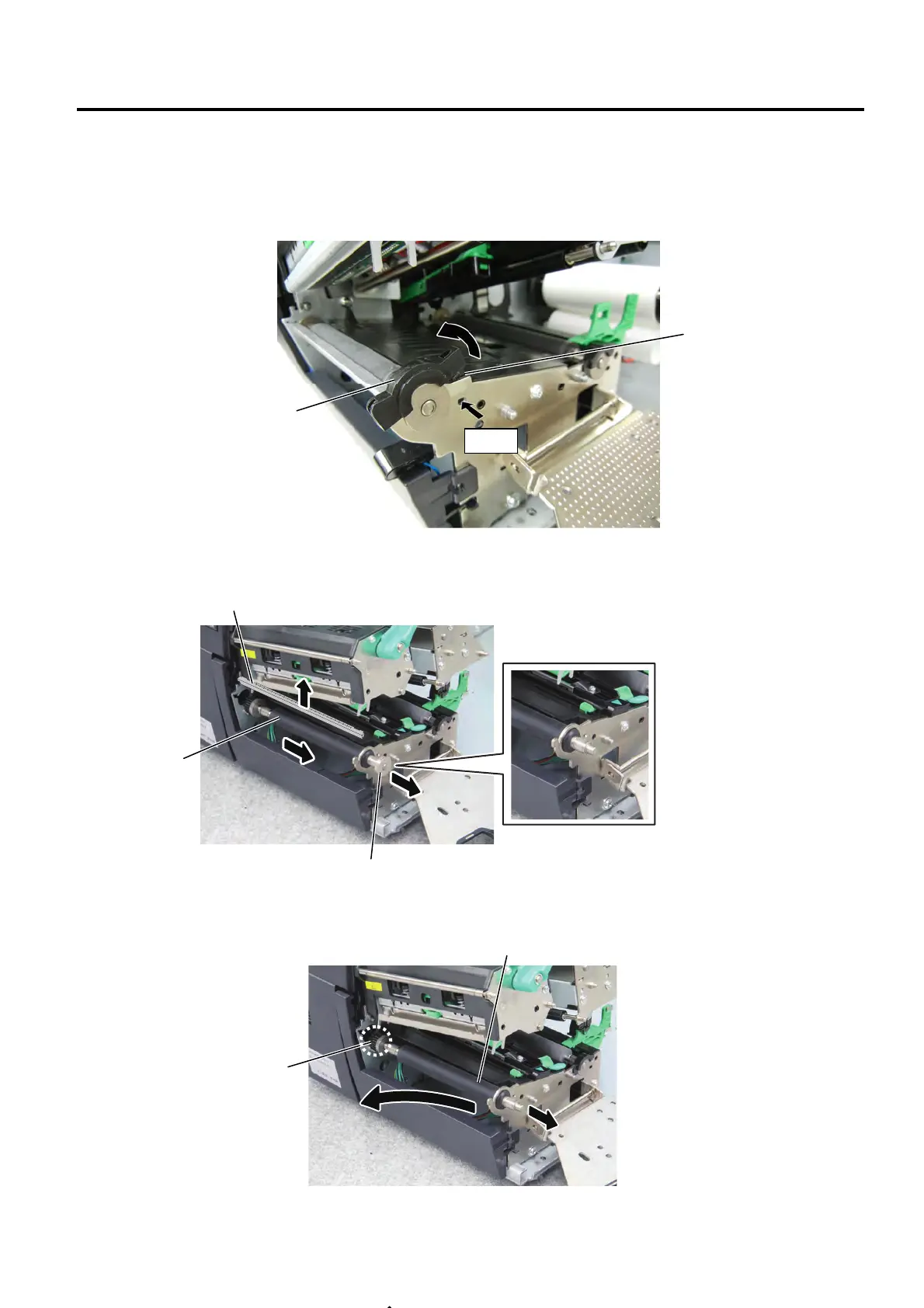

9.8 PLATEN
1) Open the top cover. (Refer to Section 3.1.)
2) Open the print head block.
3) Push the hook through the rectangle hole with a fine tool to remove the platen holder cover.
4) Remove the strip plate. Slide the platen ass’y to the right to remove the platen holder.
5) Slide the platen ass’y to the right until the entire pulley appears.
6) Pull the platen in the direction indicated by the arrow to remove it from the printer.
Platen Holder Cover
Hook
Push
Platen Holde
r
Strip Plate
Pulle
y
Platen
Platen

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
