Toshiba B-EX4 SERIES Service Manual

9. MAJOR UNIT REPLACEMENT EO18-33027
(Revised on AUG. 2016)
9.3 OPERATION PANEL ASS’Y
9-6
9.3 OPERATION PANEL ASS’Y
1) Remove the side panel (L). (Refer to Section 3.2.)
2) Remove the operation panel ass’y. (Refer to Section 3.4.)
3) Replace the operation panel ass’y with a new one, then reassemble in the reverse order of
removal.

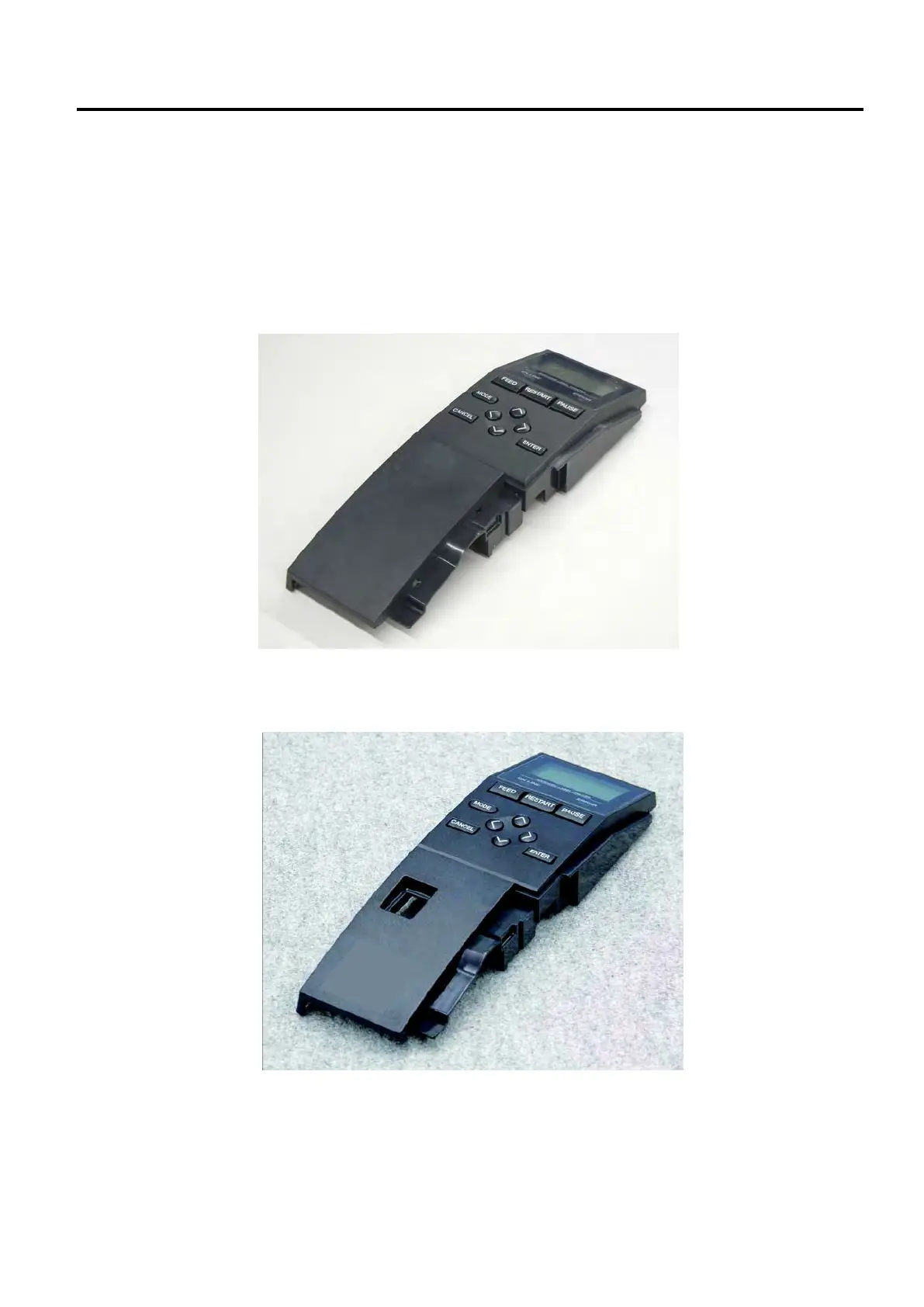

[T1/T2 series]
[T3 series]
