10.3 Application Functions

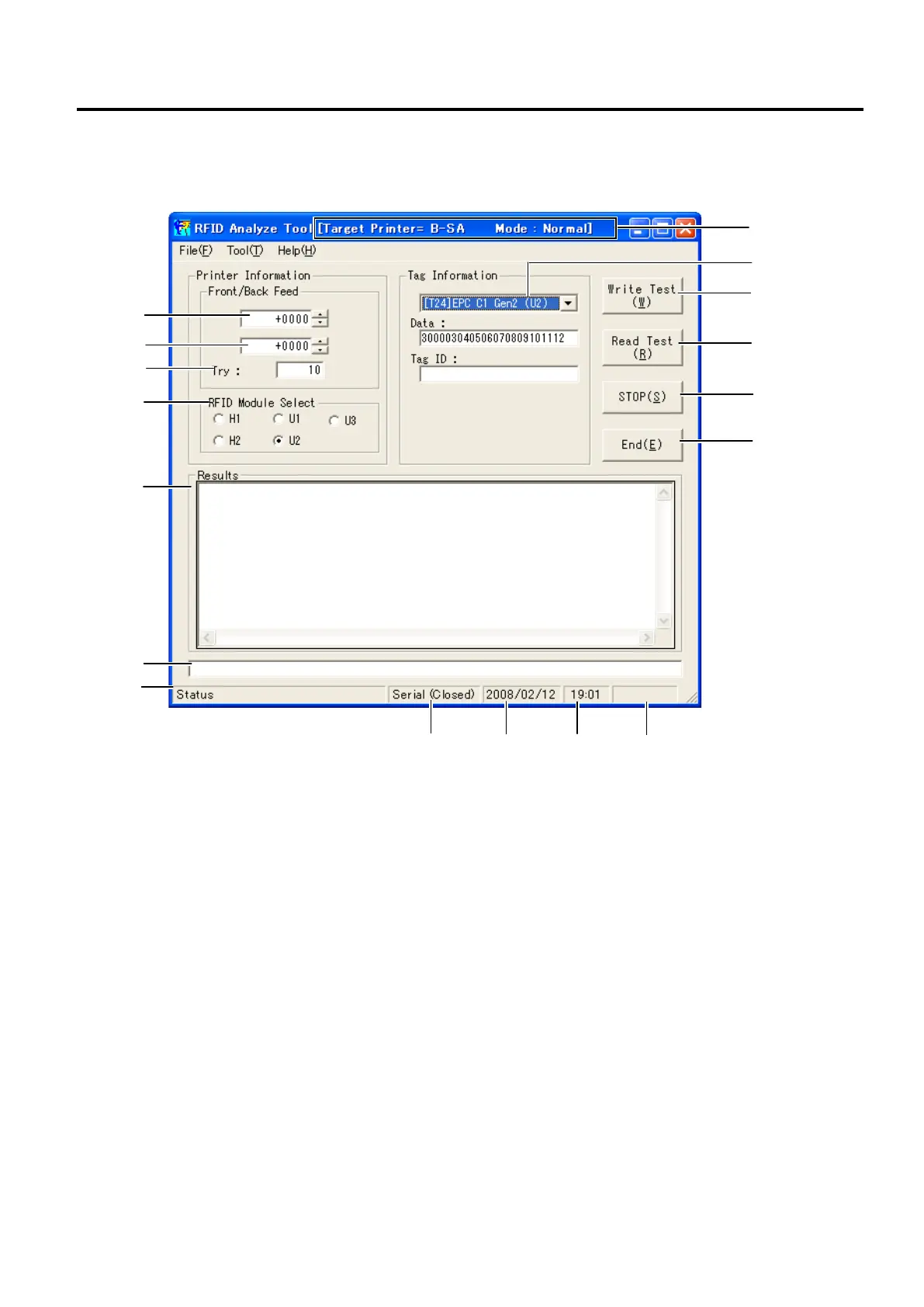

10.3.1 Main Menu
(1) Front Feed amount: +9999 ~ -9999 (6) Write Test Button
(2) Back Feed amount: +9999 ~ -9999 (7) Read Test Button
(3) Number of test tries: 999 ~ 0 (8) Test Stop Button
(4) RFID module select (9) Application End Button
H1: B-EX700-RFID-H1-QM-R (10) Test Results Display Area
H2: B-SX704-RFID-H2-R (Japanese model only) (11) Response Data Display Area
U2: B-SX704-RFID-U2-EU/AU/US/CN-R, (12) Test Status Display Area
B-EX704-RFID-U2-EU/US-R (13) Date
(5) Tag type select (14) Time
H1: C220 (15) Capture Display Area
I-Code (16) Communication Status Display Area
ISO15693 (17) Printer Model and Test Mode Display Area
Tag it
C320
H2: ISO15693
U2: EPC C1 Gen2
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
