Toshiba B-EX4 SERIES Service Manual

5. SYSTEM MODE EO18-33027
5.3 DIAG
5-29

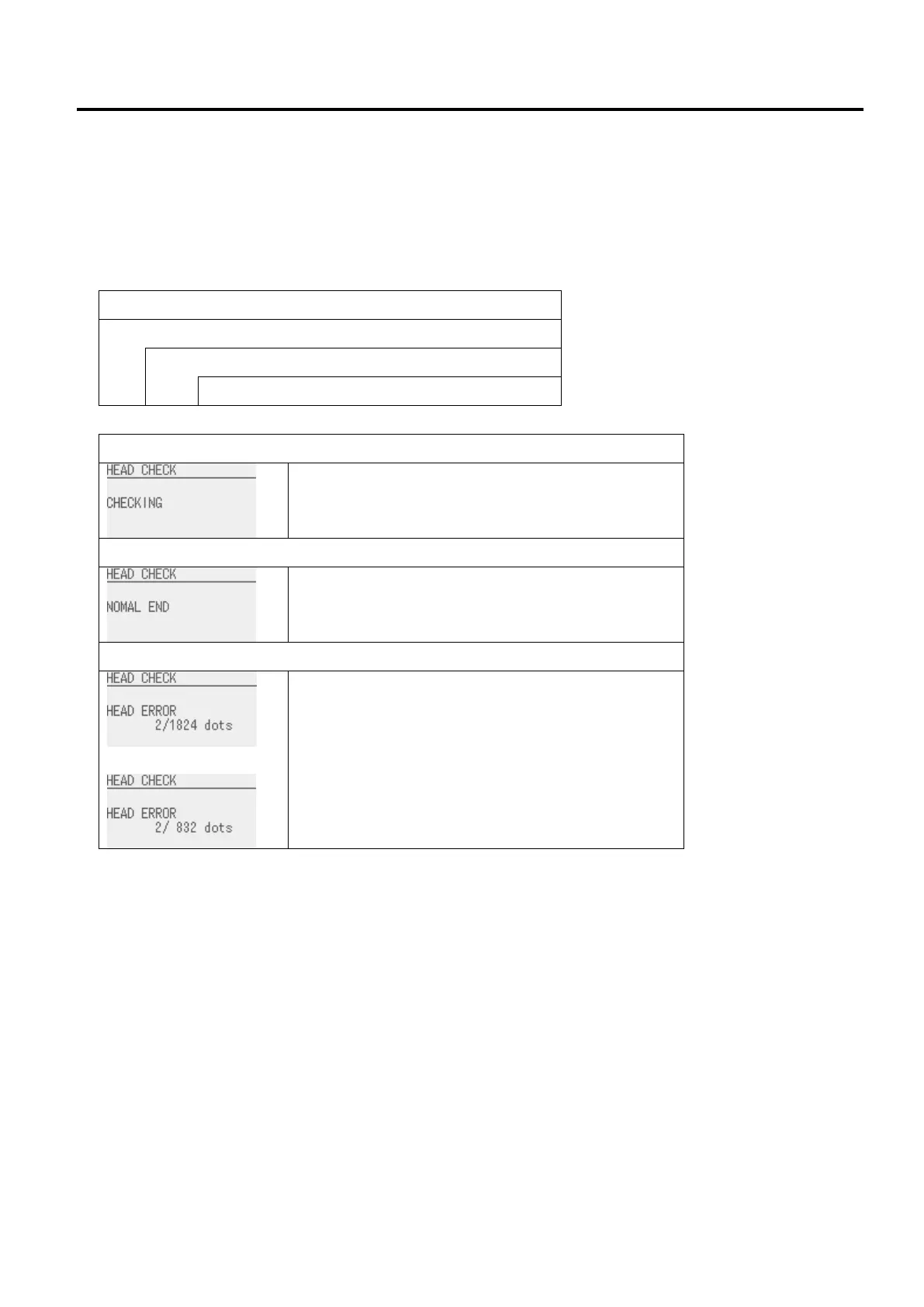

5.3.3 HEAD CHECK
The print head check procedure is the same as that for the maintenance counter data. 5.3.1
MAINTENANCE CONT.
The following table shows the menu structure from the top menu of the system mode to HEAD CHECK.
MENU ITEM
SYSTEM MODE
<1>DIAG.
HEAD CHECK
While checking
Displays “CHECKING”.
In the case of normal end
Displays “NORMAL END”
When broken dots are detected.
The ONLINE LED turns off and the ERROR LED
turns on.
Displays the number of broken dots in the format of
the number of broken dots out of the total number of
dots.
The total number of dots is right-aligned.

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
