Toshiba B-EX4 SERIES Service Manual

10. RFID ANALYZE TOOL EO18-33027
10.3 Application Functions
10- 7

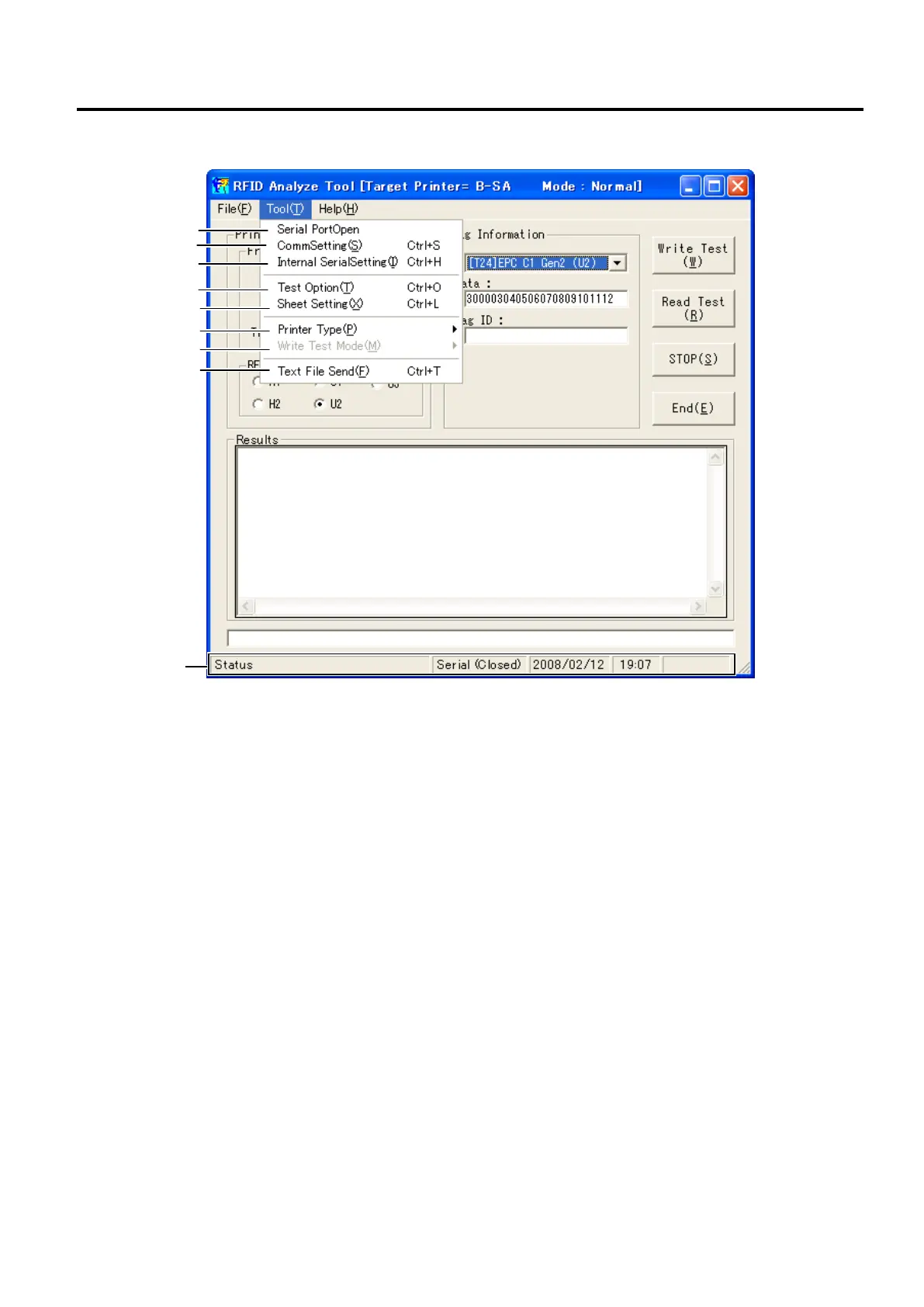

10.3.3 Tool Menu
(1) Port Open
Opens/closes a port to communicate with the printer.
•
“Serial PortOpen”: The printer port is ready to be opened. After the port is opened, “Serial PortClose”
will be displayed in the Tool menu and “Serial (Open)” will be displayed on the status bar.
• “Serial PortClose”: The printer port is ready to be closed. After the port is closed, “Serial PortOpen”
will be displayed in the Tool menu and “Serial (Close) will be displayed on the status bar
• “LAN Connect”: The LAN port is ready to be opened. After the LAN port is opened, “LAN DisConnect”
will be displayed in the Tool menu and “7:Connect” will be displayed on the status bar.
• “LAN DisConnect”: The LAN port is ready to be closed. After the LAN port is closed, “LAN Connect”
will be displayed in the Tool menu and “0:Close” will be displayed on the status bar.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
Status Bar

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
