Toshiba B-EX4 SERIES Service Manual

6. ON LINE MODE EO18-33027
6. 4 ONLINE MODE LCD DISPLAY
6-5
whether or not displaying the ribbon near end message is enabled in system mode.
A ribbon near end is detected depending on diameter of the unused ribbon. The diameter of 38mm
is equivalent to 30-meter ribbon and the diameter of 43 mm is equivalent to 70-meter ribbon,
respectively.

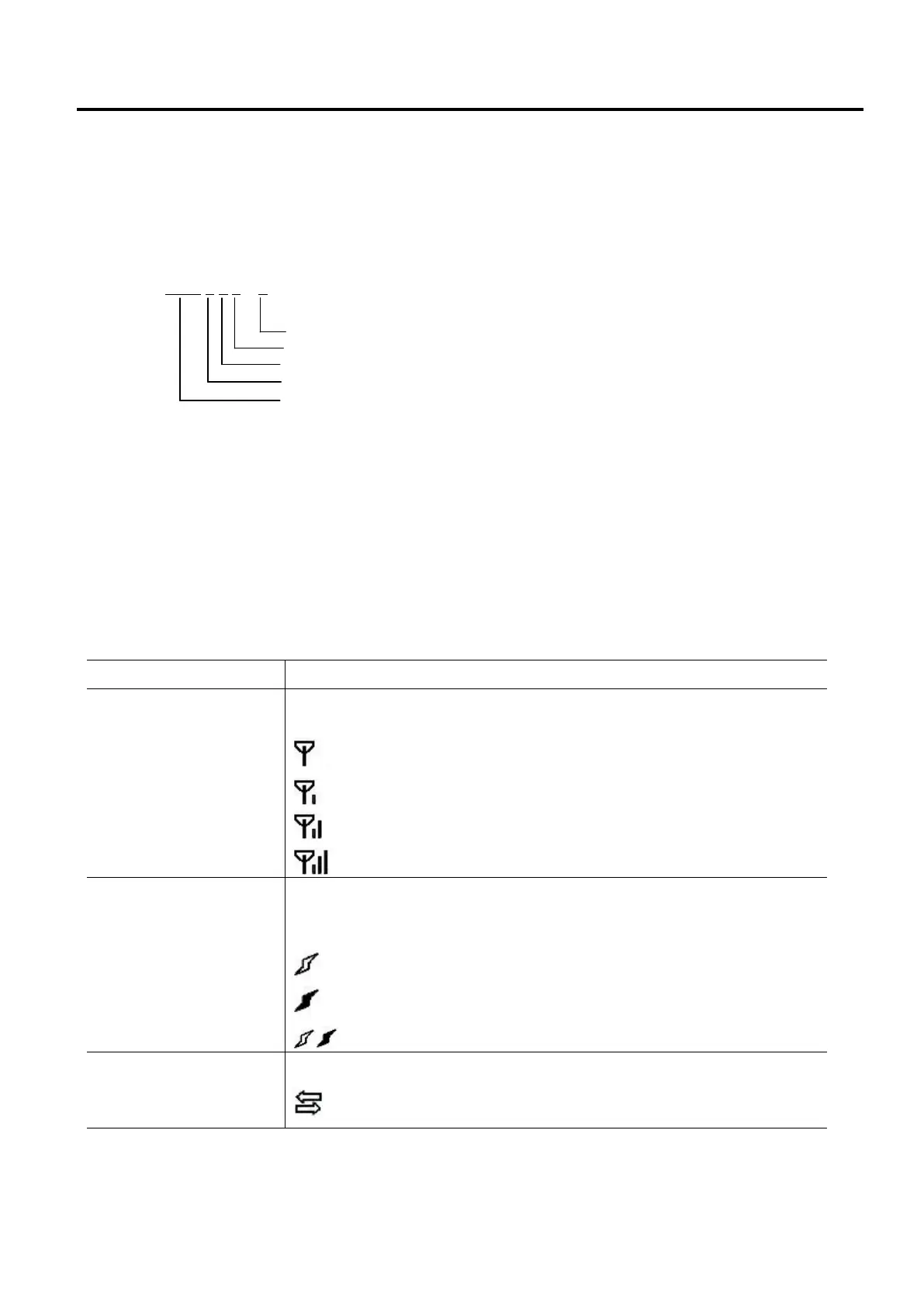

(*5) The model name description
B-EX 4 T 1 – T
Head resolution G: 203dpi, T: 300/305dpi, H: 600dpi
Type 1: Type1, 2: Type2
Print method T: Thermal transfer/Direct thermal, D: Direct thermal
Print width 4: 4” width, 6: 6” width
Series model
(*6) The ribbon near end message may be displayed on this line. The condition for display is the same as
*4.
6.4.2 Icon
Five kinds of icon are displayed in the bottom line of the online mode display.
These icons are displayed only in the online mode display.
Icon
Explanation
Wireless LAN icon
 Displayed and used when the wireless LAN module is mounted.

The graph shows the strength of radio wave.
Graph 0: Outside the communication range
Graph 1: Strength of radio wave is weak.
Graph 2: Strength of radio wave is middle
Graph 3: Strength of radio wave is strong
Link icon
 Displayed and used when the wireless LAN module is mounted.
 Displayed while the printer is communicating by wireless LAN.

Blinks while roaming.
OFF: No connection
ON: Connecting to an access point
Blink: Roaming (*4)
Data transmission icon
 Appears when a print job is present.
ON: Print job is present.

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
