Toshiba B-EX4 SERIES Service Manual

10. RFID ANALYZE TOOL EO18-33027
10.3 Application Functions
10- 4
10.3.2 File Menu

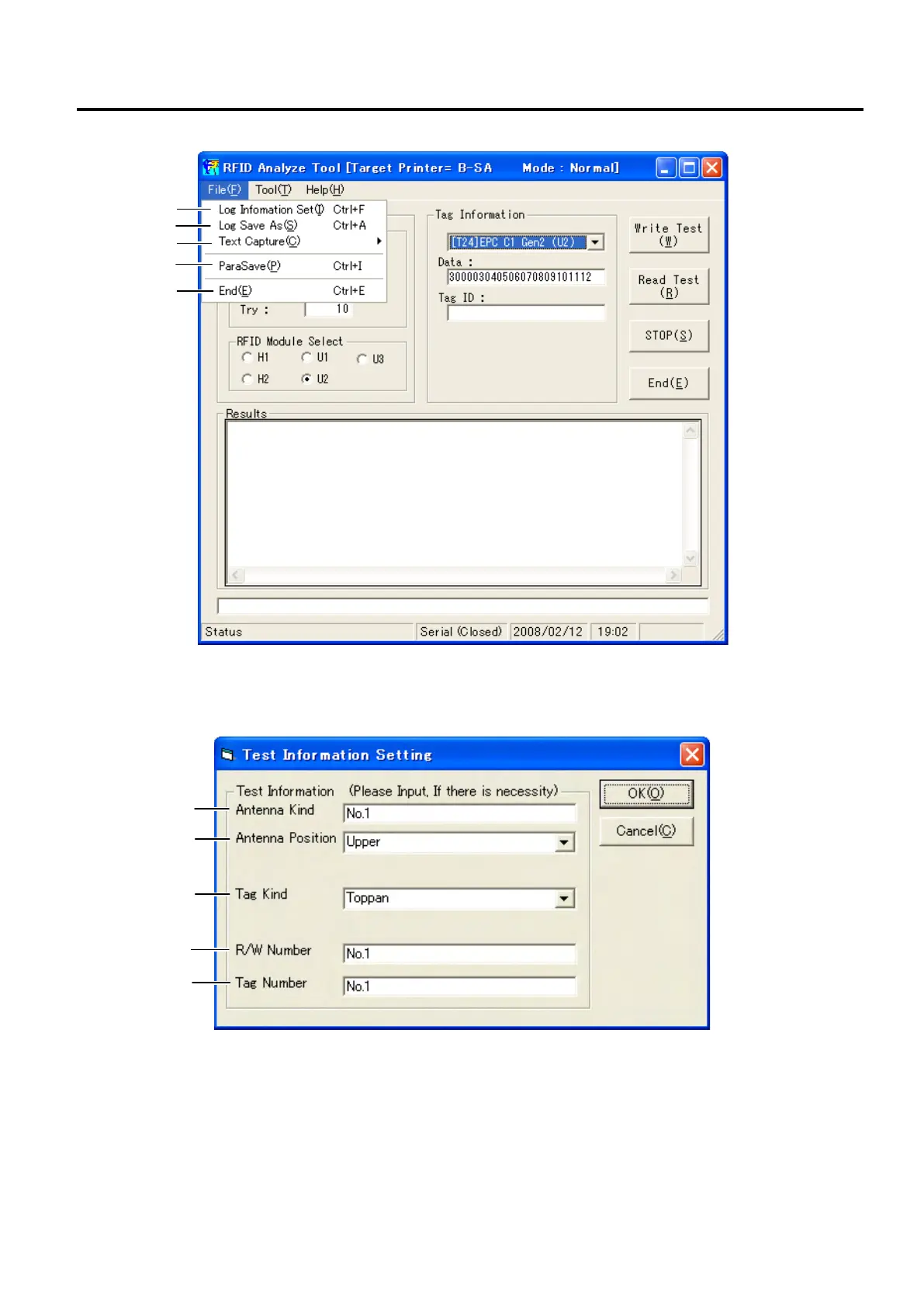

(1) Log Information Set
Displays the Test Information Setting screen shown below. Make necessary settings and click on
the “OK” button.
1) Antenna Kind Information
2) Antenna Position: “Upper”, “Lower”, “In addition to this”
3) Tag Kind Information: “Toppan”, “OMRON”, “Rafsec”, “Impinj”, “In addition to this”
4) R/W Number
5) Tag Number
When a write/read test is executed log information is shown in the “Results” box of the RFID
Analyze Tool screen. Log information for each test is saved in a text or CSV file.
(1)
(2)
(3)
(4)
(5)
1)
2)
3)
4)
5)

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
