Toshiba B-EX4 SERIES Service Manual

6. ON LINE MODE EO18-33027
6. 4 ONLINE MODE LCD DISPLAY
6-7

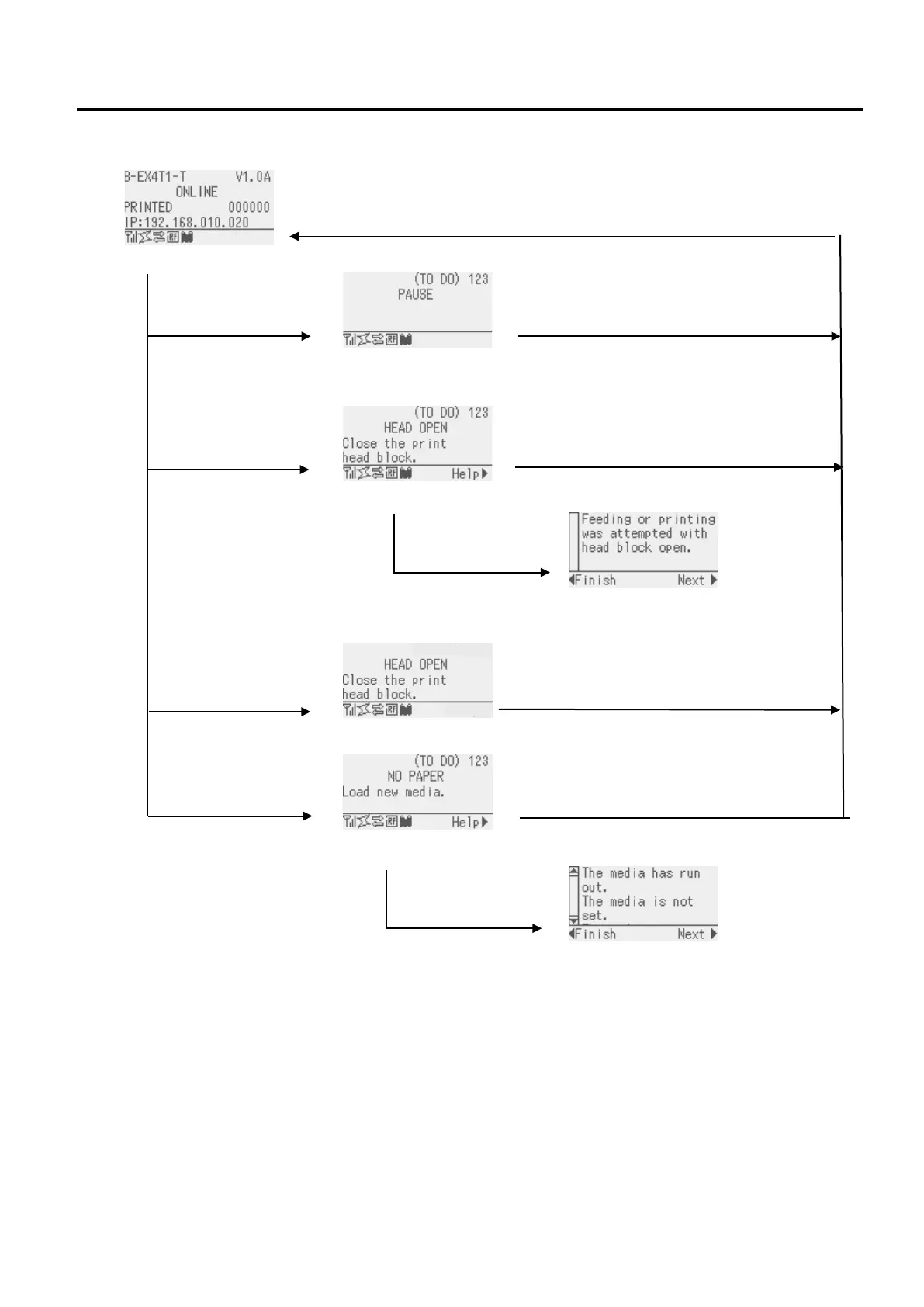

6.4.3 Online Mode Display Transition, Operation example
Idling or normal issuing
Printing is stopped
Help guide is displayed.
Help guide message for head open
(*1)
Printing is stopped and Help
guide is displayed.
Help message for NO PAPER (*1)
(*1) Refer “HELP DISPLAY TRANSITION, OPERATION EXAMPLE” for help display.
If the print head is
opened while printing:
If an error occurs
while printing:
When [PAUSE] key is
pressed while printing:
When [RESTART] key is pressed, the
printer resumes printing if there is
remaining data
Close the print head.
Load media.
When [RESTART] key is pressed, the
printer resumes printing if there is
remaining data.
Press [RIGHT] key.
Press [RIGHT] key.
If the print head is
opened while idling:
Close the print head.

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
